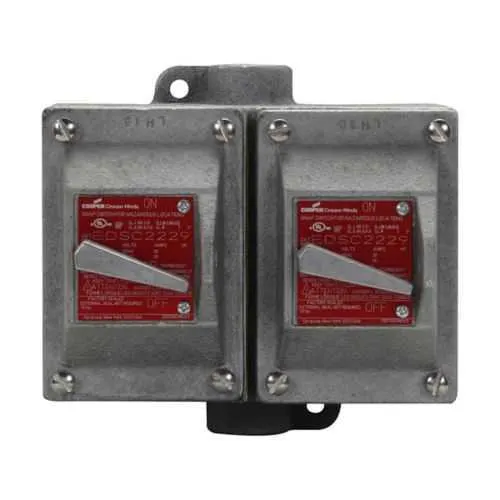

Eaton Crouse-Hinds EDSC2229 Switch Station - Hazardous

Part Number: EDSC2229
EDSC2229
Manufacturer
Eaton Crouse-Hinds
Part number
EDSC2229
Category

Quick Summary

The EDSC2229 snap switch control station provides rugged, two-gang control for hazardous-location electrical panels in industrial facilities. Operators often struggle with unsealed enclosures and unreliable switches that fail in harsh environments, causing costly downtime. It carries NEC/CEC Hazardous/Classified Locations approvals, including Class I, Division 1 and 2, Class II, Division 1 and 2, Class III, with NEMA ratings 3, 7, and 9. Designed for through-feed wiring in 120–277V systems with two 3/4 in hubs, it streamlines installation and supports compliant, safer electrical protection and control.

Product Information

Extended Description

EDSC2229 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With two 3/4" hubs, Feraloy iron alloy, 2, Two-gang, Single-pole, 120-277V, Factory sealed, Through feed, Single-pole, 3/4", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDSC2229
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
7.19 in
Product Weight
16.8 lb
UPC
782274765723
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
3/4"
Number Of Poles
Single-pole
Switch function
Single-pole
Number of gangs
Two-gang
Style
Through feed
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With two 3/4" hubs
Number of devices
2
Primary voltage range
120-277V
Material
Feraloy iron alloy
Special features
Factory sealed
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDSC2229
Two-gang, two-device design with 3/4" hubs reduces panel footprint and wiring complexity, cutting install time and potential wiring errors in hazardous environments. This feature translates to measurable savings in labor costs and faster commissioning of critical equipment in plants where space is at a premium. The 120–277V, 20A rating supports a wide range of control circuits, enabling a single-stock solution for motors, sensors, and actuators while reducing part variety. Feraloy iron alloy construction with a factory-sealed enclosure delivers robust protection against dust, moisture, and corrosive atmospheres, lowering maintenance cycles and extending service life in demanding facilities. Through-feed capability simplifies field wiring, enabling faster retrofits and easier future upgrades without disassembly. The enclosure’s through-feed design and two 3/4" hubs support compliant conduit management and safer, code-aligned installations. With Hazardous/Classified Location certifications and NEC/CEC standards, you gain regulatory confidence and a clear path to workplace safety compliance. The compact dimensions (5.06 in depth, 5.875 in height, 7.19 in width) and 16.8 lb weight provide sturdy mounting in standard electrical spaces, reducing vibration-related wear and improving long-term reliability.

Get a Quick Quote for a Eaton Crouse-Hinds EDSC2229

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDSC2229? Enquire Now

FAQs

For hazardous locations, mount the EDSC2229 in a through-feed, two-gang enclosure with two 3/4" hubs to simplify conduit entry. Ensure connections are made within the 120–277V, 20A rating and follow NEC/CEC guidelines for Class I, II, and III locations. Use the instruction sheets (IF 328) to confirm mounting procedures and wiring sequences for safe, compliant integration.
The device is rated for 20A at 120–277V, supporting two single-pole devices in a two-gang assembly. This broad voltage range enables a single control head for mixed-voltage panels, reducing part counts and installation time while ensuring reliable switching in standard industrial control circuits.
Ideal for hazardous-location motor control, conveyor and pump panels, chemical processing plants, oil and gas facilities, and mining operations. The dual-gang, through-feed configuration with a sealed enclosure supports reliable switching in challenging environments, helping facilities meet strict safety and reliability requirements.
The EDSC2229 carries NEC/CEC compliance for Hazardous/Classified Locations, including Class I Division 1 & 2, Class II Division 1 & 2, and Class III. It also carries NEMA ratings 3, 7, and 9, and is designed for controlled, safe operation in hazardous environments per applicable standards.
Factory-sealed construction and rugged Feraloy iron alloy housing reduce ingress, corrosion, and maintenance needs, extending service life in harsh settings. The two-gang, through-feed design speeds installation and future upgrades, lowering downtime and labor costs while enhancing overall system reliability and return on investment.
