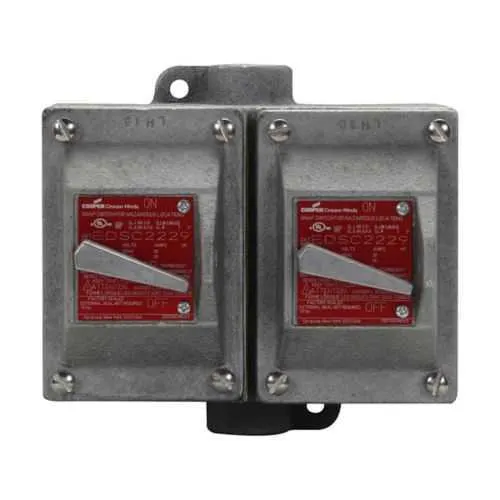

Eaton EDSC2240 Snap Switch Control Station - Class I/II/III

Part Number: EDSC2240
EDSC2240
Manufacturer
Eaton Crouse-Hinds
Part number
EDSC2240
Category

Quick Summary

The EDSC2240 snap switch control station is a rugged control solution for hazardous-location panels used in heavy industrial processes. Operators often struggle with moisture ingress, complex wiring, and non-compliant enclosures that slow startups and raise maintenance costs. This unit delivers NEC/CEC compliance and hazardous-area ratings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, paired with robust NEMA protection. Designed for through-feed installations, its two-gang, four-pole configuration supports multi-circuit control at 120–277V. Factory-sealed construction and durable Feraloy iron alloy meet demanding field conditions, delivering long-term reliability while simplifying installation and reducing lifecycle costs for safety-conscious facilities.

Product Information

Extended Description

EDSC2240 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS snap switch control station, 20A, With switch, With two 3/4" hubs, Feraloy iron alloy, 2, Two-gang, Four-pole, 120-277V, Factory sealed, Through feed, 4-way, 3/4", 120-277 Vac
Product Name
Eaton Crouse-Hinds series EDS snap switch control station
Catalog Number
EDSC2240
Product Length/Depth
5.06 in
Product Height
5.875 in
Product Width
7.19 in
Product Weight
15.35 lb
UPC
782274765747
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With switch
Trade size
3/4"
Number Of Poles
Four-pole
Switch function
4-way
Number of gangs
Two-gang
Style
Through feed
Voltage rating
120-277 Vac
Amperage Rating
20A
Hub style
With two 3/4" hubs
Number of devices
2
Primary voltage range
120-277V
Material
Feraloy iron alloy
Special features
Factory sealed
EDS and EDSX Fully Assembled Snap Switches catalog page EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies EDS and EFD Explosionproof Snap Switches UL certification - industrial control panels and assemblies IF 242 - EDS and EDSC Control Stations IF 242 - EDS and EDSC Control Stations Eaton Specification Sheet - EDSC2240
Through-feed, two-gang, four-pole construction enables centralized switching of two circuits in a single enclosure, reducing panel footprint and wiring complexity. This translates to faster installations and easier troubleshooting on fast-moving production lines. Application: control stations for conveyors, pumps, and machine tools in harsh environments. Rated for 120–277V and 20A, the EDSC2240 supports common industrial loads without oversizing equipment. The result is better space utilization and lower energy waste due to optimized switchgear. Application: motor starters and lighting control in hazardous areas. Two 3/4-inch hubs simplify conduit connections in restricted spaces; pre-wired through-feed options reduce field wiring time. Installation becomes straightforward for electricians working in tight control panels or remote locations. Feraloy iron alloy and a factory-sealed enclosure provide rugged reliability in corrosive or dusty environments. This reduces maintenance cycles and extends service life in chemical plants, refineries, and other demanding sites. NEC/CEC compliance and hazard-area ratings Class I Division 1 and 2, Class II Division 1 and 2, Class III, plus NEMA ratings 3, 7, 9 ensure regulatory alignment and safe operation. Dimensions of 5.06 in length, 5.875 in height, and 7.19 in width with a weight around 15.35 lb do not sacrifice space for performance. Access to Eaton documentation—EDS catalog page, IF 242 instruction sheets, and the official spec sheet—supports quick design validation and faster project approvals.
