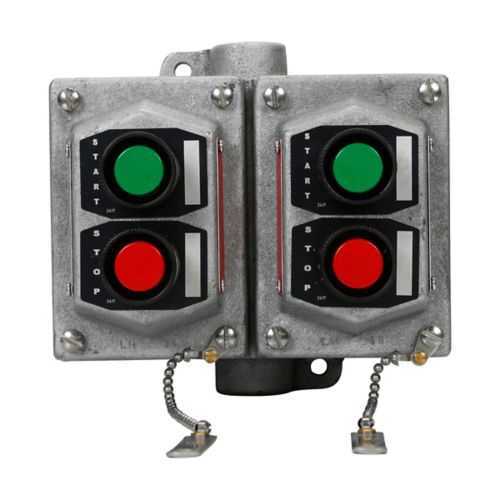

Eaton Crouse-Hinds EDSC225 Pushbutton - Hazardous
Part Number: EDSC225
Quick Summary
EDSC225 is a rugged, two-gang explosion-proof pushbutton control station for hazardous locations. Designed to centralize control in tough environments, it reduces wiring complexity and maintenance overhead for industrial systems. Certified for hazardous-classified locations under NEC/CEC, with Class I, Division 1 and Class II, Division 2 ratings, plus NEMA 3, 7, 9 enclosure suitability. Operating at up to 600 Vac with two pushbuttons in a through-feed, 3/4 inch trade size, it supports fast installation and reliable operation. In practice, operators benefit from reduced panel clutter and improved fault isolation, key when uptime and safety matter most. Its ferrous alloy construction delivers rugged endurance in demanding environments.
Product Information
Extended Description
EDSC225 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit, 2, Two-gang, 2, Through feed, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC225
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
15.53 lb
UPC
782274765297
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Through feed
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC225
Two-gang, two-pushbutton enclosure reduces panel footprint while consolidating control points, cutting wiring runs and installation time. This arrangement delivers measurable uptime gains in process lines and emergency-stop configurations, particularly when space is at a premium in dusty or humid plant areas. The unit operates at 600 Vac with two devices, enabling straightforward integration with existing electrical infrastructure, reducing potential voltage mismatches and wiring errors in control panels. Feraloy iron alloy provides robust durability against impact, corrosion, and thermal stress, translating to lower replacement and maintenance costs in harsh environments. Through-feed mounting and a 3/4 inch trade size simplify installation, enabling faster retrofit and scalable expansion across multi-location sites. NEC/CEC compliance and hazardous-location ratings minimize regulatory risk and streamline procurement for safety-critical applications in oil, gas, and chemical facilities. NEMA 3, 7, 9 enclosure compatibility supports outdoor and indoor service with reliable ingress protection.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC225?
Enquire Now
FAQs
The EDSC225 is designed for two-gang installations with through-feed mounting and a 3/4 inch trade size, rated for up to 600 Vac. When installing in hazardous locations, follow NEC/CEC requirements and UL/CSA documentation. Use appropriate conduit fittings and mounting hardware, ensure enclosure integrity for Class I/II/III environments, and consult installation instructions IF 372 for proper mounting and wiring practices.
EDSC225 features two pushbuttons and two devices across two gangs, suitable for two-circuit control. The voltage rating is 600 Vac, with a through-feed enclosure design that helps simplify wiring. This configuration supports reliable operation in hazardous locations while maintaining compact panel space and straightforward integration with existing control circuits.
Yes. The unit is designed for hazardous/classified locations and carries NEC/CEC compliance with Class I, Division 1 and Class II, Division 2 ratings, plus NEMA 3, 7, 9 enclosure suitability. Its explosion-proof construction and robust materials make it well-suited for oil and gas processing, chemical plants, and mining applications where safety-critical control points must endure harsh conditions.
EDSC225 carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 1 and Class II, Division 2, as well as Class III. It also aligns with NEMA ratings 3, 7, and 9, and is designed for use in Hazardous/Classified Locations. Canadian certifications and UL listing are referenced in related documents and catalog pages for verification.
The rugged ferraloy iron alloy enclosure and explosion-proof design reduce the risk of component failure in harsh environments, lowering maintenance costs and downtime. Consolidating controls into a two-gang station cuts wiring and replacement parts, speeding diagnostics and refurbishment. The NEC/CEC compliance streamlines procurement and reduces regulatory risk, yielding a favorable total cost of ownership over traditional non-hazardous control stations.
