Eaton EDSC2290 Pushbutton Control Station - Hazardous Locations

Part Number: EDSC2290
EDSC2290
Manufacturer
Eaton Crouse-Hinds
Part number
EDSC2290
Category

Quick Summary

EDS pushbutton control station provides reliable local control for hazardous-location equipment in industrial automation. Engineers often confront wiring complexity and compliance hurdles when upgrading control panels, leading to downtime and costly rework. This unit carries NEC/CEC standards and hazardous location ratings (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III) with NEMA 3, 7, 9 protection, supporting safe operation in harsh environments. By combining a 600 Vac rating with a Feraloy iron alloy enclosure and two pushbuttons, it enables robust, compliant installations in oil and gas, chemical processing, mining, and other critical processes. It also complements through-feed wiring and two-gang configurations to streamline panel design and maintenance.

Product Information

Extended Description

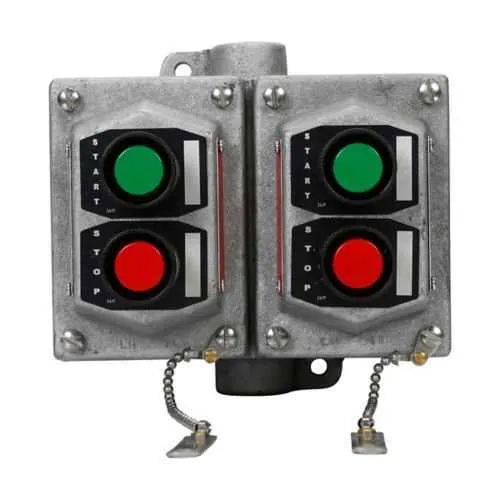

EDSC2290 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Two-gang, 2, Through feed, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC2290
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
16.7 lb
UPC
782274765785
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
3/4"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EDSC2290
Feraloy iron alloy enclosure is rugged and corrosion-resistant, providing explosion-proof performance and extended service life in harsh environments; the business impact is reduced maintenance costs and less frequent part replacements in hazardous locations, enabling reliable operation in chemical plants and oil refineries. The 600 Vac voltage rating supports higher-capacity control circuits, simplifying wiring and reducing the number of components required to achieve the same functionality, which translates to faster commissioning and lower total installed cost. The two-gang, two-pushbutton design delivers dual-circuit control in a single enclosure, saving panel space and enabling compact, modular control schemes ideal for motor control centers and emergency-stop integration. Through-feed wiring and a 3/4" trade size ease installation, accelerating field wiring while preserving neat, accessible terminations for service interventions. NEC/CEC compliance and hazardous-location ratings satisfy regulatory acceptance and industrial safety programs, mitigating compliance risk during audits and plant expansions. Compatibility with EDS/EDSX control stations and related catalog pages supports scalable system upgrades without replacing existing infrastructure, reducing lifecycle costs and spare-part inventories.
