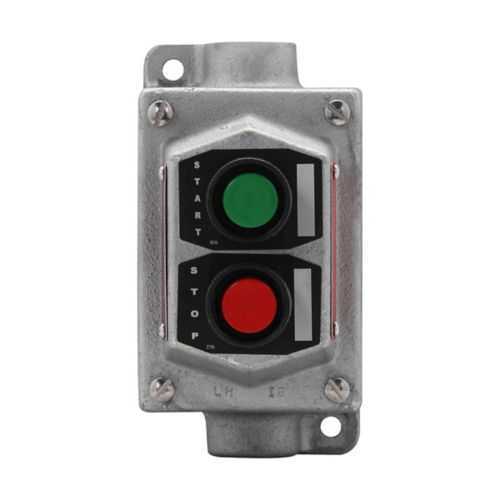

Eaton EDSC3190 Pushbutton Control Station - Hazardous
Part Number: EDSC3190
Quick Summary
EDS pushbutton control station from Eaton Crouse-Hinds provides rugged local control for hazardous-area equipment in chemical, oil, and mining sites. In hazardous locations, choosing a station that withstands dust, moisture, and explosive atmospheres can slow projects and drive maintenance costs. Certified to NEC/CEC standards, with Class I, Division 1 and 2, Class II, Division 1 and 2, Class III ratings and a NEMA 3 7 9 enclosure, it supports reliable compliance across international facilities. Its compact single-gang form and through-feed wiring reduce installation time and simplify inventory for maintenance teams. As a result, engineers can deploy explosion-proof control stations rapidly while meeting safety and uptime targets, making it a strong fit for hazardous-area through-feed configurations and scalable automation projects.
Product Information
Extended Description
EDSC3190 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Through feed, 1"
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC3190
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
8.27 lb
UPC
782274765945
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC3190
Feature: Through-feed wiring and a 1 in trade size with two pushbuttons inside a single-gang enclosure. Benefit: Simplifies field wiring and reduces panel depth, speeding commissioning and maintenance. Application: Ideal for two-button start/stop or local signaling in hazardous-area control stations. Feature: Feraloy iron alloy enclosure material. Benefit: Delivers high strength and exceptional resistance to corrosion, heat, and impact in tough industrial environments. Application: Oil, gas, and chemical processing facilities where harsh conditions are routine. Feature: Two pushbuttons and two devices configured as a two-circuit universal station. Benefit: Flexible control logic supports multiple signals without expanding panel footprint. Application: Hazardous-location control stations requiring compact yet capable operator interfaces. Feature: NEC/CEC compliance with Class I, Division 1 and 2, Class II, Division 1 and 2, Class III ratings plus NEMA 3, 7, 9 enclosure. Benefit: Regulatory alignment and global compatibility reduce procurement risk and streamline audits. Application: Global deployments across facilities with stringent safety standards. Feature: Through-feed, single-gang design optimized for installation efficiency. Benefit: Faster wiring runs and easier field modifications, lowering total installed cost. Application: New builds and retrofit projects in hazardous environments where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC3190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC3190?
Enquire Now
FAQs
Refer to IF 372 EDS notices and installation sheets for hazardous-area use. The unit supports through-feed wiring in a single-gang enclosure with 1 in trade size, two pushbuttons, and two devices. Mounts on standard panels and requires proper enclosure rating for Class I/II/III environments.
The EDSC3190 is NEC/CEC compliant with Class I, Division 1 & 2; Class II, Division 1 & 2; Class III ratings, and a NEMA 3, 7, 9 enclosure, suitable for Hazardous/Classified Locations across global facilities.
Yes. EDSC3190 supports a 1 in trade size and contains two pushbuttons and two devices within a single-gang, through-feed configuration, providing flexible control in hazardous locations.
Ideal for hazardous-area control stations in oil, chemical, and mining facilities. It supports start/stop and signaling functions in explosion-risk environments, enabling safe, reliable local control with a compact footprint.
Its compact single-gang design, through-feed wiring, and durable Feraloy housing reduce install time, maintenance frequency, and downtime, delivering lower lifecycle costs and faster project completion for hazardous-location automation.
