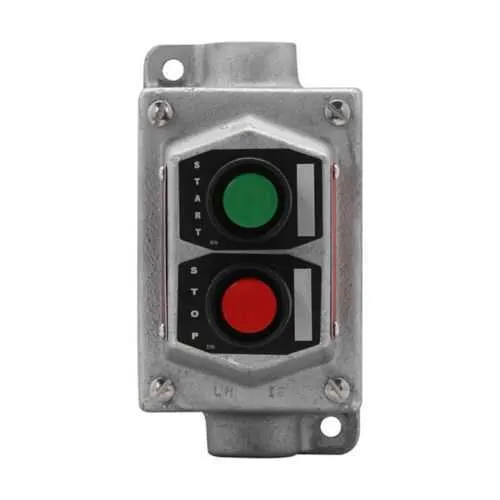

Eaton EDSC3192 Pushbutton Control Station - Hazardous

Part Number: EDSC3192
EDSC3192
Manufacturer
Eaton Crouse-Hinds
Part number
EDSC3192
Category

Quick Summary

The Eaton EDSC3192 Pushbutton Control Station delivers reliable control in hazardous industrial environments. In such facilities, rugged equipment must resist dust, moisture, and vibration, and downtime is costly; this unit provides explosion-proof protection and through-feed mounting for dependable operation. It meets NEC/CEC standards and hazardous-location ratings (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III) plus NEMA 3, 7, 9 protection, ensuring safe performance across demanding sites. With a 600 Vac rating and a 1" trade size, it streamlines wiring and installation. This combination supports engineers in meeting safety standards while maximizing uptime and reducing maintenance costs in process and power distribution environments.

Product Information

Extended Description

EDSC3192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Two circuit universal, 2, Single-gang, 2, Through feed, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC3192
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.81 in
Product Weight
6.94 lb
UPC
782274765952
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EDS/EDSX Hazardous Area Control Stations catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations Eaton Specification Sheet - EDSC3192
Feature → Business Impact → Application: Two pushbuttons and two devices in a single-gang through-feed enclosure enable two-channel control within a compact footprint, reducing panel complexity and conduit runs while improving reliability in hazardous zones. This translates to faster installation, lower wiring errors, and easier maintenance in chemical plants and refineries. Feature → Business Impact → Application: Feraloy iron alloy construction and explosion-proof design deliver durable, long-life performance under dust, moisture, and vibration, cutting replacement costs and downtime in mining, oil & gas, and heavy machinery applications. Feature → Business Impact → Application: 600 Vac rating and 1" trade size support standard industrial wiring practices, enabling straightforward integration with existing Eaton EDS/EDSX control stations for scalable automation. Feature → Business Impact → Application: NEC/CEC compliance with Class I/II/III ratings and NEMA 3,7,9 protection reduces regulatory risk and supports safe operation in outdoors and harsh environments. Feature → Business Impact → Application: Through-feed capability simplifies field wiring and future upgrades, improving installation efficiency and reducing project lead times for EPCs and end users. Feature → Business Impact → Application: The compact 3.5 in depth, 5.91 in height, and 5.81 in width enclosure fits standard electrical layouts, enabling quicker retrofits and compatibility with existing control room schemes.

Get a Quick Quote for a Eaton Crouse-Hinds EDSC3192

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EDSC3192? Enquire Now

FAQs

Install per NEC/CEC requirements for Class I/II/III hazardous locations and follow all local codes. The EDSC3192 is rated Class I Div 1/2 and Class II Div 1/2 with NEMA 3, 7, 9 protection and a 1" trade size through-feed enclosure. Plan for proper conduit connections and ensure sealing and torques are preserved during installation and maintenance.
The unit features two pushbuttons and two devices in a single-gang enclosure, rated for 600 Vac. It has a 1" trade size through-feed, a Feralo y iron alloy enclosure, and measures 3.5 in depth with 5.91 in height and 5.81 in width, weighing 6.94 lb. These specs support two-circuit universal operation in hazardous locations.
Yes. The EDSC3192 is designed to integrate with Eaton’s EDS/EDSX hazardous area control-station family. Its through-feed mounting and 1" trade size simplify modular installation and future expansion, enabling scalable, matched control stations for multi-point systems across demanding facilities.
It meets NEC/CEC standards and hazardous-location ratings including Class I Division 1 and 2, Class II Division 1 and 2, Class III, along with NEMA ratings 3, 7, and 9. These certifications support safe operation in hazardous environments and help satisfy regulatory and insurance requirements for industrial plants.
The robust explosion-proof design reduces maintenance frequency and downtime in harsh environments, delivering longer service life and lower total cost of ownership. Faster installation, fewer wiring errors, and compatibility with existing Eaton control-station packages also shorten project timelines and improve overall operator uptime.
