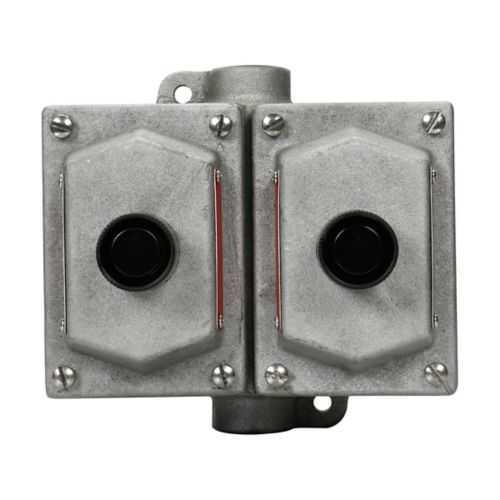

Eaton Crouse-Hinds EDSC3284 Pushbutton Station - Hazardous Locations
Part Number: EDSC3284
Quick Summary
EDSC3284 pushbutton control station from Eaton Crouse-Hinds provides rugged input control for hazardous-area equipment. Operators and maintenance teams often face reliability and wiring challenges in hazardous environments, where certified protection and durable enclosures are non-negotiable. This unit carries NEC/CEC approvals with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, plus NEMA 3, 7, 9 enclosure protection to withstand demanding installations. The through-feed, two-gang design supports a single circuit universal default, with a 1-inch trade size and 600 Vac rating, simplifying field wiring and inspection. By aligning with industry standards, it reduces downtime, improves compliance posture, and delivers long-term value for safety-critical control stations in chemical, oil & gas, and heavy manufacturing settings.
Product Information
Extended Description
EDSC3284 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDS pushbutton control station, With pushbuttons, Feraloy iron alloy, Single circuit universal, 1, Two-gang, 1, Through feed, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EDS pushbutton control station
Catalog Number
EDSC3284
Product Length/Depth
7.19 in
Product Height
6.03 in
Product Width
5.81 in
Product Weight
15.8 lb
UPC
782274766027
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Two-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Through feed
Trade size
1"
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EDS/EDSX Hazardous Area Control Stations catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification
IF 372 - EDS Notice
IF 372 - EDS Notice
IF 372 - EDS Notice
Eaton Specification Sheet - EDSC3284
Feature → Business Impact → Application: The two-gang through-feed enclosure streamlines wiring and reduces install time, delivering measurable labor savings on new builds and retrofits; it supports a single circuit universal configuration, minimizing spare parts and simplifying panel wiring in mixed-voltage systems for chemical plants. The 600 Vac rating and feraloy iron alloy housing provide robust protection in hazardous locations, improving uptime and operator safety, particularly during startup and high-current events in oil and gas facilities. NEC/CEC conformance and NEMA 3, 7, 9 protection translate to stronger compliance documentation, easier audits, and lower risk of non-conformance in refinery environments. The pushbutton, 1-button, 1-device design reduces footprint while preserving control flexibility, making it easier to retrofit in existing two-gang panels and align with through-feed cabling strategies. Industry context shows explosionproof control stations like EDSC3284 are preferred in harsh environments for long-term reliability and simplified maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds EDSC3284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSC3284?
Enquire Now
FAQs
EDSC3284 is a two-gang, through-feed pushbutton control station rated for 600 Vac. It uses a 1" trade size and a single circuit universal configuration with a feraloy iron alloy enclosure. It supports through-feed wiring, is NEC/CEC compliant, and is designed for hazardous/classified locations, enabling straightforward field installation and reliable operation in Class I/II/III environments.
The NEC/CEC ratings certify safe operation across Class I and II zones, including divisions 1 and 2, ensuring appropriate insulation, enclosure integrity, and clearance for hazardous atmospheres. This translates to verified electrical separation, robust enclosure protection, and documented compliance, which reduces risk during commissioning and routine maintenance in refinery, chemical, and mining applications.
Yes. The EDSC3284 is designed for hazardous locations with Class I/II/III ratings and NEMA 3, 7, 9 protection, making it suitable for oil & gas, chemical processing, and other high-risk environments. Its 600 Vac limit supports common plant circuits, while the two-gang, through-feed design simplifies retrofits and new installations without compromising safety or compliance.
The unit carries NEC/CEC compliance with Class I Division 1 and 2, Class II Division 1 and 2, Class III ratings, NEMA 3, 7, 9 enclosure protection, and Hazardous/Classified Location area classification. This combination supports regulatory audits, safe operation in hazardous areas, and compatibility with explosionproof control station requirements in industrial facilities.
The EDSC3284 uses a robust feraloy iron alloy enclosure and a simple through-feed wiring approach, which reduces maintenance intervals and installation time. Its durable construction lowers spare-part needs, minimizes unplanned downtime, and accelerates commissioning in new projects or plant upgrades, delivering measurable return on investment through improved uptime and safer, compliant operations.
