Eaton EDSCM62 Modular Device Body - Hazardous
Part Number: EDSCM62
Quick Summary
Eaton Crouse-Hinds EDSCM62 modular control device body enables through-feed, two-gang control for hazardous locations in industrial panels. Engineers often struggle with wiring density and compliance when specifying rugged enclosures for explosion-protected control stations, especially under tight installation footprints. This design supports NEC/CEC compliance and UL listings for hazardous locations, along with NEMA ratings 3, 7 and 9 to withstand demanding environments. The copper-free aluminum construction combined with compatibility to DSD device cover sub-assemblies delivers a reliable, scalable solution that reduces maintenance downtime while enabling fast expansion and easier field upgrades in process, oil & gas, and marine applications.
Product Information
Extended Description

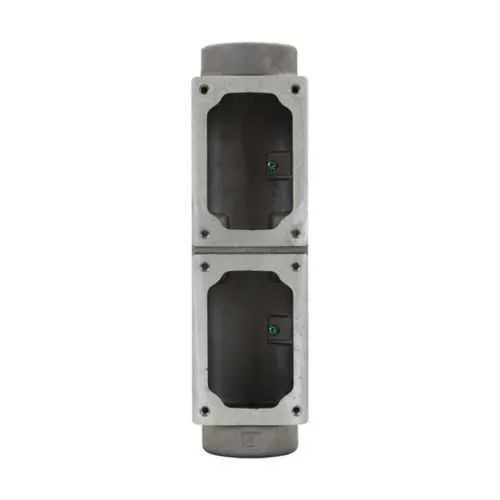

EDSCM62 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EDSCM modular control device body, With two 2" hubs and two 1-1/4" hubs, Copper-free aluminum, Two-gang tandem, Through feed, 2", DSD device cover sub-assemblies
Product Name
Eaton Crouse-Hinds series EDSCM modular control device body
Catalog Number
EDSCM62
Product Length/Depth
12.63 in
Product Height
3.31 in
Product Width
3.5 in
Product Weight
5.95 lb
UPC
782274780955
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Number of gangs
Two-gang tandem
Trade size
2"
Style
Through feed
Hub style
With two 2" hubs and two 1-1/4" hubs
Material
Copper-free aluminum
Used with
DSD device cover sub-assemblies
EDSCM Series Explosionproof, Modular Multi-Gang Device Bodies catalog page
EDSCM Explosionproof Modular Device Bodies UL certification
EDSCM Explosionproof Modular Device Bodies UL certification
IF 294 - EDSCM Modular Control Station Bodies
IF 294 - EDSCM Modular Control Station Bodies
IF 294 - EDSCM Modular Control Station Bodies
Eaton Specification Sheet - EDSCM62
Feature → Through-feed, two-gang tandem body with two 2" hubs and two 1-1/4" hubs enables compact, adaptable wiring layouts. Business Impact → Reduces wiring complexity and installation time, lowering labor costs and downtime during commissioning. Application → Ideal for explosion-proof control panels in hazardous locations where space is at a premium. Feature → Copper-free aluminum construction provides corrosion resistance and lighter weight. Business Impact → Improves durability in harsh environments while lowering structural wear and freight costs. Application → Suited for offshore platforms, chemical plants, and hazardous-area equipment enclosures. Feature → DSD device cover sub-assemblies compatibility allows modular upgrades. Business Impact → Facilitates rapid customization and future-proofing without full enclosure replacement. Application → Quick replacement of control elements in evolving process systems. Feature → NEC/CEC compliance with UL hazardous-location listings and NEMA ratings 3, 7, 9. Business Impact → Reduces regulatory risk and accelerates approvals during design reviews. Application → Essential for electrical design in codes-driven facilities and marine/offshore installations. Feature → Two-gang tandem, 12.63" length, 3.31" height, 3.5" width with 5.95 lb weight. Business Impact → Predictable footprint and weight support for rack, backbox, and mounting calculations. Application → Enables accurate space planning in control rooms and hazardous-area panels.
Get a Quick Quote for a Eaton Crouse-Hinds EDSCM62
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EDSCM62?
Enquire Now
FAQs
The EDSCM62 is designed as a two-gang tandem modular device body intended for use with DSD device cover sub-assemblies. It features two 2" hubs and two 1-1/4" hubs for through-feed wiring, making it suitable for explosion-protected control panels in hazardous locations. Compatibility with DSD sub-assemblies simplifies field upgrades.
EDSCM62 carries NEC/CEC compliance for hazardous locations, UL listings for US and Canada, and NEMA ratings of 3, 7, and 9. These certifications support compliant installation in Class I, II, and III locations, including Division 1 and 2, reducing regulatory risk during design and commissioning.
The device body measures 12.63 inches in length, 3.31 inches in height, and 3.5 inches in width, with an approximate weight of 5.95 pounds. These dimensions help with enclosure planning and mounting footprint in restricted spaces.
EDSCM62 provides two 2-inch hubs and two 1-1/4-inch hubs in a through-feed layout. This enables flexible wiring routes and easier termination, reducing labor time during installation and future expansions.
Its copper-free aluminum construction resists corrosion, while compatibility with DSD device cover sub-assemblies allows rapid field upgrades without full enclosure replacement. The combination of NEC/CEC compliance, UL listings, and a modular, through-feed design translates to lower lifecycle costs and faster deployment in demanding environments.
