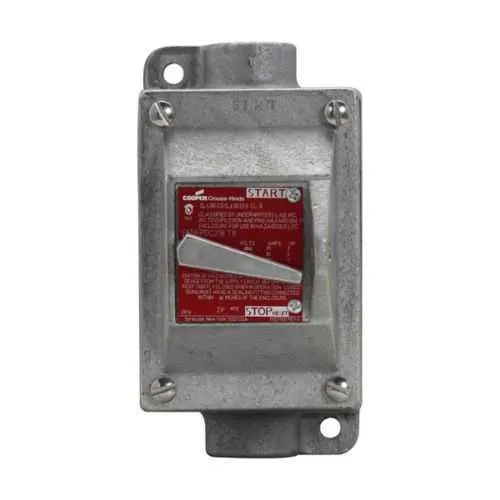

Eaton EFDC2419 Manual Motor Starter Switch - Explosionproof
Part Number: EFDC2419
Quick Summary
EFDC2419 manual motor starter switch by Eaton safely starts and stops motors in hazardous locations. This solution addresses downtime and compliance challenges when selecting motor starters for explosive environments. It carries NEC/CEC standards and hazardous location ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, along with rugged NEMA ratings 3, 7, 9, and 12. The single-gang, three-pole through-feed design simplifies wiring, reduces panel depth, and speeds field installation. Operating at 240/600 VAC with 7.5 HP at 240 VAC and 15 HP at 600 VAC, and 20 A/30 A ratings, it aligns with common plant motor loads while offering robust safety margins. For engineers and procurement teams, this combination translates into quicker approvals, lower maintenance costs, and consistent, code-compliant performance.
Product Information
Extended Description
EFDC2419 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFD manual motor starter switch, 20A/30A, With switch, 7.5 HP/15 HP, General Electric starter, Feraloy iron alloy, Single-gang, Three-pole, Through feed, 3/4", 240/600 Vac
Product Name
Eaton Crouse-Hinds series EFD manual motor starter switch
Catalog Number
EFDC2419
Product Length/Depth
3.5 in
Product Height
6.72 in
Product Width
4.88 in
Product Weight
7.7 lb
UPC
782274274003
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Enclosure
With switch
Manufacturer
General Electric
Number of gangs
Single-gang
Number Of Poles
Three-pole
Style
Through feed
Trade size
3/4"
Voltage rating
240 Vac/600 Vac
Horsepower
7.5 hp/15 hp
Amperage Rating
20 A/30 A
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFD Explosionproof Motor Starters
EFD Series Explosionproof Motor Starters catalog page
EDS and EFD Explosionproof Motor Starters Canadian certification
EDS and EFD Explosionproof Motor Starters Canadian certification
Eaton Specification Sheet - EFDC2419
Through-feed, three-pole, single-gang enclosure keeps wiring clean and panel space tight, reducing installation time and field errors. This improves startup reliability and lowers labor costs during commissioning, especially in limited-access control cabinets found in plant floors. The dual voltage and horsepower range—240/600 VAC with 7.5/15 HP and 20/30 A—matches common motor loads, enabling streamlined stocking and reducing over-sizing decisions. The rugged Feraloy iron alloy housing provides durable, explosion-proof construction for harsh environments, extending service life and reducing replacement cycles in petrochemical and refinery applications. NEC/CEC compliance along with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings support regulatory approvals, easing inspection processes and project sign-off. NEMA ratings of 3, 7, 9, and 12 offer reliable protection in indoor and outdoor installations, mitigating weather and chemical exposure risks. The single-gang, through-feed design simplifies panel wiring and maintenance, making retrofits and upgrades faster and less disruptive.
Get a Quick Quote for a Eaton Crouse-Hinds EFDC2419
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFDC2419?
Enquire Now
FAQs
EFDC2419 is designed for Class I, II, and III hazardous areas with through-feed wiring in a single-gang, three-pole enclosure. Ensure compliance with NEC/CEC requirements and install the unit on a suitable mounting surface with proper enclosure protection (NEMA 3/7/9/12) and appropriate wiring methods for 240/600 VAC systems.
The starter offers 7.5 HP at 240 VAC and 15 HP at 600 VAC, with amperage ratings of 20 A and 30 A respectively. This matches common industrial motor profiles, enabling efficient control without over-sizing and reducing spare parts inventory for mixed voltage applications.
Yes. EFDC2419 is part of the EFD explosion-proof motor starter family and is designed to integrate with matched Eaton Crouse-Hinds components. For seamless assemblies, reference the SP3D Design Package and EFD catalog pages to verify compatibility and wiring schemes.
EFDC2419 carries NEC/CEC standards and hazardous location ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, along with NEMA 3/7/9/12 protection. These certifications support regulatory approvals, reduce engineering review time, and simplify proof of compliance during audits.
The rugged Feraloy iron alloy construction reduces wear and replacement cycles in harsh environments, while explosion-proof design minimizes risk of arcing and leaks. The compact, reliable design lowers labor costs during installation and maintenance, delivering a lower total cost of ownership and faster project payback in hazardous-location motor control applications.
