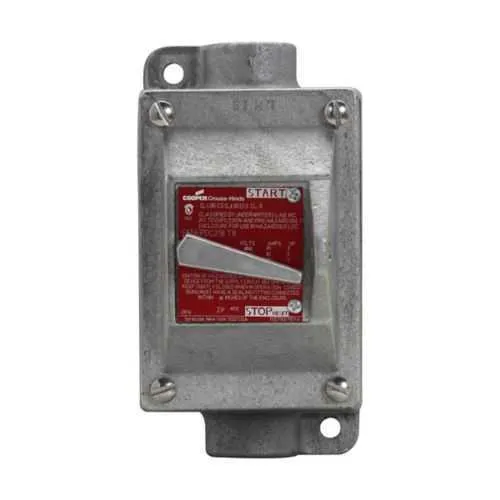

Eaton EFDC2419SA Manual Motor Starter - Explosionproof
Part Number: EFDC2419SA
Quick Summary
EFDC2419SA manual motor starter switches are designed to deliver reliable motor control in hazardous locations. For engineers and maintenance teams, selecting a compliant, durable starter that fits compact panel spaces is a frequent challenge. This model carries NEC/CEC compliance and hazardous location ratings, including Class I, Division 1 and related approvals, with additional risk-reduction in Class II/III environments. Its copper-free aluminum construction, through-feed design, and 240/600 VAC capability translate to faster installations, lighter panels, and lower life-cycle costs, while maintaining robust protection. By pairing proven performance with streamlined installation, it supports safer, more efficient motor control across demanding industrial settings and regulated facilities.
Product Information
Extended Description
EFDC2419SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFD manual motor starter switch, 20A/30A, With switch, 7.5 HP/15 HP, General Electric starter, Copper-free aluminum, Single-gang, Three-pole, Through feed, 3/4", 240/600 Vac
Product Name
Eaton Crouse-Hinds series EFD manual motor starter switch
Catalog Number
EFDC2419SA
Product Length/Depth
3.5 in
Product Height
6.72 in
Product Width
2.17 in
Product Weight
7.38 lb
UPC
662276932319
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class III Class II, Division 2 Class I, Division 2 Class II, Division 1
NEMA Rating
3 9 12 7
Enclosure
With switch
Manufacturer
General Electric
Number of gangs
Single-gang
Number Of Poles
Three-pole
Style
Through feed
Trade size
3/4"
Voltage rating
240 Vac/600 Vac
Horsepower
7.5 hp/15 hp
Amperage Rating
20 A/30 A
Material
Copper-free aluminum
SP3D Design Package - EDS and EFD Explosionproof Motor Starters
EFD Series Explosionproof Motor Starters catalog page
EDS and EFD Explosionproof Motor Starters Canadian certification
EDS and EFD Explosionproof Motor Starters Canadian certification
Eaton Specification Sheet - EFDC2419SA
Feature: Explosionproof through-feed design ensures safe motor control in hazardous locations → Business Impact → Application: Reduces risk of ignition in Class I, Division 1 environments while simplifying wiring; ideal for oil & gas, chemical processing, and mining facilities where space is limited and safety is paramount. Feature: Copper-free aluminum enclosure and construction → Business Impact → Application: Weight reduction and corrosion resistance lower installation labor costs and maintenance intervals; suitable for outdoor and harsh indoor environments in manufacturing plants. Feature: 3/4 inch trade size with single-gang, three-pole configuration → Business Impact → Application: Compact, easy-to-mount starter fits standard electrical boxes, accelerating panel builds for conveyors, pumps, and fans in food, water treatment, and general industrial applications. Feature: 240/600 VAC, 7.5 HP/15 HP, 20 A/30 A ratings → Business Impact → Application: Broad motor compatibility supports a wide range of motors and starters, reducing part variety and stocking needs across multi-line facilities. Feature: Enclosure comes with switch and through-feed capability → Business Impact → Application: Faster field servicing and straightforward replacement in hazardous locations, minimizing downtime and enabling quick repairs during shifts or outages. Feature: NEC/CEC compliance and NEMA ratings (3, 9, 12, 7) → Business Impact → Application: Demonstrated compliance and rugged durability enable procurement to meet regulatory requirements while maintaining uptime in demanding environments, such as chemical plants and offshore facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EFDC2419SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFDC2419SA?
Enquire Now
FAQs
EFDC2419SA is designed for Class I, Division 1 hazardous locations and compliant under NEC/CEC standards. It features a single-gang footprint, three-pole configuration, and through-feed capability, making it suitable for compact control panels in plants such as chemical processing, oil & gas, and mining. Ensure mounting within approved explosionproof enclosures and follow local installation codes.
The starter supports 20 A/30 A, 7.5 HP/15 HP, and a voltage range of 240 VAC to 600 VAC. It uses copper-free aluminum for enclosure construction and is rated for a 3/4 inch trade size with a single-gang, three-pole design. These specifications ensure compatibility with a wide range of motors and industrial applications while maintaining safety in hazardous areas.
Yes. EFDC2419SA is part of the Eaton Crouse-Hinds explosionproof starter family and aligns with the EFD series standards. It supports through-feed installation and common mounting footprints, enabling straightforward substitution or expansion within existing hazardous-location control schemes while preserving compliance and performance.
Certified for NEC/CEC compliance with hazardous-location ratings, including Class I, Division 1, Class II, Division 1/2, and Class III. Documentation includes Canadian certification references and UL-listed resources, plus technical datasheets and installation guides in the Eaton catalog and safety reports. Downloads provide specification sheets and certification PDFs to support regulatory audits.
Choosing EFDC2419SA reduces downtime through reliable explosionproof performance and reduced panel weight due to copper-free aluminum, lowering installation and servicing costs. Its compact form factor, broad voltage compatibility, and documented compliance simplify procurement and maintenance, delivering long-term lifecycle efficiency and regulatory peace of mind for hazardous-location facilities.
