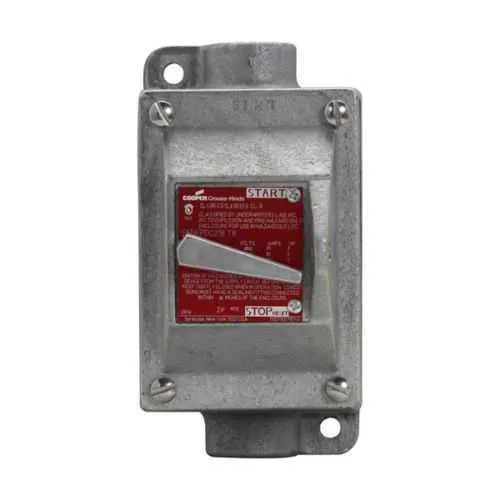

Eaton EFDC3419 Manual Motor Starter - Explosionproof
Part Number: EFDC3419
Quick Summary
The Eaton EFDC3419 Manual Motor Starter is explosionproof for hazardous locations and designed to safely control motors in challenging environments. It provides reliable on/off switching for 7.5 HP at 240 VAC or 15 HP at 600 VAC within a compact 1" through-feed, single-gang footprint. This design reduces panel space needs and simplifies wiring during installation, helping technicians avoid common wiring errors and installation delays. For maintenance and compliance teams, the EFDC3419 delivers NEC/CEC alignment with hazardous-area ratings and robust NEMA compatibility, supporting Class I, Division 1 and 2, Class II, and Class III environments. Coupled with UL documentation and a heritage of dependable motor control, it drives lower downtime and a stronger total cost of ownership in industrial facilities.
Product Information
Extended Description
EFDC3419 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFD manual motor starter switch, 20A/30A, With switch, 7.5 HP/15 HP, General Electric starter, Feraloy iron alloy, Single-gang, Three-pole, Through feed, 1", 240/600 Vac
Product Name
Eaton Crouse-Hinds series EFD manual motor starter switch
Catalog Number
EFDC3419
Product Length/Depth
3.5 in
Product Height
6.97 in
Product Width
4.88 in
Product Weight
8 lb
UPC
782274275802
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Enclosure
With switch
Manufacturer
General Electric
Number of gangs
Single-gang
Number Of Poles
Three-pole
Style
Through feed
Trade size
1"
Voltage rating
240 Vac/600 Vac
Horsepower
7.5 hp/15 hp
Amperage Rating
20 A/30 A
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFD Explosionproof Motor Starters
EFD Series Explosionproof Motor Starters catalog page
EDS and EFD Explosionproof Motor Starters UL certification
EDS and EFD Explosionproof Motor Starters UL certification
Eaton Specification Sheet - EFDC3419
Feature: Rugged Feraloy iron alloy construction provides durable protection in demanding environments. Business Impact: Extends service life and lowers maintenance cycles in harsh plants while maintaining reliable motor control. Application: Petrochemical and heavy process industries where equipment must withstand heat, dust, and impact. Long-tail keywords: explosionproof motor starter, hazardous locations motor control, rugged motor controllers. Feature: Through-feed, 1" trade size, single-gang, three-pole enclosure streamlines panel integration. Business Impact: Accelerates panel assembly and reduces wiring mistakes, cutting commissioning time. Application: Compact control panels in limited spaces across manufacturing lines. Long-tail keywords: compact motor starter, 1 inch trade size, through-feed design. Feature: 240/600 VAC voltage rating with 7.5/15 HP and 20/30 A amperage ratings. Business Impact: Supports a broad range of standard industrial motors, enabling flexible drive configurations and reducing part variety. Application: General motor control in conveyors, pumps, and fans. Long-tail keywords: 240 VAC motor starter, 600 VAC motor starter, HP rating. Feature: NEC/CEC compliance and hazardous location ratings (Class I, Division 1/2; Class II; Class III) plus NEMA 3, 7, 9, 12. Business Impact: Ensures regulatory adherence and safer operation in hazardous environments, lowering compliance risk. Application: Oil, gas, chemical, and mining installations requiring strict codes. Long-tail keywords: NEC hazardous rating, hazardous locations certification, NEMA ratings. Feature: Enclosure with switch and UL certification documentation supports easy sourcing and reliable performance. Business Impact: Simplifies procurement, reduces field modification needs, and provides validated safety assurance. Application: New installs and retrofits in industrial plants with strict safety requirements. Long-tail keywords: UL certification, explosionproof switch, control enclosure.
Get a Quick Quote for a Eaton Crouse-Hinds EFDC3419
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFDC3419?
Enquire Now
FAQs
EFDC3419 is engineered for hazardous locations with NEC/CEC compliance, Class I Division 1 and 2, Class II, and Class III ratings, plus UL certification. The unit is a three-pole, single-gang, through-feed design with a 1" trade size, making it suitable for compact panels and conduit-fed motor control in demanding environments.
EFDC3419 supports 240 VAC and 600 VAC operation, with horsepower ratings of 7.5 HP at lower voltage and 15 HP at higher voltage. The amperage ratings are 20 A (240 V) and 30 A (600 V), enabling flexible motor control across common industrial motors.
Yes. The EFDC3419 carries NEC/CEC standards with Hazardous/Classified Locations ratings, including Class I, Division 1 and 2, Class II, and Class III, and it aligns with NEMA ratings 3, 7, 9, and 12. UL certification documentation is available to support regulatory compliance and safe operation.
Through-feed 1" trade size simplifies wiring and panel routing, reducing installation time and potential miswiring. The single-gang, three-pole enclosure provides a compact footprint ideal for tight control panels while maintaining reliable motor-start functionality in hazardous environments.
EFDC3419 ships with UL certification documentation, and technical assets include 3D models, catalog pages, and a detailed specification sheet. Additional support includes UL-listed safety information and access to installation notes for proper integration in hazardous-location motor-control systems.
