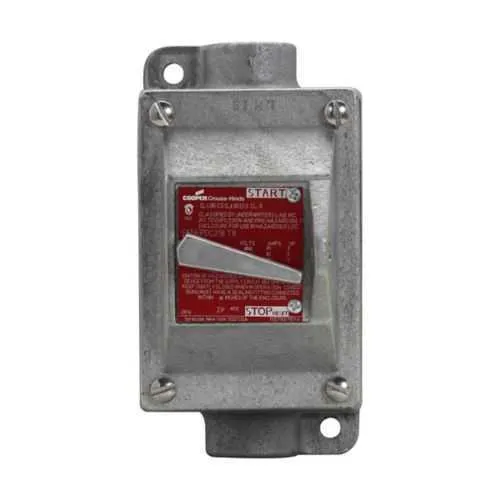

Eaton EFDC3419SA Manual Motor Starter - Hazardous Locations
Part Number: EFDC3419SA
Quick Summary
EFDC3419SA manual motor starter from Eaton Crouse-Hinds provides safe, reliable motor control in hazardous locations. In hazardous environments, electricians and engineers often struggle with wiring complexity, space constraints, and strict regulatory compliance. This unit offers NEC/CEC compliance with Class I, Division 1 and related hazardous-location ratings, plus UL certification to support safety documentation and audit readiness. The compact, single-gang enclosure houses a three-pole switch for through-feed wiring in a 1" trade size, handling 240/600 VAC. With 7.5 HP at 240 V and 15 HP at 600 V, and amperage ratings of 20 A/30 A, it pairs robust performance with easy installation. In short, it accelerates panel design, reduces downtime, and improves maintenance predictability in demanding industrial settings.
Product Information
Extended Description
EFDC3419SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFD manual motor starter switch, 20A/30A, With switch, 7.5 HP/15 HP, General Electric starter, Copper-free aluminum, Single-gang, Three-pole, Through feed, 1", 240/600 Vac
Product Name
Eaton Crouse-Hinds series EFD manual motor starter switch
Catalog Number
EFDC3419SA
Product Length/Depth
3.5 in
Product Height
6.97 in
Product Width
2.17 in
Product Weight
7.38 lb
UPC
662276932326
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class III Class II, Division 1 Class I, Division 2 Class II, Division 2
NEMA Rating
9 12 3 7
Enclosure
With switch
Manufacturer
General Electric
Number of gangs
Single-gang
Number Of Poles
Three-pole
Style
Through feed
Trade size
1"
Voltage rating
240 Vac/600 Vac
Horsepower
7.5 hp/15 hp
Amperage Rating
20 A/30 A
Material
Copper-free aluminum
SP3D Design Package - EDS and EFD Explosionproof Motor Starters
EFD Series Explosionproof Motor Starters catalog page
EDS and EFD Explosionproof Motor Starters UL certification
EDS and EFD Explosionproof Motor Starters UL certification
Eaton Specification Sheet - EFDC3419SA
Feature: Three-pole, single-gang through-feed design provides a compact control footprint. Business Impact: Simplifies wiring, saves panel space, and reduces installation time. Application: Ideal for compact control panels in hazardous environments where space is at a premium and reliability is critical. Feature: 7.5 HP at 240 V / 15 HP at 600 V with 20 A / 30 A ratings. Business Impact: Supports a broad range of motor loads while maintaining safe overload margins, lowering the need for multiple starters. Application: Conveyor lines, pumps, and fans in rugged facilities. Feature: Enclosed with switch and 1" trade size, through-feed. Business Impact: Eases integration into standard electrical enclosures and minimizes wiring complexity. Application: Hazardous-location installations where quick restart and controlled motor operation are required. Feature: Copper-free aluminum construction. Business Impact: Improves corrosion resistance and reduces weight-related handling and installation costs, beneficial for outdoor or harsh environments. Application: Outdoor equipment rooms and chemical processing plants. Feature: NEC/CEC compliance with hazardous-location ratings (Class I, Division 1; Division 2; Class II, Division 1; Division 2) and UL certification. Business Impact: Strong regulatory alignment lowers risk, speeds procurement, and supports audit trails. Application: Any safety-critical control system in hazardous areas where compliance documentation matters. Feature: Through-feed, single-gang, three-pole design with 240/600 VAC compatibility. Business Impact: Streamlines wiring topology and supports versatile motor control configurations, reducing inventory complexity. Application: Industrial automation panels requiring reliable explosion-proof starters with broad voltage support.
Get a Quick Quote for a Eaton Crouse-Hinds EFDC3419SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFDC3419SA?
Enquire Now
FAQs
EFDC3419SA is designed for hazardous/classified locations and includes a through-feed, single-gang enclosure suitable for Class I, Division 1/2 and Class II environments. Ensure proper sealing, enclosure integrity, and wiring that respects 240/600 VAC ratings and the 1" trade size. Verify UL certification and NEC/CEC compatibility during panel assembly to maintain compliance.
The EFDC3419SA supports NEC/CEC standards and hazard-location classifications, including Class I, Division 1 and related ratings. Its design aligns with NEC/CEC electrical specifications for hazardous environments, and UL certification provides formal compliance documentation to simplify approvals and inspections.
Yes. The EFDC3419SA is a single-gang, three-pole through-feed starter with a 1" trade size, engineered for straightforward integration into standard control panels. This configuration supports reliable connections and simplifies wiring in confined spaces typical of hazardous-location installations.
EFDC3419SA is rated for 20 A/30 A and supports 7.5 HP at 240 VAC and 15 HP at 600 VAC. This wide range accommodates common motor sizes used in conveyors, pumps, and fans while maintaining safe operation in hazardous environments.
The rugged copper-free aluminum construction, compact footprint, and simplified wiring reduce installation time and maintenance intervals. Combined with NEC/CEC compliance and UL certification, it lowers risk during audits and down-time, delivering a favorable total cost of ownership for hazardous-location motor control.
