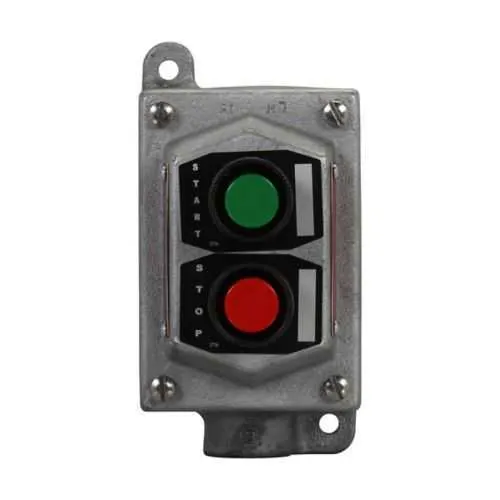

Eaton EFS215 Pushbutton Control Station - Class I/Div 1
Part Number: EFS215
Quick Summary
EFS pushbutton control station provides rugged operator control for hazardous locations in industrial processes. Maintenance downtime and safety compliance are ongoing challenges for explosion-proof panels in harsh environments. It carries NEC/CEC compliance, UL certification, and hazardous-location ratings (Class I, Division 1/2; Class II, Division 1/2; Class III), ensuring safe, regulatory-aligned operation. With two pushbuttons and two devices rated to 600 Vac, it offers clear control handoffs and safer lockout options. By matching with standard EDS/EFSC device bodies and a single 3/4" hub, installation is faster and maintenance is more predictable, delivering essential value to OEMs and maintenance teams.
Product Information
Extended Description
EFS215 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFS pushbutton control station, With pushbuttons, One 3/4" hub, Feraloy iron alloy, Two circuit, 2, 2, Single-gang, 2, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EFS pushbutton control station
Catalog Number
EFS215
Product Length/Depth
5.9 in
Product Height
5.25 in
Product Width
3.5 in
Product Weight
8.39 lb
UPC
782274281308
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Dead end
Trade size
3/4"
Number of circuits
2
Hub style
With one 3/4" hub
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EFS explosionproof control stations for group B applications - catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EFS215
Feature: Explosion-proof construction using Feraloy iron alloy provides enclosure integrity in hazardous locations. Business Impact: Reduces ignition risk and extends service life in aggressive environments. Application: ideal for chemical processing, oil and gas, and mining installations where protection from dust, vapors, and arcs is mandatory. Feature: 600 Vac voltage rating with two pushbuttons and two devices enables direct integration with common industrial control circuits. Business Impact: simplifies wiring, reduces auxiliary components, and supports higher efficiency motor and valve control. Application: suitable for conveyors, pumps, and fans in process facilities requiring reliable rating compatibility. Feature: Single-gang enclosure with a 3/4" hub and two circuits accommodates compact panel layouts. Business Impact: saves panel space, accelerates mounting, and lowers installation time and costs. Application: panel builders and OEMs targeting dense electrical cabinets in hazardous areas. Feature: NEC/CEC compliance, UL certification, and NEMA ratings 3, 7, 9 provide comprehensive safety and durability. Business Impact: ensures regulatory alignment, easier supplier qualification, and reduced compliance risk. Application: approved for Class I/II hazardous locations and maritime or outdoor installations demanding rugged protection. Feature: Compatibility with IF 328 and SP3D design packages, along with catalog pages, streamlines design-to-install workflows. Business Impact: minimizes field changes, accelerates procurement, and improves lifecycle planning. Application: preferred by engineers standardizing explosion-proof control stations across plant networks. Feature: Durable two-pushbutton, two-device configuration supports straightforward maintenance and fast fault isolation. Business Impact: reduces downtime during process changes or repair, improving overall equipment effectiveness. Application: critical in continuous operations such as batching, mixing, and packaging lines.
Get a Quick Quote for a Eaton Crouse-Hinds EFS215
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFS215?
Enquire Now
FAQs
The EFS215 is designed for single- or two-gang configurations and is compatible with standard EDS/EFSC device bodies. Use the IF 328 installation sheets to verify mounting options and ensure the 3/4" hub remains accessible for wiring and service.
EFS215 provides a 600 Vac rating with two pushbuttons and two devices in a single-gang enclosure, supporting two circuits. The unit uses a 3/4" hub and is constructed from Feraloy iron alloy for hazard-rated environments.
Yes. The EFS215 carries NEC hazardous ratings and is approved for Class I Division 1 (and related divisions) in hazardous locations, aligning with NEC/CEC standards and UL certifications for safe operation in demanding environments.
EFS215 is UL-certified and NEC/CEC compliant, with NEMA ratings of 3, 7, and 9. It supports hazardous-location use across Class I, Division 1/2 and Class II, Division 1/2, as well as Class III applications, ensuring broad regulatory coverage.
Resources include the SP3D Design Package for EDS and EFS explosion-proof stations, the ‘EFS control stations catalog page,’ UL certification pages, and IF 328/IF 899 instruction sheets. Catalogues and datasheets are available to streamline design, procurement, and installation.
