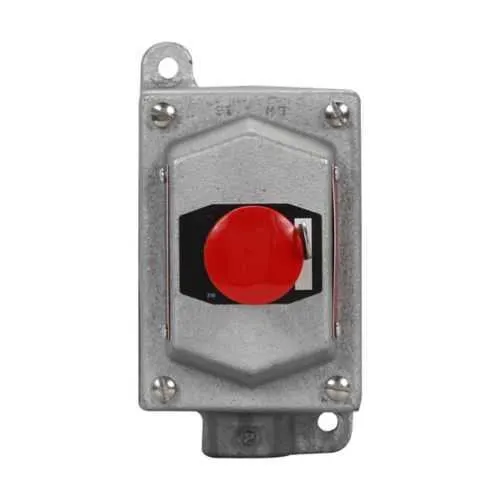

Eaton EFS2184 Explosionproof Pushbutton Station - 600 Vac

Part Number: EFS2184
EFS2184
Manufacturer
Eaton Crouse-Hinds
Part number
EFS2184
Category

Quick Summary

EFS2184 Explosionproof pushbutton control station provides rugged start-stop actuation for machinery in hazardous locations. In hazardous environments, bulky enclosures and inconsistent wiring create safety and downtime risks during maintenance. This unit carries NEC/CEC compliance and Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, along with NEMA 3, 7, and 9 enclosure protections. With a compact single-gang design, 600 Vac rating, and a durable Feraloy iron alloy body, it delivers reliable control with install-time efficiency and long-term cost savings.

Product Information

Extended Description

EFS2184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFS pushbutton control station, With pushbuttons, With one 3/4" hub, Feraloy iron alloy, Single circuit universal, 1, 1, Single-gang, 1, Dead end, 3/4", 600 Vac
Product Name
Eaton Crouse-Hinds series EFS pushbutton control station
Catalog Number
EFS2184
Product Length/Depth
5.9 in
Product Height
5.25 in
Product Width
3.5 in
Product Weight
8.1 lb
UPC
782274283807
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
3/4"
Number of circuits
1
Hub style
With one 3/4" hub
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EFS explosionproof control stations for group B applications - catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EFS2184
Feature: Compact single-gang enclosure with one 3/4" hub and a single pushbutton. Business Impact: Simplifies field wiring and reduces panel depth, accelerating installation and minimizing cabinet space. Application: Ideal for confined control panels in hazardous locations where space is at a premium. Long-tail keywords: explosionproof pushbutton station, single-gang control station, 3/4 inch hub. Feature: Hazardous location certification and NEC/CEC compliance. Business Impact: Ensures regulatory approvals, lowers commissioning risk, and supports facility-wide safety programs. Application: Oil & gas, chemical processing, and mining environments requiring proven safety approvals. Long-tail keywords: Class I Div 1 pushbutton, Class II Div 2 control, NEC/CEC certified equipment. Feature: Durable Feraloy iron alloy construction. Business Impact: Enhanced mechanical strength and impact resistance in tough industrial settings, extending service life. Application: Harsh factory floors, off-shshore units, and plant exteriors. Long-tail keywords: feraloy enclosure material, explosionproof body, rugged control stations. Feature: 600 Vac voltage rating and single-device operation. Business Impact: Supports standard industrial controls with safe actuation in high-voltage networks, reducing wiring complexity. Application: General-purpose control of motors and actuators in hazardous zones. Long-tail keywords: 600 VAC control station, high-voltage pushbutton, electrical actuation. Feature: NEMA 3, 7, 9 protection with dead-end, 1 circuit, and 1 device. Business Impact: Weather, dust, and chemical ingress protection with reliable lifetime performance. Application: Outdoor or harsh indoor environments in chemical plants, refineries, and mineral processing. Long-tail keywords: NEMA 3/7/9 rated enclosure, explosionproof control station, hazardous location actuator. Feature: Catalog pages and installation guidance available (IF 328, UL/ULC certifications). Business Impact: Streamlines procurement and reduces field questions with ready-made installation references. Application: Project design phases, procurement specs, and field commissioning. Long-tail keywords: installation instructions EDS/EFS, IF328 guidance, UL certification documents.

Get a Quick Quote for a Eaton Crouse-Hinds EFS2184

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EFS2184? Enquire Now

FAQs

The EFS2184 uses a compact single-gang enclosure with a 3/4" hub, designed for hazardous locations per NEC/CEC. Installers should reference IF 328 for EDS/EFS device bodies, ensure proper gasket sealing, and mount on compatible backboxes to maintain NEMA 3/7/9 protections in Class I, II, III environments.
The unit is rated for 600 Vac with one pushbutton and one device in a single-gang enclosure. It supports standard hazardous-location control actuation, and its feraloy iron alloy body provides durability for frequent operation in demanding installations.
Yes. The EFS2184 is certified for NEC/CEC and rated for Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with NEMA ratings 3, 7, and 9, making it suitable for a wide range of hazardous-location applications.
This pushbutton control station is ideal for machine start-stop control in oil and gas facilities, chemical plants, mining sites, and other hazardous environments where reliable actuation and regulatory compliance are essential.
Its explosionproof design, durable feraloy alloy, and robust enclosure reduce maintenance intervals and downtime. The compact form factor and straightforward installation also shorten commissioning time, delivering long-term cost savings through improved uptime and safety compliance.
