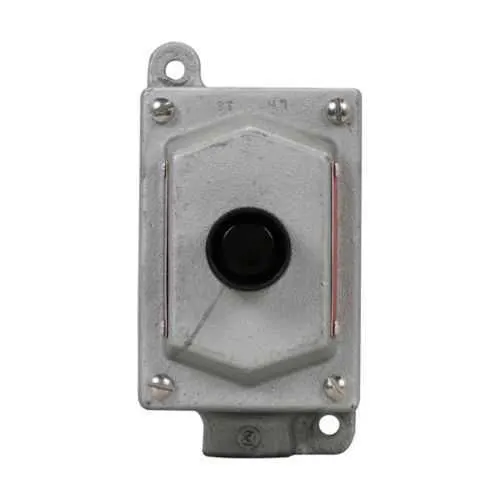

Eaton EFS3184 Explosionproof Pushbutton - Hazardous Locations
Part Number: EFS3184
Quick Summary
EFS3184 pushbutton control station enables safe control in hazardous locations for industrial automation. Maintenance teams often struggle with durable enclosures that withstand dust, moisture, and arc events in harsh plants. This unit meets Hazardous/Classified Locations area classification, NEC/CEC compliance, and rugged NEMA ratings (3, 7, 9), supporting reliable operation in tough environments. Designed for 600 Vac operation with a single-gang footprint and a 1" hub, it reduces downtime and simplifies panel customization. The compact 5.25 in width, 5.91 in height, and 3.5 in depth fit standard installations while delivering long-term safety and cost savings for process control.
Product Information
Extended Description
EFS3184 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFS pushbutton control station, With pushbuttons, With one 1" hub, Feraloy iron alloy, Single circuit universal, 1, 1, Single-gang, 1, Dead end, 1", 600 Vac
Product Name
Eaton Crouse-Hinds series EFS pushbutton control station
Catalog Number
EFS3184
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.25 in
Product Weight
8.4 lb
UPC
782274285603
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
1
Number of devices
1
Normal position
Single circuit universal
Style
Dead end
Trade size
1"
Number of circuits
1
Hub style
With one 1" hub
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations
EFS explosionproof control stations for group B applications - catalog page
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations UL certification
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies
Eaton Specification Sheet - EFS3184
Explosionproof enclosure and hazardous-location rating deliver essential safety and regulatory compliance, reducing risk and downtime in chemical, oil & gas, and mining environments. What this means for your operation is less unscheduled maintenance and faster panel refurbishment, with proven performance in Class I, II, and III locations. The 600 Vac rating and a single pushbutton device support streamlined wiring and simplified field upgrades, enabling efficient retrofits and consistent actuation in control loops. Feraloy iron alloy construction provides rugged mechanical strength and corrosion resistance, translating to longer service life in harsh industrial atmospheres and lower total cost of ownership. The 1" hub, 1-device, single-gang form factor integrates easily into existing enclosures and standard installation footprints, reducing misfit risk during installation and training time for maintenance crews. With NEC/CEC alignment and UL/CSA listings, this unit simplifies procurement while helping you maintain compliant control systems across facilities. The NEMA ratings of 3, 7, and 9 further assure reliable operation in challenging environments, supporting dependable start-stop functions in explosion-prone zones. Overall compatibility with EDS/EFS design packages and installation sheets (IF328) accelerates project timelines and minimizes field rework, delivering measurable improvements in maintenance efficiency and safety.
Get a Quick Quote for a Eaton Crouse-Hinds EFS3184
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EFS3184?
Enquire Now
FAQs
The EFS3184 is designed for single-gang installations with a 1" trade hub, aligning with standard device bodies and control station layouts. It integrates with EDS/EFS family components and is supported by installation sheets such as IF328, which streamline mounting, wiring, and field-term connections. This compatibility minimizes field adaptation and reduces installation time in new or retrofit projects.
Key specs include a 600 Vac voltage rating, one pushbutton, one device, and single-gang enclosure. The unit is built for hazardous environments and supports a normal position of single circuit universal with a dead-end style. Hub style is with one 1" hub, and the overall footprint is suited for compact control stations in space-constrained panels.
Yes. The EFS3184 carries NEC hazardous ratings including Class I, Division 1 and Division 2, along with Class II, Division 1 and Division 2, and Class III. It’s intended for Hazardous/Classified Locations and provides the protection and certifications required to comply with NEC/CEC standards in explosion-prone settings.
The unit uses a Feraloy iron alloy enclosure, rated NEMA 3, 7, and 9, and NEC/CEC standards alignment to meet rigorous safety and compliance requirements. UL certification corroborates suitability for hazardous locations. This combination reduces regulatory risk, enhances worker safety during operation, and supports consistent auditing and documentation across facilities.
Investing in the EFS3184 yields lower maintenance costs due to robust explosionproof construction, corrosion resistance, and longer service life in harsh climates. Fewer field replacements and reduced downtime during start-stop cycles lead to faster commissioning, less spare-part inventory, and improved process reliability, delivering a favorable ROI over traditional non-explosionproof pushbutton stations.
