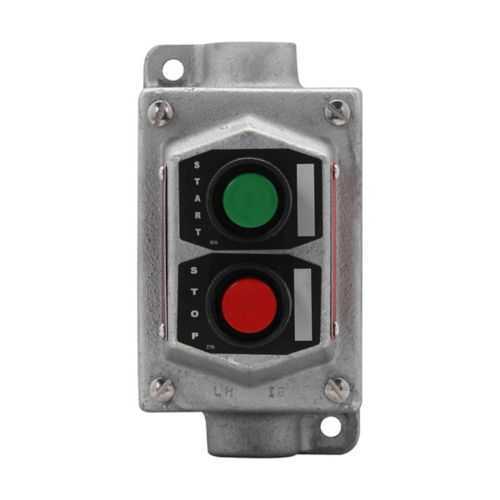

Eaton EFSC115 Pushbutton Control Station - Explosionproof

Part Number: EFSC115
EFSC115
Manufacturer
Eaton Crouse-Hinds
Part number
EFSC115
Category

Quick Summary

EFSC115 is a pushbutton control station designed for hazardous locations in industrial facilities. Engineers often struggle to find safe, compliant enclosures that fit tight spaces while withstanding harsh conditions. This unit carries NEC/CEC compliance and hazardous-location approvals, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, all housed in a rugged NEMA 3, 7, 9 enclosure. Two 1/2-inch hubs support through-feed wiring and simplify conduit management, while the 600 Vac rating delivers reliable control power for demanding applications. The compact single-gang footprint and two pushbuttons make installation straightforward, reducing panel space and maintenance costs in oil & gas, chemical processing, and mining environments.

Product Information

Extended Description

EFSC115 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFS pushbutton control station, With pushbuttons, With two 1/2" hubs, Feraloy iron alloy, Two circuit, 2, 2, Single-gang, 2, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EFS pushbutton control station
Catalog Number
EFSC115
Product Length/Depth
3.5 in
Product Height
5.91 in
Product Width
5.25 in
Product Weight
9 lb
UPC
782274290003
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit
Style
Through feed
Trade size
1/2"
Number of circuits
2
Hub style
With two 1/2" hubs
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EFS explosionproof control stations for group B applications - catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EFSC115
The EFSC115 enclosure is designed for hazardous locations, delivering a safer, compliant environment and reducing risk of ignition in oil & gas and chemical processing settings. This explosionproof construction directly translates to lower incident potential and simplified regulatory audits in high-risk facilities. Through-feed wiring with two 1/2" hubs minimizes field wiring time and improves reliability by shortening conduit runs, which accelerates panel upgrades and reduces labor costs during maintenance windows. With two pushbuttons and two devices at 600 Vac, operators gain precise, two-circuit control without added cabinets or external accessories, improving reliability and reducing footprint in restricted panels. The feraloy iron alloy body supplies rugged durability against impact and corrosion, extending service life and lowering lifecycle maintenance. NEC/CEC compliance, hazardous-location ratings, and NEMA 3 7 9 protection provide confidence for continuous operation in demanding environments, while compatibility with standard installation practices and IF328 documentation supports fast, risk-averse commissioning.

Get a Quick Quote for a Eaton Crouse-Hinds EFSC115

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EFSC115? Enquire Now

FAQs

EFSC115 installs as a single-gang pushbutton control station with two 1/2" hubs for through-feed wiring. When wiring for Class I, Division 1 locations, mount per EN/NEC guidelines, ensure the enclosure remains sealed against dust and moisture, and route conductors through the hubs to minimize bend radii. Follow IF328 documentation for specific body and mounting instructions to ensure compliance and maintain hazardous-area integrity.
EFSC115 provides a 600 Vac rating with two pushbuttons controlling two devices. It is designed for single-gang installation, through-feed wiring, and uses a 1/2 inch trade size with two hubs. This configuration supports two circuits in a compact, explosionproof enclosure suitable for hazardous locations, aligning with NEC/CEC requirements.
Yes. EFSC115 is explicitly configured with two 1/2" hubs and a through-feed design, allowing straightforward conduit routing and simplified wiring during installation. This setup helps reduce field wiring time and improves serviceability, especially in confined or hazardous environments where space optimization and reliability are critical.
EFSC115 supports NEC/CEC compliance and hazardous-location classifications, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with a NEMA rating of 3, 7, 9. This combination ensures regulatory alignment and robust protection in hazardous environments such as oil & gas, chemical processing, and mining.
EFSC115’s feraloy iron alloy enclosure and explosionproof design reduce wear and ignition risk, lowering maintenance costs and downtime. Its compact, two-pushbutton, two-device configuration simplifies training and replacements. Over the lifecycle, this leads to lower total cost of ownership, improved uptime, and faster fault resolution in demanding facilities.
