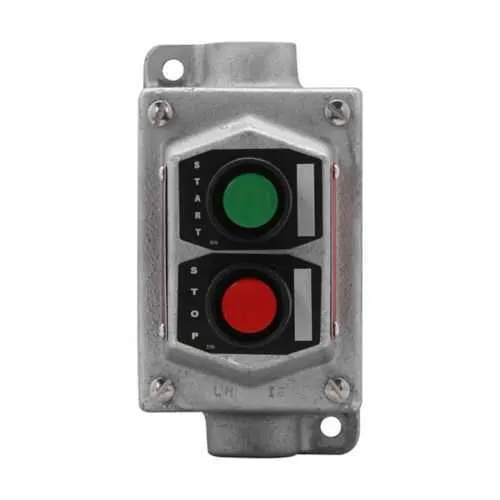

Eaton Crouse-Hinds EFSC1190 Pushbutton Control Station - Hazardous/Classified Locations

Part Number: EFSC1190
EFSC1190
Manufacturer
Eaton Crouse-Hinds
Part number
EFSC1190
Category

Quick Summary

Pushbutton Control Station EFSC1190 is a rugged, explosion-proof interface for local control in hazardous locations. In tough industrial environments, engineers face frequent maintenance, wiring errors, and safety concerns that disrupt uptime. This design delivers NEC/CEC compliance and supports Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, with a NEMA 3, 7, and 9 enclosure. By combining two pushbuttons with through-feed capability in a single-gang body, it enables fast, safe installation and easier field servicing, translating to reduced downtime and lower lifecycle costs for oil, gas, chemical, and mining facilities.

Product Information

Extended Description

EFSC1190 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EFS pushbutton control station, With pushbuttons, With two 1/2" hubs, Feraloy iron alloy, Two circuit universal, 2, 2, Single-gang, 2, Through feed, 1/2", 600 Vac
Product Name
Eaton Crouse-Hinds series EFS pushbutton control station
Catalog Number
EFSC1190
Product Length/Depth
5.9 in
Product Height
5.25 in
Product Width
3.5 in
Product Weight
7.35 lb
UPC
782274292403
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Enclosure type
With pushbuttons
Voltage rating
600 Vac
Number of gangs
Single-gang
Number of pushbuttons
2
Number of devices
2
Normal position
Two circuit universal
Style
Through feed
Trade size
1/2"
Number of circuits
2
Hub style
With two 1/2" hubs
Material
Feraloy iron alloy
SP3D Design Package - EDS and EFS Explosionproof Control Stations EFS explosionproof control stations for group B applications - catalog page EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification EDS and EFS Explosionproof Pushbutton, Pilot Light, and Selector Switch Control Stations Canadian certification IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies IF 328 - EDS, EFS, EDSC and EFSC Single- and Two-gang Device Bodies Eaton Specification Sheet - EFSC1190
Feature → Business Impact → Application: The EFSC1190 uses a Feraloy iron alloy enclosure to withstand harsh environments, delivering superior durability and longevity in hazardous locations. This reduces maintenance frequency and spare parts costs while meeting stringent safety standards; ideal for continuous operation in chemical plants and refineries. Feature → Through-feed design with two 1/2" hubs enables simple wiring and clean cable management, cutting installation time by hours and minimizing wiring errors during energization; perfect for retrofit projects or new builds in automated lines. Feature → Two-circuit universal capability with 2 devices and 2 pushbuttons supports common control schemes without needing separate interlocks, improving control reliability in conveyor systems and batch processing. Feature → 600 Vac voltage rating and NEC/CEC compliance ensure safe switching of motor loads and control circuits, reducing risk of arcing and improving regulatory adherence; suitable for heavy machinery and hazardous area installs. Feature → NEMA 3, 7, 9 compatibility provides protection against dust, water, and explosive atmospheres, enabling outdoor or indoor installations in mining and offshore environments without enclosure upgrades. Feature → Compatibility with EDS/EFS family devices and installation sheets (IF 328/IF 899) simplifies procurement and field servicing, reducing downtime and training needs for maintenance teams.

Get a Quick Quote for a Eaton Crouse-Hinds EFSC1190

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EFSC1190? Enquire Now

FAQs

EFSC1190 is designed for seamless integration with the Crouse-Hinds EFS family and compatible single- and two-gang device bodies. Installation guidance references IF 328 and IF 899 sheets, facilitating correct mounting, through-feed wiring, and hub connections. This reduces field modification needs and ensures correct clearance and protection in hazardous locations.
EFSC1190 carries NEC/CEC certification for Hazardous/Classified Locations with Class I Division 1 and 2, Class II Division 1 and 2, and Class III ratings, along with NEMA 3, 7, and 9 protection. This makes it suitable for oil and gas, chemical processing, mining, and offshore environments where explosive atmospheres and severe conditions are present.
The EFSC1190 features a 600 VAC voltage rating, 2 pushbuttons, 2 devices, and a 1/2" trade size. Its two-circuit universal design supports common control schemes, making it suitable for switching motor loads and process equipment in hazardous areas while maintaining control reliability and safety.
Its explosionproof construction (Feraloy iron alloy enclosure), paired with 600 VAC capability and robust enclosure ratings (NEMA 3, 7, 9), delivers reliable operation in harsh environments. The two-pushbutton, through-feed design simplifies wiring and maintenance, reducing downtime and ensuring regulatory compliance in critical plant areas.
Follow Eaton installation guides (IF 328/IF 899) for single- and two-gang bodies and through-feed wiring with two 1/2" hubs. Regular inspections should verify hub seals, pushbutton actuation, and enclosure integrity. Use UL/Canadian certification references from the linked materials to ensure ongoing compliance and safe maintenance practices.
