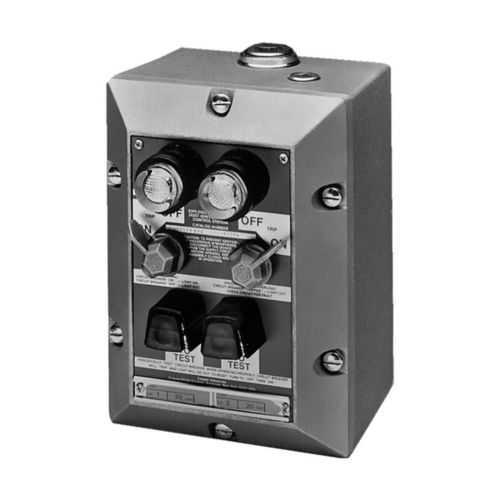

Eaton EGF11EPD20 Ground Fault Station - Hazardous Locations
Part Number: EGF11EPD20
Quick Summary
Eaton EGF11EPD20 ground fault control station provides reliable protection for hazardous-location control panels. Installers often face space constraints, corrosion, and lengthy commissioning when selecting equipment for harsh environments. This unit carries NEC/CEC certifications and hazardous location ratings, including NEMA 12, 7, 3, and 9, giving you confidence in compliance and enclosure integrity. With a 20A, 120V, single-pole design and copper-free aluminum housing, it delivers durable protection while simplifying wiring and maintenance. Leveraging these specifications translates to faster installs, reduced downtime, and predictable total cost of ownership for industrial automation projects.
Product Information
Extended Description
EGF11EPD20 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EGF ground fault control station, 20A, Copper-free aluminum, 1 breaker, Single-pole, 30 mA, 120 Vac
Product Name
Eaton Crouse-Hinds series EGF ground fault control station
Catalog Number
EGF11EPD20
Product Length/Depth
6.88 in
Product Height
9.88 in
Product Width
7.81 in
Product Weight
14 lb
UPC
782274877907
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1 Class II, Division 2 Class I, Division 1
NEMA Rating
12 7 3 9
Number of breakers
1
Number Of Poles
Single-pole
Trip
30 mA
Amperage Rating
20A
Material
Copper-free aluminum
Voltage rating
120 Vac
EGF Series Explosionproof Ground Fault Control Stations catalog page
EGF Explosionproof Ground Fault Control Stations Canadian certification
EGF Explosionproof Ground Fault Control Stations Canadian certification
IF 1289 - EGF Series Grount Fault Control Station
Eaton Specification Sheet - EGF11EPD20
Feature → Business Impact → Application: The EGF11EPD20 uses a 20A amperage rating with a single-pole, 30 mA trip at 120 VAC, enabling quick fault isolation and personnel protection in demanding environments. This translates to measurable safety improvements and minimized downtime in hazardous-area control panels. Application: explosion-proof stations in chemical, oil & gas, and manufacturing facilities that require reliable ground fault detection without compromising speed or ease of service. Feature → Business Impact → Application: Copper-free aluminum construction enhances corrosion resistance and reduces weight, lowering long-term maintenance costs and easing installation in damp or corrosive environments. Application: outdoor or harsh indoor enclosures where enclosure integrity matters for uptime and safety. Feature → Business Impact → Application: NEC/CEC compliance and Hazardous/Classified Locations ratings, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, plus NEMA 12/7/3/9 compatibility, giving engineers confidence for approvals and audits. Application: retrofits or new builds requiring robust regulatory alignment and versatile enclosure compatibility. Feature → Business Impact → Application: 6.88 in length, 9.88 in height, 7.81 in width, and a 14 lb weight, enabling easier integration into standard panels and space-constrained installations. Application: compact control rooms, panel boards, and hazardous-area cabinets where size and weight matter. Feature → Business Impact → Application: Comprehensive documentation—IF 1289 installation sheet and Eaton specification sheet—facilitates faster commissioning and consistent field practices. Application: technicians seeking clear wiring guidance and verified installation steps during site work.
Get a Quick Quote for a Eaton Crouse-Hinds EGF11EPD20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EGF11EPD20?
Enquire Now
FAQs
EGF11EPD20 is designed for Class I and II hazardous locations with NEC/CEC compliance and NEMA 12/7/3/9 compatibility. When installing, ensure proper enclosure rating, confirm 120 VAC supply, and wire a single-pole, 30 mA trip breaker. Use the IF 1289 instruction sheet for step-by-step wiring and verify clearances per enclosure guidelines to maintain safe operation.
The unit provides a 20A amperage rating, 120 VAC operation, single-pole configuration, and a 30 mA ground-fault trip. These specs enable fast fault detection with minimal nuisance trips, improving personnel safety and reducing unplanned outages in hazardous environments. The copper-free aluminum enclosure further enhances durability against corrosive atmospheres.
Yes. EGF11EPD20 carries NEC/CEC standards for hazardous locations and supports NEC hazardous ratings across Class I Division 1 and 2, as well as Class II and Class III scenarios. Its construction and NEMA ratings ensure compliant performance in explosive atmospheres, making it suitable for oil, gas, chemical, and other high-risk industrial settings.
This model is certified for hazardous locations per NEC/CEC and supports classifications listed in the NEMA ratings. Documentation includes the IF 1289 installation sheet, the Eaton EGF11EPD20 specification sheet, and the EGF catalog page, plus Canadian certifications. These resources assist with audits, safety reviews, and standardized field practices.
The 20A 120V design with copper-free aluminum housing reduces maintenance costs through corrosion resistance and longer service life in harsh environments. Quick fault isolation minimizes downtime, while NEC/CEC compliance streamlines regulatory approvals. Overall, expect lower lifecycle costs and higher system uptime in hazardous-location automation projects.
