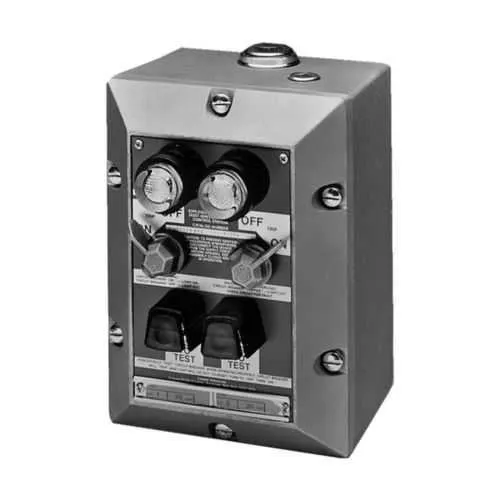

Eaton EGF11EPD30 Ground Fault Station - Hazardous Locations
Part Number: EGF11EPD30
Quick Summary
Eaton EGF11EPD30 ground fault station provides reliable fault protection for hazardous-location electrical panels. Nuisance trips and complex installations in petrochemical plants, mining sites, or offshore facilities slow projects and increase risk; this unit addresses those pain points with precise 30 mA ground fault protection and a 30 A rating. It is designed to meet NEC/CEC standards and is UL-certified for use in hazardous locations, with NEMA ratings of 7, 9, 12, 3 for rugged service. For engineering and procurement teams, the system simplifies panel builds, minimizes wiring errors, and reduces maintenance downtime. Copper-free aluminum construction offers corrosion resistance and lighter handling, translating into lower lifecycle costs and easier field retrofit.
Product Information
Extended Description
EGF11EPD30 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EGF ground fault control station, 30A, Copper-free aluminum, 1 breaker, Single-pole, 30 mA, 120 Vac
Product Name
Eaton Crouse-Hinds series EGF ground fault control station
Catalog Number
EGF11EPD30
Product Length/Depth
6.88 in
Product Height
9.88 in
Product Width
7.81 in
Product Weight
14.8 lb
UPC
782274877921
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
7 9 12 3
Number of breakers
1
Number Of Poles
Single-pole
Trip
30 mA
Amperage Rating
30A
Material
Copper-free aluminum
Voltage rating
120 Vac
EGF Series Explosionproof Ground Fault Control Stations catalog page
EGF Explosionproof Ground Fault Control Stations UL certification
EGF Explosionproof Ground Fault Control Stations UL certification
IF 1289 - EGF Series Grount Fault Control Station
Eaton Specification Sheet - EGF11EPD30
Feature: 30 mA ground fault trip, 30 A rating, single-pole, 1 breaker. Business Impact: Delivers precise fault detection and fast isolation, reducing arc-flash exposure and unplanned outages. Application: Ideal for control panels in hazardous locations such as chemical plants, refineries, and mining sites. Feature: Copper-free aluminum enclosure. Business Impact: Enhances corrosion resistance in harsh environments while reducing weight, cutting installation time and handling costs. Application: Offshore platforms, chemical processing, and other aggressive environments. Feature: NEC/CEC compliance, UL certification, and NEMA ratings. Business Impact: Enables compliant system integration and reliable operation in Class I/II/III locations, lowering regulatory risk. Application: New builds and upgrades in hazardous areas. Feature: Compact dimensions and weight (6.88 in depth, 9.88 in height, 7.81 in width; 14.8 lb). Business Impact: Easier panel integration and retrofit, saving cabinet space and labor. Application: Retrofit projects and space-constrained control rooms. Feature: Documentation and installation support. Business Impact: Reduces design and commissioning time with available IF 1289 instructions, catalog pages, and datasheets. Application: Engineering design workflows and field installation.
Get a Quick Quote for a Eaton Crouse-Hinds EGF11EPD30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EGF11EPD30?
Enquire Now
FAQs
Yes. The EGF11EPD30 is designed for 1 breaker, single-pole operation with a 30 A rating and 30 mA trip, and it fits typical enclosure footprints used in Crouse-Hinds installations. Its dimensions (6.88 in depth, 9.88 in height, 7.81 in width) and weight (14.8 lb) support straightforward retrofit and panel integration, with mounting guidance documented in IF 1289.
The unit aligns with NEC/CEC standards and is UL-certified for hazardous locations. It carries NEMA ratings 7, 9, 12, and 3, and is classified for Hazardous/Classified Locations, supporting Class I, Division 1 and related divisions. These certifications enable safer installation and regulatory compliance in challenging industrial environments.
Key specs include a 30 A amperage rating, 30 mA trip sensitivity, a single-pole design with one breaker, and a 120 VAC supply. This combination provides reliable ground fault protection while maintaining compatibility with standard control panels and equipment operating in hazardous locations.
Access the EGF Series catalog page, UL certification pages, the IF 1289 installation sheet, and the Eaton specification sheet for EGF11EPD30. These documents support design, procurement, and commissioning activities, reducing risk during installation and enabling faster project timelines.
The device reduces downtime through faster fault isolation and fewer nuisance trips, while its copper-free aluminum enclosure improves corrosion resistance and lowers weight. Combined with regulatory-compliant design and streamlined documentation, this translates to lower lifecycle costs, simpler maintenance, and safer, more reliable operation in hazardous-area installations.
