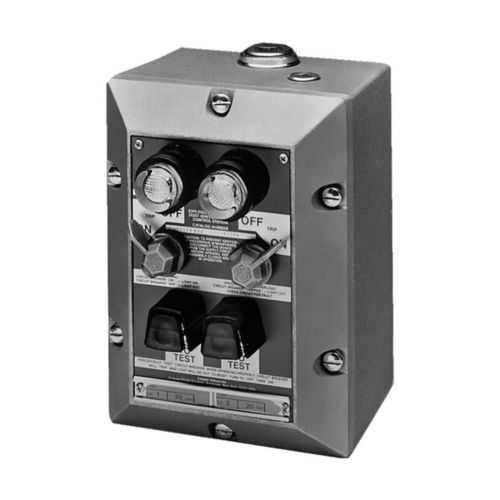

Eaton EGF12EPD30 Ground Fault Station - Hazardous Locations
Part Number: EGF12EPD30
Quick Summary
EGF12EPD30 ground fault control station detects ground faults in hazardous-area electrical systems for industrial automation. Maintenance teams struggle with nuisance trips, downtime, and compliance challenges in hazardous locations. This unit aligns with NEC/CEC standards, Hazardous/Classified Locations area classification, and Canadian certification readiness. It operates at 120/240 Vac, provides a 30 mA trip, and uses copper-free aluminum for lighter, corrosion-resistant installations. With one breaker and two-pole configuration, installation is straightforward in NEMA 12/7/3/9 enclosures, delivering safer, faster protection and lower lifecycle costs. By simplifying fault management and enabling faster diagnostics, it helps engineering teams meet project schedules and budget targets.
Product Information
Extended Description
EGF12EPD30 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EGF ground fault control station, 30A, Copper-free aluminum, 1 breaker, Two-pole, 30 mA, 120/240 Vac
Product Name
Eaton Crouse-Hinds series EGF ground fault control station
Catalog Number
EGF12EPD30
Product Length/Depth
6.88 in
Product Height
9.88 in
Product Width
7.81 in
Product Weight
16 lb
UPC
782274877969
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class III Class II, Division 1 Class II, Division 2
NEMA Rating
12 7 3 9
Number of breakers
1
Number Of Poles
Two-pole
Trip
30 mA
Amperage Rating
30A
Material
Copper-free aluminum
Voltage rating
120/240 Vac
EGF Series Explosionproof Ground Fault Control Stations catalog page
EGF Explosionproof Ground Fault Control Stations Canadian certification
EGF Explosionproof Ground Fault Control Stations Canadian certification
IF 1289 - EGF Series Grount Fault Control Station
Eaton Specification Sheet - EGF12EPD30
Feature: Ground fault detection with a 30 mA trip. Business Impact: Rapid fault isolation reduces unplanned outages and protects personnel in hazardous environments. Application: Oil, gas, and chemical processing facilities where fast fault clearance is critical for safety and uptime. The system supports NEC/CEC compliance, improving audit readiness and risk reduction. Feature → Business Impact → Application. Feature: Copper-free aluminum enclosure. Business Impact: Lighter weight and corrosion resistance lower installation time and maintenance costs; simplifies field retrofit in harsh environments. Application: Offshore platforms and on-site plants with corrosive exposure. Feature → Business Impact → Application. Feature: Two-pole, single-breaker design rated for 30 A. Business Impact: Simplified wiring and predictable coordination with existing control schemes; reduces panel space and wiring errors. Application: Control panels and switchgear assemblies in industrial plants. Feature → Business Impact → Application. Feature: 120/240 Vac operation. Business Impact: Broad compatibility with standard plant power systems, minimizing additional power conversion equipment and cost. Application: Chemical plants, mining operations, refineries. Feature: NEMA rated (12, 7, 3, 9) enclosures and hazardous-location certification. Business Impact: Regulatory compliance and safer installation in harsh environments, lowering insurance and incident costs. Application: Any installation in hazardous areas requiring rugged protection.
Get a Quick Quote for a Eaton Crouse-Hinds EGF12EPD30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EGF12EPD30?
Enquire Now
FAQs
The EGF12EPD30 is designed for hazardous locations with a copper-free aluminum enclosure and NEMA ratings suitable for Class I, Division 1 and related hazardous classifications. Its two-pole, single-breaker design simplifies wiring, reduces panel footprint, and supports straightforward mounting in standard enclosures, speeding up retrofit projects and minimizing field complexity.
This unit aligns with NEC/CEC standards and carries Hazardous/Classified Locations area classification. It also includes Canadian certification readiness through UL-related channels. These certifications ensure regulatory compliance, safer operation in hazardous environments, and smoother acceptance in multi-region projects.
Yes. The EGF12EPD30 is designed for 120/240 VAC systems and two-pole configurations, and it integrates with Crouse-Hinds EGF accessories. Its copper-free aluminum construction provides lightweight installation while maintaining mechanical integrity, enabling seamless expansion or retrofit alongside existing Eaton protection devices.
In practice, this unit delivers faster fault isolation with a 30 mA trip, reducing nuisance trips and downtime. Its rugged enclosure and certified hazardous-location ratings support safer installations, while the compact footprint and lightweight material shorten installation time and lower maintenance costs. Plants benefit from improved safety, regulatory conformity, and predictable protection of critical equipment.
Maintenance is minimized by the copper-free aluminum construction, which resists corrosion and reduces enclosure wear. The single-breaker, two-pole setup simplifies inspection and testing, while NEC/CEC compliance mitigates regulatory risk. ROI improves through reduced downtime, easier retrofits, and extended service intervals in demanding hazardous environments.
