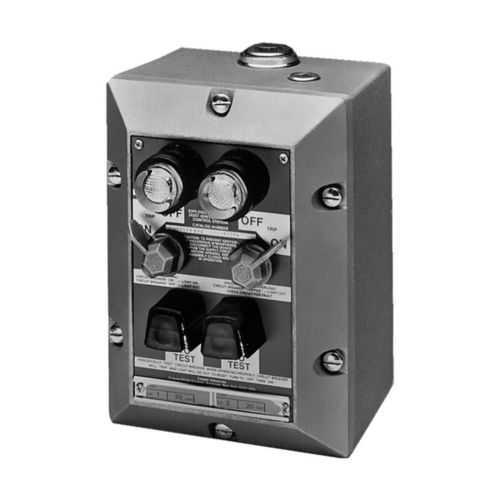

Eaton Crouse-Hinds EGF21EPD15 Ground Fault Control Station - Hazardous/Classified Locations
Part Number: EGF21EPD15
Quick Summary
EGF21EPD15 is a ground fault control station designed for hazardous-location electrical panels and protection schemes in industrial plants. Many engineers struggle to maintain safety compliance and fast fault isolation in hazardous-location environments. This unit is listed for Hazardous/Classified Locations, complies with NEC/CEC standards, and offers robust NEMA protection for harsh settings. For business value, it integrates with standard control panels and supports reliable ground fault protection, reducing downtime and maintenance costs. With Eaton's installation guides and field support, commissioning is faster and less error-prone. Its compact footprint and copper-free aluminum enclosure simplify retrofits and minimize installed cost. Secondary benefits include enhanced safety and long-term reliability of explosion-proof control systems for critical process lines.
Product Information
Extended Description
EGF21EPD15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EGF ground fault control station, 15A, Copper-free aluminum, 2 breakers, Single-pole, 30 mA, 120 Vac
Product Name
Eaton Crouse-Hinds series EGF ground fault control station
Catalog Number
EGF21EPD15
Product Length/Depth
6.88 in
Product Height
9.88 in
Product Width
7.81 in
Product Weight
15.7 lb
UPC
782274877976
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class III Class I, Division 1 Class II, Division 2 Class I, Division 2
NEMA Rating
12 3 7 9
Number of breakers
2
Number Of Poles
Single-pole
Trip
30 mA
Amperage Rating
15A
Material
Copper-free aluminum
Voltage rating
120 Vac
EGF Series Explosionproof Ground Fault Control Stations catalog page
EGF Explosionproof Ground Fault Control Stations UL certification
EGF Explosionproof Ground Fault Control Stations UL certification
IF 1289 - EGF Series Grount Fault Control Station
Eaton Specification Sheet - EGF21EPD15
Copper-free aluminum enclosure provides corrosion resistance in chemical, marine, and outdoor environments, extending service life and reducing maintenance cycles. This translates to lower lifecycle costs and higher uptime for critical processes such as reactors and material handling in hazardous areas. Two single-pole breakers deliver dedicated fault protection per circuit with a 30 mA ground fault trip. This precise protection limits arc faults and enables rapid isolation, minimizing unplanned outages in conveyors and pumps. 120 VAC operation aligns with standard control power supplies and wiring practices, enabling easy integration with existing MCCs and control panels. Certified for Hazardous/Classified Locations and NEC/CEC compliance ensures safe operation in Class I/II environments, meeting safety compliance requirements for refineries, mining, and chemical processing. NEMA ratings 12, 3, 7, and 9 provide protection against dust, water, and harsh conditions, allowing installation in washdown areas and dusty environments. Comprehensive installation instructions, UL certifications, and catalog pages expedite procurement, testing, and regulatory audits, helping teams stay on schedule and within budget.
Get a Quick Quote for a Eaton Crouse-Hinds EGF21EPD15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EGF21EPD15?
Enquire Now
FAQs
Yes. The EGF21EPD15 is designed to integrate with standard control panels and Eaton/Crouse-Hinds enclosures used in hazardous locations. It features two single-pole 15A breakers with a 30 mA trip and 120 VAC operation, matching common MCC and panel wiring practices. Refer to IF 1289 installation sheets for step-by-step guidance and ensure NEC/CEC compliance during commissioning.
Core specs include two 15A single-pole breakers, a 30 mA ground fault trip, and 120 VAC operation. The enclosure is Copper-free aluminum, with area classification for Hazardous/Classified Locations and NEC/CEC standards. It carries UL certification for hazardous locations and provides NEMA ratings 12, 3, 7, and 9, delivering reliable protection against dust, water, and harsh environments.
This unit suits industries operating in hazardous locations such as oil & gas, chemical processing, mining, water treatment, and heavy manufacturing. It protects critical load circuits from ground faults while enabling rapid isolation, reducing risk to personnel and equipment. Its rugged construction supports outdoor, washdown, and dusty environments common in these sectors.
The EGF21EPD15 is listed for Hazardous/Classified Locations and adheres to NEC/CEC standards. It features NEC hazardous ratings across Class I, II, and III locations and provides NEMA ratings 12, 3, 7, and 9 for varied environmental conditions. UL certifications and installation documentation further support formal compliance and audits in regulated facilities.
With a copper-free aluminum enclosure and proven hazardous-location ratings, the unit offers extended service life and reduced maintenance in aggressive environments. Its two-breaker configuration simplifies fault isolation, minimizing downtime. Combined with Eaton’s installation guides, the solution accelerates commissioning and reduces total cost of ownership through predictable reliability and streamlined regulatory readiness.
