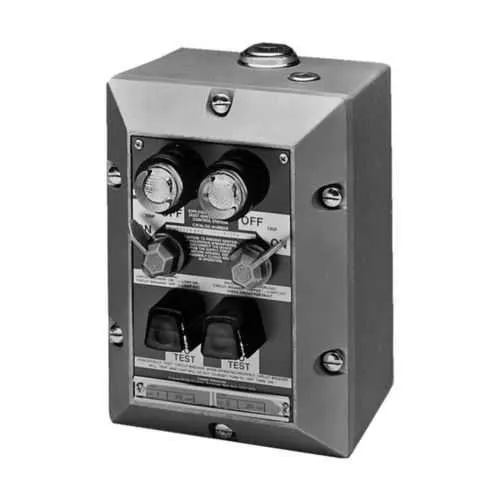

Eaton Crouse-Hinds EGF21EPD30 Ground Fault Control Station - Hazardous
Part Number: EGF21EPD30
Quick Summary
Ground fault control station for hazardous locations protects equipment by quickly detecting leakage in power circuits. Maintenance teams struggle with nuisance trips and challenging wiring in explosion-proof enclosures. Designed for NEC/CEC compliance with hazardous-locations ratings including Class I/II, Division 1 and 2, Class III, and compatible with NEMA 12/3/7/9 enclosures. In practice, engineers value rapid commissioning, clear fault signaling, and robust protection against arc faults in demanding environments. By combining a 30 mA trip with copper-free aluminum housing and two single-pole breakers, the EGF21EPD30 reduces wiring complexity, limits downtime, and simplifies serviceability, delivering safer installations and lower total cost of ownership in industrial automation projects.
Product Information
Extended Description
EGF21EPD30 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EGF ground fault control station, 30A, Copper-free aluminum, 2 breakers, Single-pole, 30 mA, 120 Vac
Product Name
Eaton Crouse-Hinds series EGF ground fault control station
Catalog Number
EGF21EPD30
Product Length/Depth
6.88 in
Product Height
9.88 in
Product Width
7.81 in
Product Weight
17.49 lb
UPC
782274878003
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class II, Division 1 Class III Class I, Division 1 Class I, Division 2
NEMA Rating
12 3 7 9
Number of breakers
2
Number Of Poles
Single-pole
Trip
30 mA
Amperage Rating
30A
Material
Copper-free aluminum
Voltage rating
120 Vac
EGF Series Explosionproof Ground Fault Control Stations catalog page
EGF Explosionproof Ground Fault Control Stations UL certification
EGF Explosionproof Ground Fault Control Stations UL certification
IF 1289 - EGF Series Grount Fault Control Station
Eaton Specification Sheet - EGF21EPD30
Feature: 30 A amperage rating with two breakers and 120 Vac supply → Business Impact: Enables reliable protection for dual circuits in control panels while maintaining standard industrial voltage compatibility → Application: Control stations in hazardous locations such as chemical plants and refineries. Feature: 30 mA ground-fault trip on a copper-free aluminum enclosure → Business Impact: Faster fault isolation reduces exposure risk and improves safety compliance, lowering incident-related downtime → Application: Explosion-proof enclosures and motor-control centers in harsh environments. Feature: Copper-free aluminum offers corrosion resistance and lighter weight than traditional copper components → Business Impact: Easier handling during installation and reduced mounting strain, translating to faster commissioning → Application: Outdoor and indoors control stations exposed to corrosive atmospheres. Feature: Two single-pole breakers in a compact 6.88 in L x 9.88 in H x 7.81 in W package → Business Impact: Streamlined wiring and compact footprint reduce cabinet space needs and facilitate retrofits → Application: Integration into existing automation architectures without large enclosure upgrades. Feature: NEC/CEC compliance and NEMA ratings including 12, 3, 7, 9 → Business Impact: Enhances regulatory acceptance and warranty coverage while supporting risk-managed deployments → Application: New installations and modernization projects in hazardous classes. Insight: Industry-standard documentation and installation sheets (IF 1289) support quick start-up and consistent maintenance across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EGF21EPD30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EGF21EPD30?
Enquire Now
FAQs
For hazardous locations, mount the EGF21EPD30 in compliant enclosures (NEMA 12/3/7/9) and follow the IF 1289 instruction sheet for wiring, grounding, and terminations. Ensure the unit is protected from explosion sources and correctly labeled for Class I/II, Division 1 and 2, Class III locations to maintain regulatory compliance.
The device provides 30 A amperage rating, 120 Vac operating voltage, two single-pole breakers, and a 30 mA ground-fault trip. It uses copper-free aluminum housing and is designed for hazardous-area installations with compact dimensions suitable for standard control panels.
Yes. It is designed to meet NEC/CEC requirements for hazardous locations and is compatible with NEMA enclosures rated 12, 3, 7, and 9, enabling compliant installations in a wide range of industrial environments from chemical plants to oil and gas facilities.
Ground fault protection quickly detects leakage current and interrupts power, reducing shock risk to personnel and preventing arc-fault events that can cause unplanned downtime. This translates to safer operation, faster fault isolation, and lower maintenance costs over the system’s lifecycle in continuous-process or safety-critical applications.
Official resources include the IF 1289 installation sheet, EGF series catalog page, UL certification pages, and the Eaton specification sheet for EGF21EPD30. Access these documents to verify installation steps, compliance details, and electrical specifications before field deployment.
