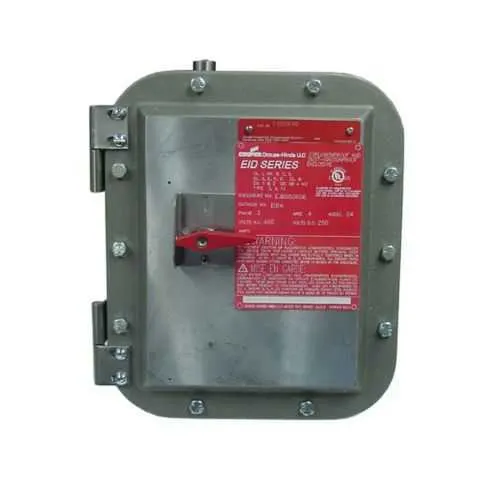

Eaton EIDA3060 Disconnect Switch - 60A, Hazardous Locations
Part Number: EIDA3060
Manufacturer
Eaton Crouse-Hinds
Part number
EIDA3060
Quick Summary
The EIDA3060 disconnect switch is a rugged power-control device designed to safely isolate circuits in industrial equipment. Maintenance teams struggle with hazardous locations and non-fused devices that complicate safe shutdowns and compliance. This unit carries NEC/CEC compliance, and hazardous-location ratings including Class I Division 1 and Zone 1, plus compatible NEMA 3/3R/4/7/9 enclosures. By combining a robust 60A rating with copper-free aluminum construction and broad voltage support, the EIDA3060 delivers reliable isolation, faster maintenance, and long-term cost savings. This makes it a compelling choice for chemical plants, oil and gas facilities, and water treatment plants where downtime is costly. The option to specify the explosion-proof design and hazardous-location ratings helps standardize safety across your site. With installation resources and 3D drawings available, engineers can plan fits and wiring with confidence.
Product Information
Extended Description
EIDA3060 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EID disconnect switch, 60A, With switch, Non-fused, 10 HP/20 HP/40 HP, Copper-free aluminum, 240-600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EID disconnect switch
Catalog Number
EIDA3060
Product Length/Depth
10.47 in
Product Height
12.47 in
Product Width
9.65 in
Product Weight
62 lb
UPC
662276144736
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure type
With switch
Fusing
Non-fused
Amperage Rating
60A
Horsepower
10 hp/20 hp/40 hp
Material
Copper-free aluminum
Eaton Crouse-Hinds EIDA3060 3D drawing
SP3D Design Package - EID Explosionproof Compact Disconnect Switches
EID Series Explosionproof, Compact Disconnect Switches Brochure
EID Series Explosionproof, Compact Disconnect Switches catalog page
EID Explosionproof, Compact Disconnect Switches Canadian certification
EID Explosionproof, Compact Disconnect Switches Canadian certification
IF 1532 - EID Disconnect Assembly
Eaton Specification Sheet - EIDA3060
Eaton Specification Sheet - EIDA3060
The EIDA3060 provides a 60A amperage rating with horsepower options of 10 hp, 20 hp, and 40 hp, enabling safe interruption of typical motor loads without over-sizing the disconnect assembly. This delivers improved protection coordination, reduced startup surges, and lower maintenance costs in demanding environments. The copper-free aluminum enclosure reduces weight and corrosion risk, improving ease of handling during maintenance and extending service life in harsh settings. Its hazardous-location certification aligns with NEC/CEC requirements, including Class I Division 1 and Zone 1, plus compatibility with NEMA 3/3R/4/7/9 enclosures, helping ensure regulatory compliance across your plant. The non-fused, with-switch design simplifies wiring decisions and downstream protection coordination for diverse circuits operating from 240–600 Vac or 250 Vdc. Documentation and CAD resources streamline design-in, installation, and commissioning, supporting faster project timelines. With a compact footprint (10.47 in L × 12.47 in H × 9.65 in W) and a 62 lb weight, installation is straightforward in constrained spaces and rugged installations alike.
Get a Quick Quote for a Eaton Crouse-Hinds EIDA3060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EIDA3060?
Enquire Now
FAQs
The EIDA3060 is designed for hazardous locations and supports NEC/CEC compliance with Class I Division 1, Zone 1 ratings, plus additional Class I/II/III configurations. It features a copper-free aluminum enclosure and is compatible with common NEMA ratings including 3, 3R, 4, 7, and 9, enabling reliable installation in petrochemical, mining, and other demanding environments.
Key specs include a 60A amperage rating with 10/20/40 HP at the specified voltages, operating from 240 to 600 Vac or 250 Vdc. It is a non-fused switch with an enclosure that comes with the switch, and it weighs 62 lb with external dimensions of 10.47 in L, 12.47 in H, and 9.65 in W.
This disconnect switch is ideal for hazardous-area motor control in chemical plants, oil and gas facilities, water treatment, mining, and other industrial processes where safe circuit isolation and compliance are essential. Its compact footprint and robust construction support reliable operation in constrained spaces and harsh environments.
The EIDA3060 meets NEC/CEC standards and hazardous-location certifications including Class I Division 1, Zone 1, Class I Division 2, Zone 2, plus NEC-listed Class II and Class III configurations. It also aligns with NEMA ratings 3, 3R, 4, 7, and 9, ensuring broad regulatory acceptance across installations.
The non-fused design reduces internal wear and simplifies upstream protection coordination, lowering maintenance complexity. Copper-free aluminum construction provides corrosion resistance and lighter handling, cutting downtime during servicing. The availability of CAD drawings and installation instructions accelerates commissioning, shortening project timelines and delivering ongoing lifecycle cost savings.
