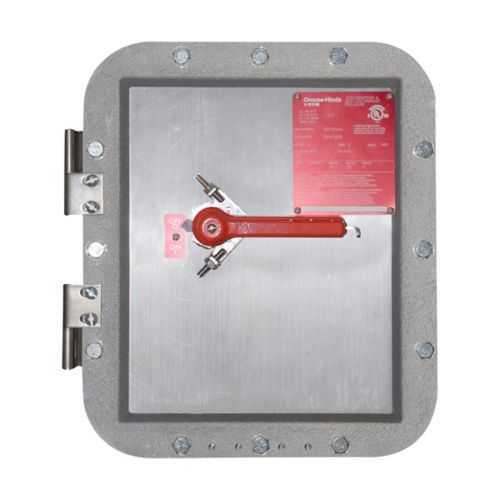

Eaton EIDAF3060 Disconnect Switch - Hazardous Locations

Part Number: EIDAF3060
EIDAF3060
Manufacturer
Eaton Crouse-Hinds
Part number
EIDAF3060
Category

Quick Summary

The EIDAF3060 disconnect switch from Eaton Crouse-Hinds provides safe isolation for electrical equipment in hazardous locations. Maintenance and operations teams often struggle with achieving reliable performance while staying compliant in Class I Division 1 and Zone 1 environments. It meets NEC/CEC compliance and supports hazardous-area classifications including Class II Division 1, Class III, helping simplify regulatory audits and risk management. In practice, customers gain a robust, easy-to-install solution that pairs with standard EID components and reduces total cost of ownership through streamlined maintenance and long-term durability.

Product Information

Extended Description

EIDAF3060 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EID disconnect switch, 60A, With switch, Fused, 10 HP/30 HP/50 HP, Copper-free aluminum, 240-600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EID disconnect switch
Catalog Number
EIDAF3060
Product Length/Depth
12.53 in
Product Height
16.53 in
Product Width
9.9 in
Product Weight
35 lb
UPC
662276473492
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure type
With switch
Fusing
Fused
Amperage Rating
60A
Horsepower
10 hp/30 hp/50 hp
Material
Copper-free aluminum
Eaton Crouse-Hinds EIDAF3060 3D drawing SP3D Design Package - EID Explosionproof Compact Disconnect Switches EID Series Explosionproof, Compact Disconnect Switches Brochure EID Series Explosionproof, Compact Disconnect Switches catalog page EID Explosionproof, Compact Disconnect Switches Canadian certification EID Explosionproof, Compact Disconnect Switches Canadian certification IF 1532 - EID Disconnect Assembly IF 1532 - EID Disconnect Assembly Eaton Specification Sheet - EIDAF3060 Eaton Specification Sheet - EIDAF3060
Feature: 60A amperage rating with fused, with-switch enclosure. Business impact: enables reliable isolation for motor loads up to 50 HP, reducing arc flash risk and downtime in critical processes. Application: suitable for chemical plants, oil & gas facilities, and mining operations where safe, compliant isolation is essential. Long-tail keywords: 60A fused disconnect, hazardous location switch, EID series, Class I Division 1. Feature: Copper-free aluminum enclosure with 35 lb weight. Business impact: delivers corrosion resistance and easier handling during installation in tight electrical rooms or outdoor cabinets, lowering labor time and maintenance costs. Application: outdoor or harsh-environment installations in refineries and chemical plants. Long-tail keywords: copper-free aluminum, lightweight enclosure, rugged control cabinet. Feature: Hazardous/Classified Locations certifications and NEC/CEC compliance. Business impact: ensures regulatory acceptance across North America, reducing compliance risk and audit effort. Application: projects in oil, gas, mining, and processing facilities requiring certified equipment. Long-tail keywords: NEC/CEC compliance, Class I Division 1, Zone 1, NEMA 3/3R/4/7/9. Feature: Wide HP and voltage range (10/30/50 HP; 240-600 VAC / 250 VDC). Business impact: supports multiple motor control scenarios from a single SKU, reducing part variety and stocking costs. Application: motor control centers and process lines needing flexible power isolation. Long-tail keywords: HP ratings, 240-600 VAC, 250 VDC, motor control. Feature: With switch enclosure and fused protection. Business impact: simplifies wiring, improves fault isolation, and speeds maintenance with clearly defined switch and fuse interfaces. Application: control panels and hazardous-area disconnects where rapid serviceability matters. Long-tail keywords: with switch, fused disconnect, installation friendly. Feature: Availability of design and installation resources (3D CAD, installation sheets, spec sheets). Business impact: accelerates engineering approvals and reduces project lead times. Application: system integrators and OEMs designing hazardous-location control schemes. Long-tail keywords: 3D CAD drawing package, SP3D design package, installation instructions.

Get a Quick Quote for a Eaton Crouse-Hinds EIDAF3060

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EIDAF3060? Enquire Now

FAQs

Install the EIDAF3060 only in approved hazardous-location enclosures per NEC/CEC and local codes. It is rated for Class I Division 1 and Zone 1, with additional Class II/III classifications. Use proper wiring methods for copper-free aluminum enclosures, maintain required clearances, and follow torque specs for fuse and switch terminals to ensure reliable isolation and safe operation during maintenance.
The EIDAF3060 provides a 60A amperage rating with HP options of 10/30/50, and supports a voltage range of 240-600 VAC and 250 VDC. It is a fused, with-switch enclosure made of copper-free aluminum, and weighs about 35 lb with overall dimensions of roughly 12.53 in L, 16.53 in H, and 9.9 in W, suitable for standard industrial installations.
The EIDAF3060 carries NEC/CEC compliance and is approved for hazardous-location service, including Class I Division 1 and Zone 1, with additional Class II Division 1 and Class III classifications. It also meets NEMA ratings 3, 3R, 4, 7, and 9, indicating robust performance in corrosive or harsh environments and alignment with UL and regional standards.
Yes. The EIDAF3060 is part of the Eaton Crouse-Hinds EID series and offers downloadable CAD resources, including 3D models and SP3D design packages. This compatibility simplifies mounting, wiring harness planning, and installation in hazardous-location systems, reducing project timelines and ensuring accurate enclosure integration with other EID components.
Deploying the EIDAF3060 enhances safety and uptime by providing robust isolation in hazardous locations, reducing arc-flash risk and simplifying regulatory audits. Its durable copper-free aluminum enclosure and broad voltage/motor HP range support flexible control, while readily available design resources shorten development time and lower overall installation costs in oil, gas, chemical, and mining environments.
