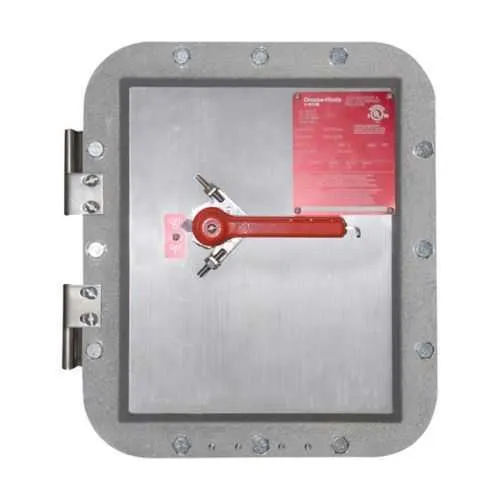

Eaton EIDBF3100 EID Disconnect Switch - Explosionproof

Part Number: EIDBF3100
EIDBF3100
Manufacturer
Eaton Crouse-Hinds
Part number
EIDBF3100
Category

Quick Summary

EIDBF3100 disconnect switch from Eaton Crouse-Hinds provides reliable isolation for hazardous-location electrical systems. Engineers and maintenance teams often struggle with safe de-energization, fault isolation, and compliant servicing in confined or explosive environments. The unit earns NEC/CEC compliance with Class I, Division 1 Zone 1 ratings, plus additional protection for Class II and III applications and key NEMA options. With a rugged copper-free aluminum enclosure and fused switching, it reduces downtime, simplifies field service, and helps you meet strict safety and regulatory requirements. In practice, this yields safer commissioning, lower lifecycle costs, and improved uptime for critical processes in harsh settings.

Product Information

Extended Description

EIDBF3100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EID disconnect switch, 100A, With switch, Fused, 20 HP/60 HP/75 HP, Copper-free aluminum, 240-600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EID disconnect switch
Catalog Number
EIDBF3100
Product Length/Depth
17.31 in
Product Height
23.31 in
Product Width
10.05 in
Product Weight
108 lb
UPC
662276488267
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure type
With switch
Fusing
Fused
Amperage Rating
100A
Horsepower
20 hp/60 hp/75 hp
Material
Copper-free aluminum
Eaton Crouse-Hinds EIDBF3100 3D drawing SP3D Design Package - EID Explosionproof Compact Disconnect Switches EID Series Explosionproof, Compact Disconnect Switches Brochure EID Series Explosionproof, Compact Disconnect Switches catalog page EID Explosionproof, Compact Disconnect Switches Canadian certification EID Explosionproof, Compact Disconnect Switches Canadian certification IF 1696 - EID Fusible Disconnect Switch IF 1696 - EID Fusible Disconnect Switch Eaton Specification Sheet - EIDBF3100 Eaton Specification Sheet - EIDBF3100
Feature: 100A amperage rating with core HP support of 20 hp/60 hp/75 hp provides robust control of motor loads. Business Impact: Enables code-compliant, reliable motor disconnection, reducing fuse-related downtime and maintenance costs. Application: Suitable for heavy equipment runs in manufacturing lines operating on 240–600 Vac. Feature: Fused switching configuration delivers integrated protection against overloads. Business Impact: Improves system reliability and simplifies protection coordination for downstream devices. Application: Centralized control in hazardous locations where swift, safe de-energization is required. Feature: Copper-free aluminum enclosure offers corrosion resistance with weight advantages. Business Impact: Extends service life in challenging environments while easing handling and installation. Application: Outdoor and hazardous-area installations where corrosion risks are high. Feature: Hazardous-location ratings NEC/CEC including Class I Division 1 and Zone 1, plus additional Class II/III coverage. Business Impact: Ensures regulatory compliance and safer operation in oil, gas, chemical, and mining facilities. Application: Plant-wide switchgear and safety interlock points in hazardous environments. Feature: NEMA ratings 3, 3R, 4, 7, 9 deliver versatile enclosure protection. Business Impact: Facilitates indoor/outdoor installs and compliance with diverse protection needs. Application: Industrial spaces requiring rugged, weatherproof, and impact-resistant enclosures. Feature: Enclosure dimensions and weight (17.31 in L x 23.31 in H x 10.05 in W; 108 lb) support predictable installation planning. Business Impact: Streamlines cabinet layout, mounting, and maintenance access. Application: OEM and retrofit projects where space planning is critical.

Get a Quick Quote for a Eaton Crouse-Hinds EIDBF3100

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EIDBF3100? Enquire Now

FAQs

Yes. The EIDBF3100 is rated for Class I, Division 1 and Zone 1 hazardous locations, and it also covers additional classifications to support diverse industrial settings while maintaining NEC/CEC compliance.
The unit provides 100 A amperage with 20 hp, 60 hp, and 75 hp ratings, and operates over 240–600 Vac and 250 Vdc, with fused protection for motor control in demanding applications.
Plan for the 17.31 in L × 23.31 in H × 10.05 in W footprint and 108 lb weight, ensure proper mounting to support the reinforced enclosure, and reference IF 1696/installation sheets for proper fuse handling and safety procedures.
It carries NEC hazardous ratings (Class I, Division 1; Zone 1; Class I Division 2; Zone 2; Class II Division 1; Class III) and NEMA ratings 3, 3R, 4, 7, 9, plus a copper-free aluminum enclosure for corrosion resistance.
By combining fused protection with a durable enclosure and certified ratings, it reduces unplanned downtime, simplifies compliance audits, and lowers lifecycle costs for hazardous-area motor control in continuous-operation facilities.
