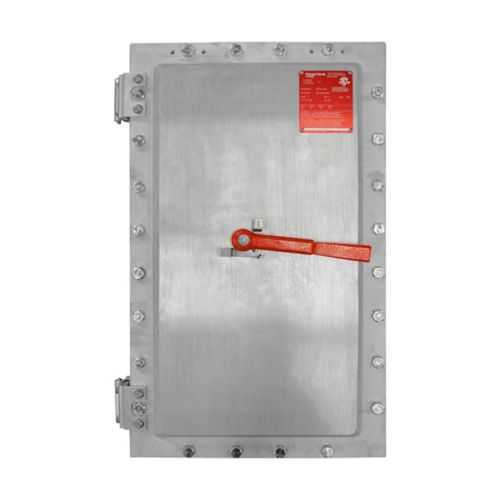

Eaton Crouse-Hinds EIDC3200 Disconnect Switch - Hazardous Locations

Part Number: EIDC3200
EIDC3200
Manufacturer
Eaton Crouse-Hinds
Part number
EIDC3200
Category

Quick Summary

EIDC3200 disconnect switch provides reliable electrical isolation for hazardous industrial locations. Maintaining safe shutdowns in challenging environments is costly and risky for maintenance teams. This unit carries NEC/CEC hazardous-area ratings including Class I Division 1 and Zone 1, along with Class II/III classifications, and rugged NEMA 3/3R/4/7/9 enclosures for mixed indoor/outdoor applications. With a non-fused design and copper-free aluminum enclosure, it delivers durable performance in explosion-protected installations while reducing spare-part diversity and downtime. For engineers, procurement teams, and commissioning crews, the EIDC3200 offers straightforward installation, compliance assurance, and long-term serviceability in hazardous locations. It also integrates smoothly with Eaton Crouse-Hinds EID series accessories, enhancing overall system reliability and safety.

Product Information

Extended Description

EIDC3200 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EID disconnect switch, 200A, With switch, Non-fused, 15 HP/75 HP/150 HP/200 HP, Copper-free aluminum, 240-600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EID disconnect switch
Catalog Number
EIDC3200
Product Length/Depth
17.44 in
Product Height
29.44 in
Product Width
13.19 in
Product Weight
167 lb
UPC
662276456051
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure type
With switch
Fusing
Non-fused
Amperage Rating
200A
Horsepower
15 hp/75 hp/150 hp/200 hp
Material
Copper-free aluminum
Eaton Crouse-Hinds EIDC3200 3D drawing SP3D Design Package - EID Explosionproof Compact Disconnect Switches EID Series Explosionproof, Compact Disconnect Switches Brochure EID Series Explosionproof, Compact Disconnect Switches catalog page EID Explosionproof, Compact Disconnect Switches Canadian certification EID Explosionproof, Compact Disconnect Switches Canadian certification IF 1532 - EID Disconnect Assembly IF 1532 - EID Disconnect Assembly EID Explosionproof Disconnect Switches EID Explosionproof Disconnect Switches
Feature: 200 A amperage rating with a non-fused design. Business Impact: Simplifies wiring, reduces the need for spare fuses, and speeds up maintenance shutdowns. Application: Ideal for high-current motor disconnects and power distribution in hazardous locations. Feature: HP ratings of 15/75/150/200 and a wide switching range (240–600 VAC / 250 VDC). Business Impact: Enables direct control of diverse motor loads and processes without derating, lowering total cost of ownership. Application: Motor control centers and process lines in oil, gas, and chemical plants.Feature: Copper-free aluminum enclosure and switch assembly. Business Impact: Improves corrosion resistance, lowers weight, and simplifies handling during installation and retrofit projects. Application: Outdoor installations and corrosive environments common in hazardous-area facilities.Feature: NEC/CEC compliance with hazardous-location ratings and multiple NEMA approvals. Business Impact: Supports regulatory compliance, safer operations, and faster certification for new builds. Application: Facilities requiring rigorous safety and code adherence in hazardous zones.Feature: Precise dimensions and robust build (17.44 in L × 29.44 in H × 13.19 in W; 167 lb). Business Impact: Predictable footprint aids panel design and field mounting, reducing integration risk. Application: Retrofit and new installations where space planning is critical.Feature: With-switch enclosure and compatibility with EID accessories. Business Impact: Streamlines installation, serviceability, and future upgrades with modular components. Application: Systems engineering to reduce downtime during expansions or maintenance.

Get a Quick Quote for a Eaton Crouse-Hinds EIDC3200

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EIDC3200? Enquire Now

FAQs

To install the EIDC3200, ensure the enclosure is rated for hazardous locations and follow the IF 1532 installation sheets. Mount with appropriate hardware, verify the switch is in the non-fused configuration, and connect conductors per NEC/CEC guidelines. The unit’s copper-free aluminum enclosure aids handling and corrosion resistance in rugged environments.
The EIDC3200 supports up to 200A with HP ratings of 15/75/150/200 and a voltage range of 240–600 VAC or 250 VDC. This makes it suitable for high-current motor disconnects and life-safety control in hazardous areas, while maintaining regulatory compliance and reliable isolation during maintenance.
Yes. With NEC hazardous ratings including Class I Division 1 and Zone 1, plus NEMA ratings 3/3R/4/7/9, the EIDC3200 is well-suited for motor disconnects in petrochemical and other hazardous facilities. Its non-fused design supports safe, predictable motor control and isolation during servicing.
The device aligns with NEC/CEC standards for hazardous locations, supports Class I/II/III classifications, and carries multiple NEMA ratings (3, 3R, 4, 7, 9). Canadian certification references and UL/UL-type documentation are available, along with installation manuals to facilitate compliance audits and inspections.
Maintenance benefits arise from a non-fused design and copper-free aluminum enclosure, reducing spare-part variety and corrosion concerns. The compact EID accessory ecosystem allows straightforward retrofits, while the unit’s robust construction lowers downtime and improves system reliability, delivering a favorable total cost of ownership in hazardous-area projects.
