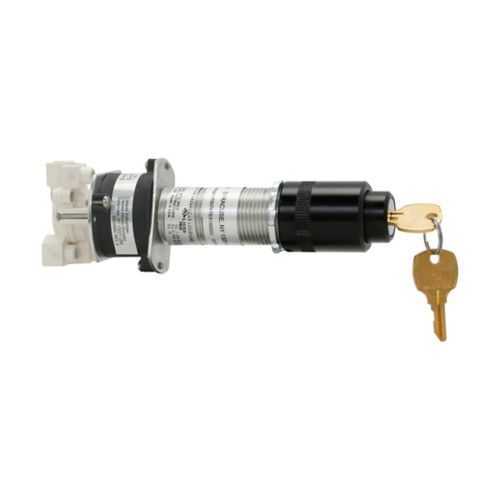

Eaton Crouse-Hinds EMP0592 Selector Switch - Hazardous Area
Part Number: EMP0592
Quick Summary
The Eaton Crouse-Hinds EMP0592 selector switch operator provides reliable control for hazardous-area machinery. In harsh industrial settings, operators must resist explosive atmospheres, ingress, wear, and tampering to prevent costly downtime and safety incidents. It carries NEC/CEC certifications with hazardous ratings for Class I Division 1 and 2, Class II Division 1 and 2, and Class III, plus NEMA ratings for enclosures 3, 7, and 9. The standard assembly, two contact blocks, and left-only key removal simplify wiring, panel layout, and field safety checks in retrofit and new-build projects. For manufacturers and maintenance teams prioritizing uptime and compliance, EMP0592 delivers a robust, scalable solution compatible with two normally open and two normally closed circuits.
Product Information
Extended Description
EMP0592 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EMP selector switch operator, Standard, Two normally open, two normally closed, Two-position selector switch, key operated, Key removal left only, Two contact blocks
Product Name
Eaton Crouse-Hinds series EMP selector switch operator
Catalog Number
EMP0592
Product Length/Depth
6.63 in
Product Height
2.63 in
Product Width
2.63 in
Product Weight
0.89 lb
UPC
782274273754
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Operator style
Two-position selector switch, key operated
Assembly style
Standard
Contact arrangement
Two normally open, two normally closed
Special features
Two contact blocks
Type
Key removal left only
EMP and EMPS Hazardous Area Operators catalog page
IF 1702 - EMP/EMPS Barrel Assemblies - ATEX and IEC version
IF 1702 - EMP/EMPS Barrel Assemblies - ATEX and IEC version
Eaton Specification Sheet - EMP0592
Feature: Two-position selector switch, key operated. Business impact: Improves security and prevents unauthorized operation in hazardous areas. Application: Used for basic start/stop control of motors and process equipment in Class I/II/III environments. Feature: Contact arrangement of two normally open and two normally closed contacts. Business impact: Enables flexible control logic without adding hardware; Application: Sequence controls, interlocks, and signaling in hazardous-location panels. Feature: Two contact blocks. Business impact: Increases wiring density and reduces required panel space; Application: Compact control panels in constrained hazardous locations. Feature: Standard assembly. Business impact: Quick, straightforward installation lowers commissioning time and labor costs; Application: Retrofit into existing gear or new installations with minimal disruption. Feature: Certifications and ratings (NEC/CEC hazardous ratings, Hazardous/Classified Locations, NEMA 3, 7, 9). Business impact: Ensures regulatory compliance and safer operations; Application: Projects in oil & gas, chemical, and marine environments requiring formal certification. Feature: Dimensions and weight (6.63 in L, 2.63 in W, 2.63 in H, 0.89 lb). Business impact: Predictable fit for panel planning; Application: Space-efficient mounting in control cabinets and hazardous-area panels.
Get a Quick Quote for a Eaton Crouse-Hinds EMP0592
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EMP0592?
Enquire Now
FAQs
To install EMP0592, verify panel compatibility with the two-contact block arrangement, mount in standard footprint, and wire two normally open and two normally closed contacts per the control logic. Ensure the device is secured in a suitable hazardous-area enclosure and that the key-operated switch remains accessible for safe operation.
EMP0592 carries NEC/CEC compliance for hazardous locations with Class I Division 1 and 2, Class II Division 1 and 2, and Class III ratings, and is offered in NEMA enclosures 3, 7, and 9. These specs support safe operation in oil, gas, chemical processing, and other demanding environments.
Yes. EMP0592 provides two normally open and two normally closed contacts across two contact blocks. This arrangement supports flexible control logic for start/stop sequences, interlocks, and signaling in hazardous-location panels.
Ideal for hazardous-location motor control, process-line panels, and equipment enclosures in oil & gas, chemical processing, maritime, and mining sectors. The two-position, key-operated selector supports secure operation, while the standard assembly simplifies retrofits and new installations in restricted zones.
The EMP0592 offers tamper resistance via left-only key removal, durable construction for volatile atmospheres, and straightforward installation that reduces commissioning time. Its NEC/CEC and NEMA compliance lowers regulatory risk, minimizes unplanned downtime, and streamlines maintenance planning for regulated facilities.
