Eaton Crouse-Hinds EMP069 Selector Switch Operator - NEC/CEC Hazardous Locations
Part Number: EMP069
Quick Summary
Eaton Crouse-Hinds EMP069 selector switch operator provides reliable control in hazardous locations. Maintenance teams often struggle with misoperation and safety risks when switching in explosive atmospheres. This unit meets NEC/CEC requirements and NEC hazardous ratings including Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, and Class III, along with NEMA ratings 3, 7, and 9, ensuring robust compliance. For engineers and technicians, EMP069 offers a straightforward standard assembly with a single contact block, streamlining installation, improving panel reliability, and reducing downtime. It supports industrial automation workflows in challenging environments while maintaining safety and long-term performance.
Product Information
Extended Description

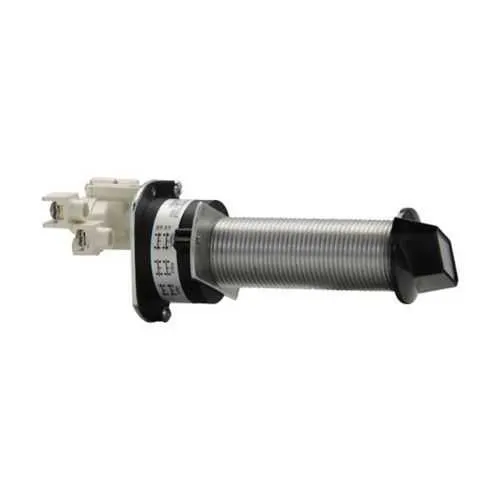

EMP069 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EMP selector switch operator, Standard, Three-position selector switch, One contact block
Product Name
Eaton Crouse-Hinds series EMP selector switch operator
Catalog Number
EMP069
Product Length/Depth
5.81 in
Product Height
2.63 in
Product Width
2.63 in
Product Weight
0.75 lb
UPC
782274310350
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9
Operator style
Three-position selector switch
Assembly style
Standard
Special features
One contact block
EMP and EMPS Hazardous Area Operators catalog page
IF 1702 - EMP/EMPS Barrel Assemblies - ATEX and IEC version
IF 1702 - EMP/EMPS Barrel Assemblies - ATEX and IEC version
Eaton Specification Sheet - EMP069
Feature → Business Impact → Application: Three-position selector switch provides clear on/off/neutral control, reducing operator error and enabling precise sequencing in control panels for hazardous locations. This improves safety and reduces fault propagation in automated systems and machinery. Feature → Application: One contact block simplifies wiring and enclosure space usage, cutting installation time and potential miswiring during panel builds and retrofit projects. Feature → Compliance → Business impact: NEC/CEC conformity and hazardous location ratings (Class I, Division 1/2; Class II, Division 1/2; Class III) lessen regulatory risk and streamline approvals for new installations and upgrades across energy, chemical, and mining sectors. Feature → Compatibility → Application: Standard assembly with compatible dimensions (5.81 in L, 2.63 in W, 2.63 in H) fits common control enclosures, aiding quick integration into existing panels. Feature → Documentation → Application: Availability of installation sheets (ATEX/IEC versions) supports compliant mounting and troubleshooting in multinational facilities. Feature → Reliability → Application: NEMA ratings 3, 7, 9 provide robust protection against environmental ingress, enabling dependable operation in demanding outdoor and indoors hazardous settings.
Get a Quick Quote for a Eaton Crouse-Hinds EMP069
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EMP069?
Enquire Now
FAQs
What mounting and enclosure considerations are recommended for EMP069 in Class I/II environments? EMP069 uses a standard assembly with compact dimensions (5.81 in L x 2.63 in W x 2.63 in H) and one contact block, enabling straightforward installation in common control panels. Always confirm NEC/CEC compliance and verify enclosure IP/NEMA ratings for your specific site.
EMP069’s three-position selector switch minimizes operator error by providing clear selection states. The one contact block reduces wiring complexity, while NEC/CEC compliance and hazardous-location ratings ensure safe operation in Class I, II, and III environments, delivering improved reliability and reduced maintenance in critical automation panels.
Yes. Eaton provides IF1702 installation sheets and related ATEX/IEC documentation for EMP/EMPS barrel assemblies, which support compliant mounting and troubleshooting in multinational facilities. Always consult the latest ATEX/IEC guidance alongside NEC/CEC requirements for your project region.
EMP069 carries NEC/CEC certification with hazardous ratings including Class I Division 1 and Division 2, Class II Division 1 and 2, and Class III, plus NEMA ratings 3, 7, 9. These certifications confirm suitability for hazardous/classified locations and provide regulatory assurance, reducing risk during audits and enabling rapid approval in design-build projects.
With a compact footprint and a single contact block, EMP069 eases panel space planning and wiring. Its robust construction and hazardous-area ratings translate to lower maintenance frequency and fewer components to inspect, supporting longer mean time between failures (MTBF) in demanding environments.
