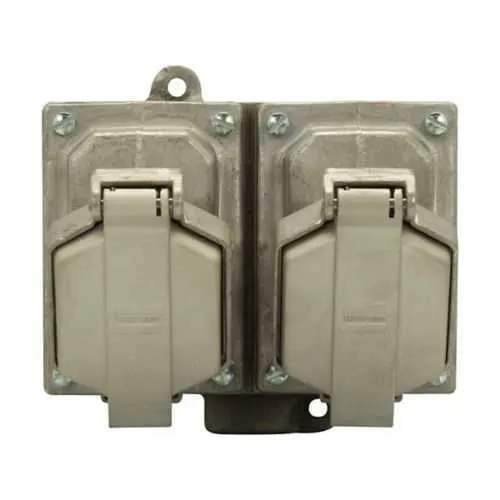

Eaton ENR12202 Receptacle Assembly - Hazardous Locations
Part Number: ENR12202
Quick Summary
The Eaton ENR12202 receptacle assembly is a hazardous-area power outlet solution designed for rugged duty in harsh environments. In demanding facilities, installers and engineers face challenges maintaining uptime when equipment isn’t purpose-built for explosion-protected zones. This unit meets NEC/CEC standards and hazardous-location ratings, including Class I Division 1 and Class II Division 1, with NEMA protection ratings of 3, 7, 9, and 12. The two-gang, dead-end configuration paired with copper-free aluminum construction reduces weight and corrosion, while Eaton’s installation resources—CAD drawings, catalog pages, and instruction sheets—streamline field deployment and ongoing maintenance. This translates to faster commissioning, lower lifecycle costs, and greater compliance confidence for industrial, marine, and offshore applications.
Product Information
Extended Description
ENR12202 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly, 20A, Double, 50-400 Hz, Copper-free aluminum, 6-20R, Two-gang, Dead end, 1/2", 250 Vac
Product Name
Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly
Catalog Number
ENR12202
Product Length/Depth
8 in
Product Height
6.72 in
Product Width
7.56 in
Product Weight
13.55 lb
UPC
782274744742
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Number of gangs
Two-gang
Amperage Rating
20A
Voltage rating
250 Vac
Style
Dead end
Trade size
1/2"
NEMA configuration
6-20R
Cover type
Double
Material
Copper-free aluminum
Frequency rating
50-400 Hz
Eaton Crouse-Hinds ENR12202 3D drawing
Ark-Gard ENR Value Explosionproof NEMA Locking Devices catalog page
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
Eaton Specification Sheet - ENR12202
Feature → Business Impact → Application: Two-gang Ark-Gard ENR Value receptacle assembly delivers a compact, durable power distribution point in hazardous locations, reducing panel space and installation time. Benefit: Faster wiring, easier field audits, and lower labor cost during commissioning, with reliable power delivery in constrained spaces. Application: Chemical plants and offshore rigs where space is limited but safety is non-negotiable. Feature → Business Impact → Application: 20A, 250 Vac rating with 6-20R NEMA configuration supports standard locking devices and common plug sets, enabling consistent power connectivity across equipment. Benefit: Reduced mismatch risk, compliant interlock configurations, and predictable maintenance cycles. Application: Drums and process lines in refineries and refits in marine environments. Feature → Business Impact → Application: Copper-free aluminum enclosure delivers corrosion resistance with light weight for easier handling and reduced structural load. Benefit: Longer service life in corrosive atmospheres and lower transport costs per unit. Application: Outdoor, offshore, or chemical processing facilities where corrosion risk is elevated. Feature → Business Impact → Application: Frequency rating of 50–400 Hz and a 1/2" trade size enable versatile use with diverse equipment, simplifying design and procurement. Benefit: Broad compatibility across global plants, faster procurement, and fewer part substitutions. Application: Multinational manufacturing sites and mixed-frequency operations. Feature → Business Impact → Application: NEC/CEC compliance, Hazardous/Classified Locations area classification, and NEMA 3/7/9/12 protection. Benefit: Strong regulatory alignment, reduced risk of noncompliance fines, and enhanced protection for personnel and assets. Application: Any installation in hazardous or marine environments requiring certified equipment.
Get a Quick Quote for a Eaton Crouse-Hinds ENR12202
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ENR12202?
Enquire Now
FAQs
The ENR12202 is designed for hazardous locations with Class I Division 1 and Class II Division 1 ratings and NEC/CEC compliance. It is a two-gang, dead-end receptacle with a 1/2 inch trade size and a 6-20R configuration, facilitating straightforward installation in confined spaces while meeting stringent safety standards.
This receptacle assembly provides a 20A amperage rating, 250 VAC voltage rating, and supports a frequency range of 50–400 Hz. These specifications enable compatibility with a broad set of industrial equipment and controls operating in harsh environments without compromising safety or performance.
Yes. ENR12202 is part of the Ark-Gard ENR Value line designed for hazardous areas and marine applications. Its copper-free aluminum construction offers enhanced corrosion resistance, and the unit carries NEMA ratings 3, 7, 9, and 12 for robust protection against environmental hazards typical of offshore platforms.
ENR12202 carries NEC/CEC standards, Hazardous/Classified Locations area classification, and NEC hazardous ratings including Class I, Division 1 and Division 2, as well as Class II Division 1 and 2, plus Class III. It also holds NEMA ratings 3, 7, 9, and 12, ensuring broad regulatory compliance and field safety.
Eaton provides multiple resources for ENR12202 deployment, including 3D CAD drawings, a dedicated Ark-Gard ENR Value catalog page, Canadian certification references, and installation sheets. These assets help with design integration, accurate field setup, and ongoing maintenance, reducing risk and accelerating project timelines.
