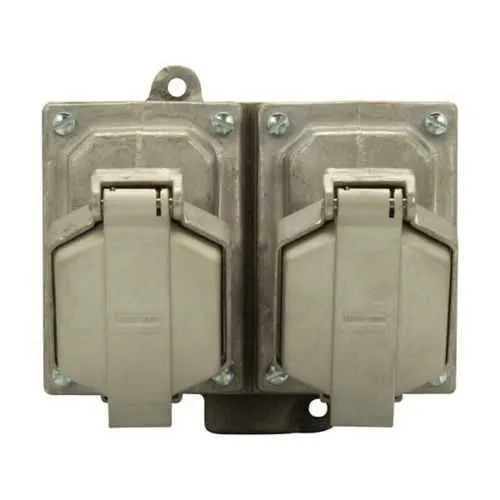

Eaton Crouse-Hinds ENRB22201 Receptacle Assembly - Group B Rating
Part Number: ENRB22201
Quick Summary
ENRB22201 is a hazardous-location receptacle assembly designed for rugged industrial environments. Facility teams often struggle with maintenance costs and compliance risks when wiring in explosion-prone zones, leading to extended downtime and costly revisions. This unit supports NEC/CEC compliance and Class I, Division 1 and Division 2; Class II, Division 1 and 2; and Class III ratings, alongside consistent NEMA protection (3, 7, 9, 12). With the Ark-Gard ENR Value design, copper-free aluminum construction, and a two-gang, 5-20R configuration, it simplifies installation and reduces lifecycle costs while delivering reliable performance in demanding hazardous locations.
Product Information
Extended Description
ENRB22201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly, 20A, Double, 50-400 Hz, Copper-free aluminum, 5-20R, Two-gang, Group B rating, Dead end, 3/4", 125 Vac
Product Name
Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly
Catalog Number
ENRB22201
Product Length/Depth
8 in
Product Height
6.72 in
Product Width
7.56 in
Product Weight
13.95 lb
UPC
782274428307
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Number of gangs
Two-gang
Amperage Rating
20A
Voltage rating
125 Vac
Style
Dead end
Trade size
3/4"
NEMA configuration
5-20R
Cover type
Double
Material
Copper-free aluminum
Frequency rating
50-400 Hz
Special features
Group B rating
Ark-Gard ENR Value Explosionproof NEMA Locking Devices catalog page
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices UL certification - ENR and ENP
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices UL certification - ENR and ENP
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
Eaton Specification Sheet - ENRB22201
Copper-free aluminum enclosure delivers corrosion resistance and lighter weight, reducing shipping and installation effort while maintaining durable protection in harsh environments. This translates to lower total cost of ownership and faster commissioning on site, especially in coastal or chemically aggressive facilities. The 20A, 125 Vac rating with a broad 50-400 Hz frequency capability supports a wide range of equipment, improving compatibility with existing plant controls and minimizing rework during system upgrades. The two-gang, 3/4 inch trade size and double cover configuration simplify wiring layouts and enclosure access, enabling faster terminal junctions and safer maintenance in tight spaces. Group B rating and dead-end style reduce ignition risk and surface heat, enhancing overall safety in classified locations. NEMA 3, 7, 9, 12 protection and NEC/CEC conformity provide a clear path to compliance across North America, aiding procurement and installation planning. Ark-Gard ENR Value integration supports standardized accessory compatibility, improving spare parts planning and ongoing serviceability for hazardous-area programs.
Get a Quick Quote for a Eaton Crouse-Hinds ENRB22201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ENRB22201?
Enquire Now
FAQs
ENRB22201 is designed for Hazardous/Classified Locations with NEC/CEC compliance and Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III ratings, making it suitable for chemical plants, oil and gas facilities, and other hazardous environments.
The unit provides a 20A amperage rating, 125 Vac nominal voltage, and a frequency range of 50–400 Hz, suitable for a wide variety of control circuits and motor loads in hazardous areas.
Yes, ENRB22201 is a two-gang receptacle assembly configured as a 5-20R NEMA receptacle, with a 3/4" trade size and a double cover for robust protection in constrained spaces.
ENRB22201 carries NEC/CEC standards compliance, NEC hazardous ratings (Class I, Divisions 1 and 2; Class II, Divisions 1 and 2; Class III), and NEMA ratings 3, 7, 9, 12, ensuring broad regulatory acceptance and safety in hazardous and marine environments.
Ark-Gard ENR Value uses a copper-free aluminum enclosure with a Group B rating, reducing corrosion risks and ignition sources, which lowers maintenance frequency and parts replacement, while enabling easier field servicing and faster repair cycles in hazardous-area programs.
