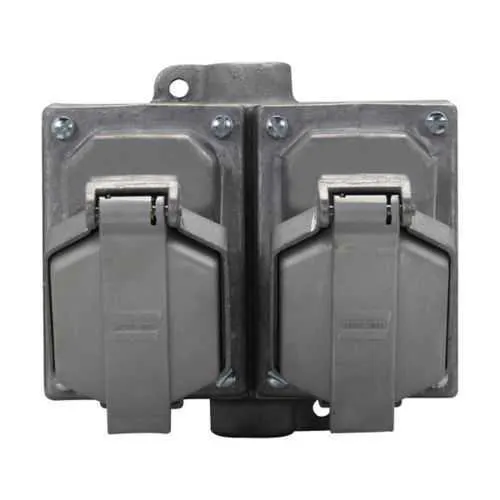

Eaton Crouse-Hinds ENRC22151 Receptacle Assembly - Hazardous Location
Part Number: ENRC22151
Quick Summary
ENRC22151 Ark-Gard receptacle assembly provides safe, code-compliant power distribution for hazardous locations in industrial facilities. Users often struggle with non-certified outlets that fail in explosive atmospheres, causing downtime and compliance risks. This unit carries NEC/CEC certifications and hazardous-location ratings such as Class I Division 1 & 2, Class II Division 1 & 2, and Class III, paired with robust NEMA configurations for demanding environments. Through-feed design, copper-free aluminum construction, and a 125 VAC, 15 A rating, it enables faster, safer installations while reducing maintenance costs. For engineers and procurement teams, the ENRC22151 supports reliable operation, streamlined sourcing, and long-term lifecycle value in oil, gas, chemical, and marine applications.
Product Information
Extended Description
ENRC22151 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly, 15A, Double, 50-400 Hz, Copper-free aluminum, 5-15R, Two-gang, Through feed, 3/4", 125 Vac
Product Name
Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly
Catalog Number
ENRC22151
Product Length/Depth
8 in
Product Height
6.72 in
Product Width
7.56 in
Product Weight
0.01 lb
UPC
662276537620
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Number of gangs
Two-gang
Amperage Rating
15A
Voltage rating
125 Vac
Style
Through feed
Trade size
3/4"
NEMA configuration
5-15R
Cover type
Double
Material
Copper-free aluminum
Frequency rating
50-400 Hz
Ark-Gard ENR Value Explosionproof NEMA Locking Devices catalog page
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
IF 344 - Ark-Gard ENR Receptacles ENP Model M97 Plugs
IF 344 - Ark-Gard ENR Receptacles ENP Model M97 Plugs
Copper-free aluminum housing provides corrosion resistance in aggressive environments, extending service life and reducing replacement costs in hazardous locations. This translates to lower total cost of ownership and fewer unexpected outages during operations that require durable, compliant enclosures. Through-feed, two-gang configuration simplifies wiring and minimizes panel depth, enabling quicker field installs and easier retreat wiring in tight spaces, while maintaining standard 3/4 in trade size and compatible 5-15R outlets. The 125 VAC, 15 A rating aligns with common building and plant plug standards, reducing the need for custom adapters and inventory fragmentation. NEC/CEC compliance combined with Hazardous/Classified Locations ratings (Class I Div 1/2, Class II Div 1/2, Class III) and NEMA 3, 7, 9, 12 protection delivers confidence in equipment performance under dust, moisture, and explosive atmospheres. Documentation and Canadian certification references support streamlined regulatory audits and cross-border deployments.
Get a Quick Quote for a Eaton Crouse-Hinds ENRC22151
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ENRC22151?
Enquire Now
FAQs
ENRC22151 uses a NEMA 5-15R receptacle rated 125 VAC, 15 A, designed for Class I, II, and III hazardous environments. It accepts standard 5-15P plugs, simplifying field wiring and reducing the need for special connectors in compliance-led installations.
The receptacle assembly meets NEC/CEC standards and hazardous-location ratings for Class I Div 1 and Div 2, Class II Div 1 and Div 2, and Class III, along with NEMA ratings 3, 7, 9, 12. It also carries UL Canada certification references, supporting cross-border use in regulated facilities.
ENRC22151 is a two-gang, through-feed receptacle assembly with approximate dimensions of 8 in (length), 6.72 in (height), and 7.56 in (width). It supports a 3/4 in trade size and is designed for straightforward through-feed wiring in compact enclosures.
By combining durable copper-free aluminum construction, code-compliant design, and a through-feed two-gang format, it reduces maintenance cycles, lowers inventory complexity, and speeds up installation. The robust protection (NEMA 3/7/9/12) minimizes equipment replacement due to harsh conditions, delivering measurable lifecycle savings.
Eaton provides a catalog page, installation sheets (IF series), and Canadian certification references for ENR/ENP variants. This suite supports quick specification checks, compliance audits, and cross-border procurement, alongside standard electrical data such as amperage, voltage, and frequency ratings.
