Eaton ENRC22152 Receptacle Assembly - Hazardous Locations
Part Number: ENRC22152
Quick Summary
The ENRC22152 Ark-Gard ENR Value receptacle assembly provides safe, explosion-protected power connections for hazardous-location workplaces. In challenging environments where uptime matters and wiring integrity is critical, spec-compliant assemblies help prevent costly outages and compliance gaps. This unit carries NEC/CEC certifications and hazardous-location ratings for Class I and II divisions 1 and 2, Class III, with corresponding NEMA ratings 3, 7, 9, and 12, ensuring reliable performance across diverse hazardous locations. Copper-free aluminum construction reduces weight and corrosion risk while maintaining rugged durability. Through-feed style and a two-gang configuration simplify panel layouts and wiring runs, delivering faster installation, easier maintenance, and long-term operating efficiency for industrial facilities and marine applications.
Product Information
Extended Description

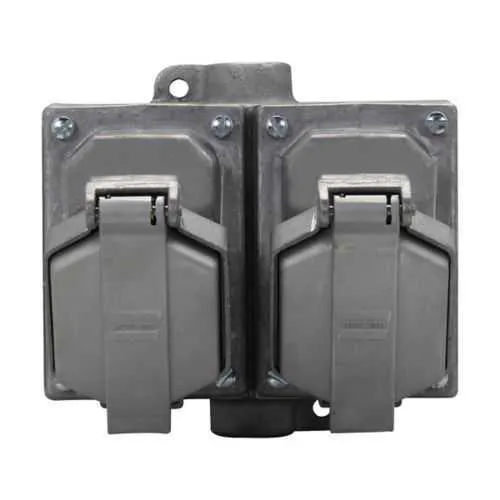

ENRC22152 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly, 15A, Double, 50-400 Hz, Copper-free aluminum, 6-15R, Two-gang, Through feed, 3/4", 250 Vac
Product Name
Eaton Crouse-Hinds series Ark-Gard ENR Value receptacle assembly
Catalog Number
ENRC22152
Product Length/Depth
8 in
Product Height
6.72 in
Product Width
7.56 in
Product Weight
0.01 lb
UPC
662276561359
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Number of gangs
Two-gang
Amperage Rating
15A
Voltage rating
250 Vac
Style
Through feed
Trade size
3/4"
NEMA configuration
6-15R
Cover type
Double
Material
Copper-free aluminum
Frequency rating
50-400 Hz
Eaton Crouse-Hinds ENRC22152 3D drawing
Ark-Gard ENR Value Explosionproof NEMA Locking Devices catalog page
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
Ark-Gard ENP, ENR, ENC Explosionproof NEMA Locking Devices Canadian certification - ENR and ENP
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Replacement Covers
Eaton Specification Sheet - ENRC22152
Hazardous-location compatibility and NEC/CEC compliance reduce regulatory risk and downtime. The ENRC22152 offers certified operation in Class I and II locations (Division 1 and 2) and Class III, supported by NEMA ratings 3, 7, 9, 12, enabling use across offshore, chemical, and heavy-industrial environments. Copper-free aluminum construction lowers weight and corrosion risk, improving longevity in challenging environments and reducing handling costs. The through-feed, two-gang design supports 250 Vac power with 15A capacity and a 3/4" trade size, streamlining installations and minimizing field wiring errors. With 50–400 Hz compatibility, this receptacle aligns with mixed-power systems common in global facilities, delivering reliable performance and operational continuity. Installation efficiency is enhanced by compact dimensions and Ark-Gard ENR Value compatibility, supporting faster maintenance turnarounds and lifecycle cost reductions.
Get a Quick Quote for a Eaton Crouse-Hinds ENRC22152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ENRC22152?
Enquire Now
FAQs
The ENRC22152 is designed for hazardous/classified locations under NEC/CEC standards, with ratings for Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It also carries NEMA ratings 3, 7, 9, 12, making it suitable for industrial, offshore, and chemical production settings.
The device provides a 15A current rating at 250 Vac with a frequency range of 50–400 Hz. It is a two-gang through-feed receptacle configured as 6-15R, with a 3/4" trade size, designed for robust, compliant power distribution in hazardous environments.
Yes. ENRC22152 is purpose-built for Ark-Gard ENR Value deployments, featuring a through-feed design, two-gang configuration, and compatibility with standard Ark-Gard hardware to simplify mounting, wiring, and serviceability in demanding locations.
It carries NEC/CEC standards compliance with hazardous-location ratings for Class I and II (Division 1 and 2) and Class III, along with NEMA ratings 3, 7, 9, 12. These certifications support regulatory compliance in industrial and marine facilities.
Copper-free aluminum housing minimizes corrosion and weight, improving durability and ease of handling. The through-feed, two-gang design reduces wiring complexity, while 8 in length and 7.56 in width support efficient panel layouts. Availability of 3D CAD drawings aids planning and ongoing maintenance planning.
