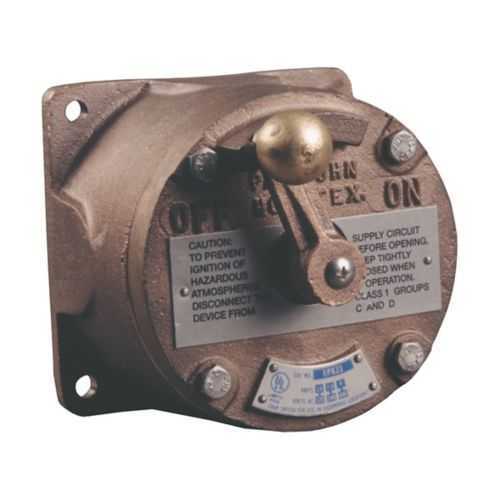

Eaton Crouse-Hinds EP834 Snap Switch - IP66 Hazardous Locations
Part Number: EP834
Quick Summary
EP834 Snap Switch provides reliable, two-pole control for hazardous-location equipment in industrial environments. Engineers often struggle with maintaining safe operation in dust-heavy, explosive spaces while meeting NEC/CEC requirements. This unit carries IP66 ingress protection and NEC Class I, Division 1 and 2 ratings, with hazardous-location certifications that simplify approvals. For installers and procurement teams, EP834 offers a robust, surface-mount option that reduces wiring complexity and supports durable, long-term operation in rugged environments.
Product Information
Extended Description
EP834 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn EP834 snap switch, 20A, Two-pole, With switch, Brass, Surface mount, Spring loaded single-throw, 600 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn EP834 snap switch
Catalog Number
EP834
Product Length/Depth
4.94 in
Product Height
4.94 in
Product Width
5.63 in
Product Weight
10.5 lb
UPC
662276390966
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
20A
Voltage rating
600 Vac
Configuration
Two-pole
Material
Brass
Type
Spring loaded single-throw
Special features
Surface mount
Pauluhn EP83 Explosionproof Marine Snap Switch catalog page
IF LBL 1499 - EP833/EP834 General Alarm Contact Marker
Eaton Specification Sheet - EP834
The EP834 delivers a 20A, 600 Vac rating with a two-pole configuration, enabling direct control of high-load equipment and reducing the need for external contactors. Its brass body paired with a spring-loaded single-throw mechanism minimizes wear and arcing, extending switch life in harsh environments. Applications include motor controllers, pumps, and conveyors in chemical plants and refineries where reliability matters. IP66 ingress protection and NEC/CEC compliance provide proven protection in dust, water, and explosive atmospheres, helping pass regulatory audits and lowering downtime. This also means safer maintenance windows for offshore platforms and mining operations. Surface-mount installation simplifies retrofits, minimizes cabinet space, and accelerates commissioning when used with Pauluhn EP83 enclosures, translating to shorter project timelines. Brass construction offers corrosion resistance for humid or chemically aggressive environments, supporting long service life in hazardous locations. Documentation and data sheets from Eaton facilitate fast engineering reviews and field testing, while cross-compatibility with EP83-series components streamlines procurement and maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds EP834
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EP834?
Enquire Now
FAQs
EP834 is explicitly designed for surface-mount installations, featuring a brass enclosure and a compact footprint that fits Pauluhn EP83-style assemblies. Its IP66 protection, NEC/CEC compliance, and Class I, Division 1 and 2 ratings ensure straightforward mounting in hazardous locations while maintaining strict safety and regulatory standards. This compatibility reduces retrofitting time and supports quick integration into existing control panels.
The EP834 is rated for 20A at 600 Vac in a two-pole configuration. This allows direct switching of high-load devices such as motors and pumps, reducing the need for additional contactors. The spring-loaded, single-throw design helps minimize arcing, improving switch life and system reliability in demanding industrial environments.
Yes. EP834 carries NEC hazardous location ratings including Class I, Division 1 and Division 2, along with IP66 ingress protection. This combination confirms suitability for hazardous/classified locations, supporting safe operation in oil, gas, chemical, and offshore applications while simplifying compliance workflows.
EP834 is designed for surface-mount use with a brass body and a two-pole configuration, compatible with Pauluhn EP83 enclosures. Its dimensions (approximately 4.94 in length, 4.94 in height, 5.63 in width) and weight (about 10.5 lb) influence mounting clearance and vibrational stability. Plan for adequate spacing, wiring access, and secure mounting to maximize reliability in hazardous locations.
Official resources include the Eaton Specification Sheet for EP834, the Pauluhn EP83 catalog page, and the LBL1499 installation instruction for EP833/EP834 general alarm contact markers. These documents provide detailed wiring, mounting, and safety guidelines to support design reviews and field installation.
