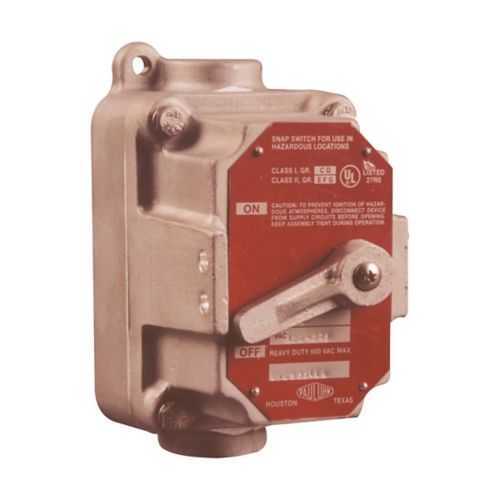

Eaton Crouse-Hinds EPCS2214B Snap Switch - IP66
Part Number: EPCS2214B
Manufacturer
Eaton Crouse-Hinds
Part number
EPCS2214B
Quick Summary
The EPCS2214B snap switch from Eaton Crouse-Hinds is a rugged, explosion‑proof signaling device for hazardous locations in industrial control panels. Design challenges like moisture ingress, dust buildup, and difficult maintenance routines are addressed by this unit's rugged enclosure and straightforward installation. It carries IP66 ingress protection and NEC/CEC hazardous area ratings, including Class I/Division 1 and Class II/Division 1 and 2, supporting compliant operation. With a 20A, 120-277 VAC rating and 1/2" NPT entry, the EPCS2214B delivers reliable switching for cost-efficient panel upgrades. For procurement teams, the brass construction and Pauluhn lineage offer predictable performance and reduced maintenance cycles.
Product Information
Extended Description
EPCS2214B Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn EPCS snap switch, 20A, 3-way, With switch, 1/2" NPT entry, Brass, Single-gang, Surface mount, Dead end, 120-277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn EPCS snap switch
Catalog Number
EPCS2214B
Product Length/Depth
3.75 in
Product Height
6.38 in
Product Width
4.88 in
Product Weight
12.5 lb
UPC
662276391369
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
20A
Voltage rating
120-277 Vac
Number of gangs
Single-gang
Style
Dead end
Entry size
1/2" NPT
Material
Brass
Special features
Surface mount
Pauluhn EPCS Explosionproof Marine Snap Switch catalog page
IF LBL 1500 - EPCS221 Locking Switch
Eaton Specification Sheet - EPCS2214B
Feature: 20A, 120-277 VAC, 3-way, with switch; Business Impact: Supports robust load handling across critical circuits, reducing the need for frequent replacements; Application: control circuits in hazardous environments such as chemical plants and offshore facilities. Feature: IP66 ingress protection; Business Impact: Keeps dust and water out, enabling reliable operation in wet or harsh conditions; Application: outdoor enclosures, marine panels, and wash-down areas. Feature: 1/2" NPT entry; Business Impact: Simple conduit connections reduce installation time and wiring errors; Application: streamlined field wiring in compact control panels. Feature: Brass enclosure and single-gang, surface-mount design; Business Impact: Corrosion resistance and space-efficient mounting lower total installed cost; Application: compact, code-compliant panels in industrial plants. Feature: NEC/CEC compliance including Class I/Division 1 and Class II/Division 1/2; Business Impact: Regulatory alignment minimizes risk and accelerates approvals; Application: safety-critical installations in hazardous locations. Feature: Surface mount with dead-end configuration; Business Impact: Reliable mechanical integrity and easier future maintenance; Application: Pauluhn EPCS installations where space is tight and serviceability matters.
Get a Quick Quote for a Eaton Crouse-Hinds EPCS2214B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EPCS2214B?
Enquire Now
FAQs
The EPCS2214B offers a single-gang, surface-mount enclosure with a 1/2" NPT entry, designed for straightforward conduit connections. It supports 120-277 VAC at 20A and a 3-way switch configuration, enabling flexible wiring schemes. This combination simplifies panel layout, reduces wiring errors, and accelerates commissioning in hazardous-area installations.
The EPCS2214B is rated for Hazardous/Classified Locations with NEC/CEC standards. It provides Class I, Division 1 and Class II, Division 1 and 2 compliance, ensuring suitability for explosive atmospheres. In addition, it carries IP66 ingress protection, confirming resistance to dust and powerful water jets in demanding environments.
Yes. The EPCS2214B’s explosion-proof construction, IP66 rating, and hazardous-area approvals make it well-suited for marine and chemical processing environments. Its brass enclosure and Pauluhn lineage offer durable performance against corrosive atmospheres, while its 120-277 VAC, 20A rating supports typical control and safety interlock functions in these sectors.
IP66 protection minimizes ingress of water and dust, extending life in wash-down and outdoor environments and reducing maintenance frequency. The 1/2 inch NPT entry simplifies conduit termination, which lowers installation time and error-prone field wiring. Together, these features yield predictable reliability and lower lifecycle maintenance costs for hazardous-location panels.
Investing in the EPCS2214B delivers ROI through enhanced safety, reduced downtime, and longer service life in harsh environments. Its robust construction, compliant certifications, and straightforward wiring translate to faster commissioning, fewer spares, and lower recurrent maintenance costs, making it a cost-effective choice for reliable explosion-proof switching in critical applications.
