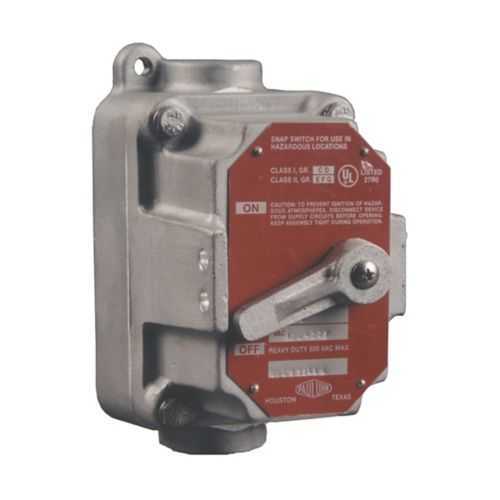

Eaton Crouse-Hinds EPCS2218A Snap Switch - IP66
Part Number: EPCS2218A
Manufacturer
Eaton Crouse-Hinds
Part number
EPCS2218A
Quick Summary
The EPCS2218A snap switch from Eaton Crouse-Hinds delivers reliable path control in hazardous locations. Engineers often grapple with rugged environments and strict codes that complicate procurement and installation. This device carries IP66 protection and NEC/CEC compliance, including Class I Division 1 and Class II Division 1 & 2 ratings, ensuring safe operation in explosive atmospheres. By combining a copper-free aluminum enclosure with a 1/2" NPT entry and surface-mount design, it reduces both field wiring time and long-term maintenance costs while delivering dependable performance in demanding industrial settings.
Product Information
Extended Description
EPCS2218A Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn EPCS snap switch, 20A, Two-pole, With switch, 1/2" NPT entry, Copper-free aluminum, Single-gang, Surface mount, Dead end, Double-throw (ON/OFF/ON), 120-277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn EPCS snap switch
Catalog Number
EPCS2218A
Product Length/Depth
3.75 in
Product Height
6.38 in
Product Width
4.88 in
Product Weight
4.5 lb
UPC
662276391437
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Type
Double-throw (ON/OFF/ON)
Amperage Rating
20A
Voltage rating
120-277 Vac
Number of gangs
Single-gang
Style
Dead end
Entry size
1/2" NPT
Material
Copper-free aluminum
Special features
Surface mount
Pauluhn EPCS Explosionproof Marine Snap Switch catalog page
IF LBL 1500 - EPCS221 Locking Switch
Eaton Specification Sheet - EPCS2218A
IP66 protection and rugged enclosure provide weather and dust resistance, reducing maintenance cycles and extending service life in outdoor or wet locations. Feature → Business Impact → Application: The corrosion-resistant copper-free aluminum housing lowers total cost of ownership by minimizing enclosure replacement in harsh environments, ideal for chemical plants and offshore facilities. The 20A, 120–277 Vac, two-pole double-throw switch supports high-current control with a compact footprint, enabling streamlined panel design and fewer components in conveyor and motor-control circuits. The 1/2" NPT entry with single-gang, surface-mount enclosure simplifies conduit connections and saves mounting space in crowded control panels or marine electrical rooms. The hazardous-location certifications (NEC/CEC, Class I/II Div 1 & 2) ensure compliance across industries, reducing sourcing risk and accelerating project approvals. The surface-mount feature enhances ease of installation and future service, with minimal equipment rework during upgrades. Industry context favors Pauluhn EPCS units for reliable, explosion-protected switching in demanding environments.
Get a Quick Quote for a Eaton Crouse-Hinds EPCS2218A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EPCS2218A?
Enquire Now
FAQs
The EPCS2218A is designed for Hazardous/Classified Locations with IP66 ingress protection and NEC/CEC compliance, including Class I Division 1 & 2 and Class II Division 1 & 2 ratings. It features a 1/2" NPT entry and a single-gang, surface-mount enclosure, enabling straightforward field installation in your control panel or outdoor installations.
This unit provides a 20A amperage rating with a voltage range of 120–277 Vac, two-pole configuration, and a double-throw (ON/OFF/ON) switch. These specs support reliable switching for typical industrial loads while keeping wiring simple and compact.
Yes. The Pauluhn EPCS series, including the EPCS2218A, is designed for hazardous locations and features an IP66-rated enclosure with copper-free aluminum construction, making it suitable for harsh marine and offshore conditions when installed per electrical codes.
The unit carries NEC/CEC standards with Hazardous/Classified Location approvals, including Class I Division 1 & 2 and Class II Division 1 & 2 ratings, in addition to IP66 ingress protection, supporting compliance in diverse industrial applications.
It is a single-gang, surface-mount enclosure with a 1/2" NPT entry and comes with a switch, enabling straightforward conduit connections and compact installation within control panels or mounting surfaces.
