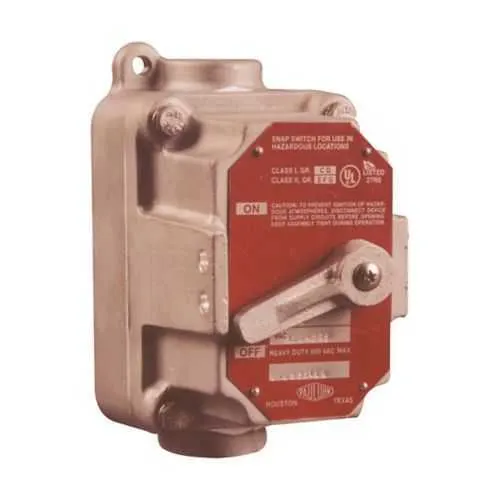

Eaton Crouse-Hinds EPCS2218B Snap Switch - IP66
Part Number: EPCS2218B
Manufacturer
Eaton Crouse-Hinds
Part number
EPCS2218B
Quick Summary
EPCS2218B is a rugged snap switch for hazardous-location electrical protection in industrial equipment. Users typically struggle with equipment failures in Class I and II environments caused by moisture ingress, dust, and inadequate enclosure sealing. This unit carries NEC/CEC certification, IP66 ingress protection, and hazardous-location ratings (Class I/Division 1&2, Class II/Division 1&2) to support compliance and reliable operation. With surface-mount installation, 1/2" NPT entry, and 120–277 VAC operation, it delivers dependable control with minimized downtime and predictable maintenance for critical processes across demanding sectors.
Product Information
Extended Description
EPCS2218B Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn EPCS snap switch, 20A, Two-pole, With switch, 1/2" NPT entry, Brass, Single-gang, Surface mount, Dead end, Double-throw (ON/OFF/ON), 120-277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn EPCS snap switch
Catalog Number
EPCS2218B
Product Length/Depth
3.75 in
Product Height
6.38 in
Product Width
4.88 in
Product Weight
12.5 lb
UPC
662276391444
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Type
Double-throw (ON/OFF/ON)
Amperage Rating
20A
Voltage rating
120-277 Vac
Number of gangs
Single-gang
Style
Dead end
Entry size
1/2" NPT
Material
Brass
Special features
Surface mount
Pauluhn EPCS Explosionproof Marine Snap Switch catalog page
IF LBL 1500 - EPCS221 Locking Switch
Eaton Specification Sheet - EPCS2218B
Feature: Two-pole, 20A, double-throw (ON/OFF/ON) rating. Benefit: Robust load handling reduces contact wear and wiring rework, improving uptime for conveyors, pumps, and fans in hazardous locations. Application: Ideal for Pauluhn EPCS installations in Class I/II zones where reliability directly lowers maintenance costs. Feature: IP66 brass enclosure with surface-mount design. Benefit: Superior moisture and dust sealing extends service life in outdoor, marine, or dirty environments, delivering more consistent performance with less field servicing. Application: Suitable for outdoor enclosures, exposed panels, and oil/gas facilities. Feature: 1/2" NPT entry, single-gang, dead-end, 3.75 in depth with 6.38 in height and 4.88 in width. Benefit: Flexible mounting and easier termination, enabling faster panel upgrades or retrofits without extensive rework. Application: Retrofit projects and new installations in compact control spaces. Feature: NEC/CEC compliance and Hazardous/Classified Locations ratings (Class I/II, Division 1/2). Benefit: Streamlined regulatory approval and safer operation in regulated environments, reducing audit risk. Application: Suitable for facilities requiring strict electrical compliance. Insight: This unit aligns with Pauluhn explosion-proof design principles, offering robust performance in marine and industrial settings, with documented installation guidance and datasheets to support field teams during commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds EPCS2218B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EPCS2218B?
Enquire Now
FAQs
Yes. The EPCS2218B is designed for Hazardous/Classified Locations with NEC/CEC compliance and IP66 sealing. It features a 1/2" NPT entry, surface-mount installation, and a single-gang footprint, making retrofit and new-install projects straightforward in Class I/II zones. Use the included installation instructions to ensure proper sealing, torque, and wiring termination for safe operation.
Key certifications include NEC/CEC compliance, Hazardous Locations ratings (Class I, Division 1 & 2; Class II, Division 1 & 2), and IP66 ingress protection. These ratings support safe operation in demanding environments and simplify regulatory approvals for industrial control panels, marine installations, and offshore facilities.
Yes. The Pauluhn EPCS family is designed for explosion-proof and marine applications. The EPCS2218B incorporates a brass enclosure, surface-mount capability, and IP66 protection, enabling reliable operation in harsh marine environments while meeting hazardous-location standards and providing robust protection against dust, water, and corrosive exposure.
The device is rated at 20A with a voltage range of 120–277 VAC and features a dead-end, brass enclosure with a 1/2" NPT entry. It is a single-gang, surface-mount snap switch with a double-throw (ON/OFF/ON) configuration, suitable for compact control panels and hazardous-area installations.
The 20A, dual-pole, double-throw design combined with IP66 protection minimizes downtime and reduces field maintenance in harsh environments. Compliance with NEC/CEC simplifies audits, while robust construction lowers replacement frequency. This translates to lower total cost of ownership through fewer interventions, longer service life, and predictable panel performance.
