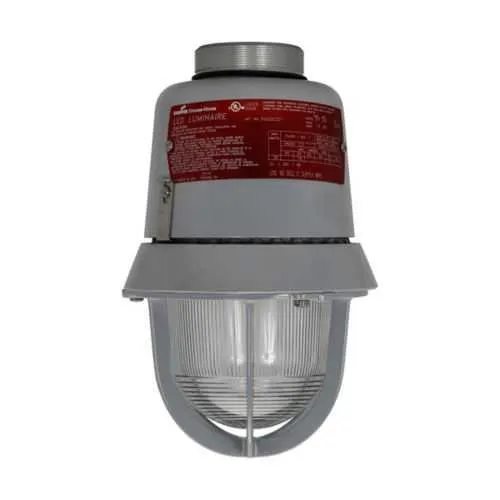

Eaton Crouse-Hinds EVLEDA201 LED Light Fixture - IP66
Part Number: EVLEDA201
Quick Summary
EV LED light fixture EVLEDA201 delivers compact, energy-efficient illumination for hazardous locations in industrial facilities. Operators face brittle lighting, frequent maintenance, and compliance gaps that slow production and increase risk. This unit meets NEC/CEC standards, IP66 ingress protection, and a NEMA 4X enclosure, making it suitable for Class I/Division 1 and Zone 1 environments. Its wildlife-friendly color, 1600 lumens output, and no-mount design help reduce retrofit costs while delivering reliable LED lighting for hazardous-area applications and energy savings.
Product Information
Extended Description
EVLEDA201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.05 - 0.14A, Wildlife friendly, AC drive, Heat and impact resistant glass globe, With guard, 1600 lumens, 118 lm/W, Copper-free aluminum, No mounting module, >0.95 PF, 100-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDA201
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
14.2 lb
UPC
662276487987
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Wildlife friendly
Mounting Method
No mounting module
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
14W
Amperage Rating
0.05 - 0.14A
Power factor
>0.95
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDA201
The EVLEDA201 uses AC drive to deliver 14W of power with 1600 lumens at a typical efficacy of 118 lm/W, while operating on 100-277 Vac at 50/60 Hz. This combination reduces energy costs and heat, improving facility reliability and lowering maintenance intervals in hazardous location lighting projects. The IP66 rated enclosure and NEMA 4X construction, along with a heat and impact resistant glass globe and guard, provide rugged protection against dust, water jets, and impacts, ensuring uninterrupted operation in harsh industrial environments. Copper-free aluminum housing minimizes environmental impact and weight, while the wildlife-friendly color temperature aligns with site safety policies and minimizes ecological disturbance in outdoor installations. The fixture requires no mounting module, simplifying installation and enabling faster deployments, whether upgrading legacy incandescent systems or deploying new hazardous-location lighting. With a current draw of 0.05-0.14A, the unit offers a low electrical footprint suitable for multi-fixture layouts and voltage flexibility in global facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDA201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDA201?
Enquire Now
FAQs
EVLEDA201 is certified for Hazardous/Classified Locations and complies with NEC/CEC standards, offering IP66 ingress protection and a NEMA 4X enclosure. Its guard and wildlife-friendly globe design support safe operation in Class I, Division 1 environments while maintaining reliable illumination.
The fixture runs at 14W with a current draw of 0.05–0.14A, on 100–277 VAC at 50/60 Hz, delivering approximately 1600 lumens with a power factor greater than 0.95 and 118 lm/W efficiency.
Yes. The IP66 rating and NEMA 4X enclosure protect against dust, water jets, and harsh conditions, making it suitable for outdoor installations and challenging industrial environments.
No mounting module is required. EVLEDA201 is designed for straightforward installation with its integrated guard, facilitating quicker retrofits and new installs in hazardous locations.
It carries NEC/CEC compliance, Hazardous/Classified Locations area classification, IP66, NEMA 4X, and Class I Division 1/Zone 1 suitability, ensuring regulatory alignment and safe operation in hazardous industrial sites.
