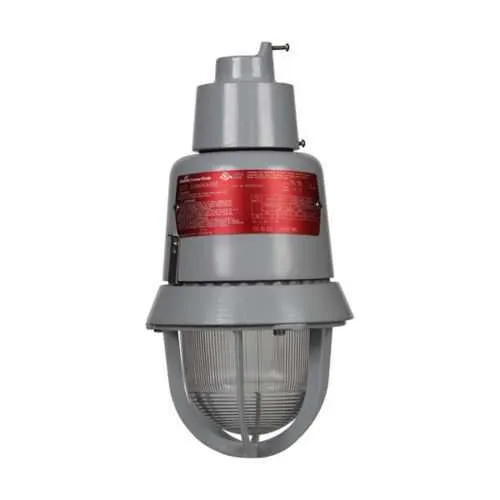

Eaton Crouse-Hinds EVLEDA2A201 LED Light Fixture - IP66
Part Number: EVLEDA2A201
Quick Summary
The EV LED light fixture delivers reliable, energy-efficient illumination for hazardous locations in industrial facilities. Installers often face tough challenges with sealing, corrosion resistance, and maintenance in classified areas, but this unit is built to endure. Certified for Hazardous/Classified Locations with NEC/CEC conformity, IP66 ingress protection, and NEMA 4X enclosure, it withstands dust, water, and impact. For engineers and procurement teams, its pendant mount, 100-277 VAC operation, and wildlife-friendly color temperature translate into lower total cost of ownership, improved safety lighting, and easier compliance across industrial campuses.
Product Information
Extended Description
EVLEDA2A201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.05 - 0.14A, Wildlife friendly, AC drive, Heat and impact resistant glass globe, With guard, 1600 lumens, 118 lm/W, Copper-free aluminum, Pendant mount, >0.95 PF, 3/4", 100-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDA2A201
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276263383
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Wildlife friendly
Mounting Method
Pendant
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
14W
Amperage Rating
0.05 - 0.14A
Power factor
>0.95
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDA2A201
Feature → Business Impact → Application: Copper-free aluminum housing and heat and impact resistant glass globe deliver corrosion resistance and long life in harsh environments, reducing replacement cycles in chemical plants and offshore facilities. Feature → Energy-efficient 14W operation with 1600 lumens and >0.95 power factor lowers energy costs and minimizes heat load, supporting maintenance budgets and steady operation in continuous-use sites such as refineries and mining operations. Feature → Hazardous Location certifications (Class I, Division 1; Zone 1/2; Class II Division 1) plus IP66/NEMA 4X provide regulatory compliance and safer equipment operation, essential for safety-critical lighting in oil and gas processing and chemical plants. Feature → Pendant mounting with 3/4" trade size and guard enables fast, secure installation and globe protection, reducing downtime during retrofits and new builds. Feature → Wildlife-friendly color temperature aligns with environmental standards while delivering high-quality illumination for worker productivity and site safety in outdoor and warehouse settings.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDA2A201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDA2A201?
Enquire Now
FAQs
The EVLEDA2A201 operates on a wide 100-277 VAC supply with 50/60 Hz input, designed for AC drive applications in demanding environments. This range simplifies stocking and wiring across multi-site facilities, reduces the need for multiple part numbers, and enables consistent performance in both plant and outdoor hazardous locations.
Yes. This fixture is certified for Hazardous/Classified Locations, including Class I Division 1 and Zone 1, with additional Zone 2 and Class II Division 1 ratings. Combined with IP66 and NEMA 4X, it provides trusted protection against dust, water, and impact, meeting stringent industrial safety requirements.
The wildlife-friendly color temperature reduces environmental impact while delivering high-quality illumination (1600 lumens at 118 lm/W) for long periods. This supports compliant, safer outdoor work zones and reduces glare or disruption to local ecosystems, aligning with sustainability and regulatory expectations in mining, refining, and processing facilities.
The EVLEDA2A201 uses a pendant mounting method with a 3/4" trade size and includes a guard for globe protection. Installation is straightforward for overhead mounting at height, and the sturdy copper-free aluminum housing helps manage heat and corrosion. Ensure proper mounting height and wiring routing to maintain IP66 enclosure integrity and ease of maintenance.
With 14W input, 1600 lumens output, and a PF >0.95, the unit delivers energy savings and reliable performance over time, reducing maintenance cycles versus incandescent equivalents. Its robust construction and hazardous-location certification minimize downtime, while lower power consumption translates to a faster payback in facilities with continuous operation.
