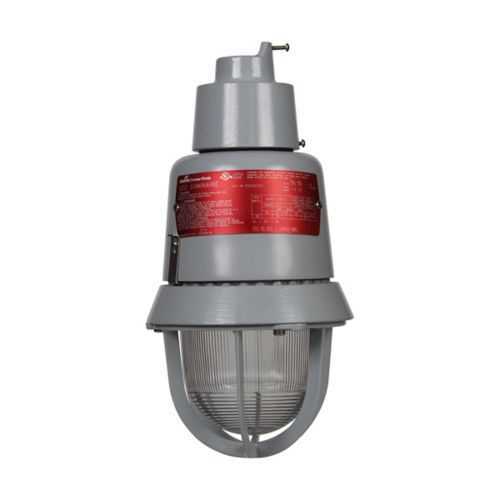

Eaton Crouse-Hinds EVLEDA2C201 LED Light Fixture - IP66 Hazardous
Part Number: EVLEDA2C201
Quick Summary
EVLEDA2C201 LED light fixture is designed to illuminate hazardous locations with reliable performance in industrial settings. In hazard-prone environments, traditional lighting often fails under heat, vibration, or exposure, leading to downtime and higher maintenance costs. This fixture carries IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC hazardous-location ratings for Class I, Division 1 and Zone 1 environments, ensuring safety and compliance. As a pendant-mount, 15W LED solution with a high PF, it delivers energy-efficient illumination with long life, reducing energy waste and maintenance. For plants seeking dependable hazard-lighting coverage, EVLEDA2C201 supports reduced total cost of ownership and straightforward installation across 100-277 VAC systems.
Product Information
Extended Description
EVLEDA2C201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free alum, Pendant mount, >0.90 power factor, 3/4", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDA2C201
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11 lb
UPC
662276273559
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Pendant
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDA2C201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDA2C201
Feature: 15W LED with 100-277 VAC input and 50/60 Hz compatibility. Business Impact: Delivers bright 1500 lumen output with high efficiency (approx. 100 lm/W) and PF >0.90, lowering energy costs and electrical losses. Application: Ideal for sites powered by standard industrial AC supplies, enabling straightforward deployment across multiple facilities. Feature: IP66 ingress protection and NEMA 4X enclosure with heat- and impact-resistant glass globe plus guard. Business Impact: Extreme durability against dust, water jets, and physical impact reduces maintenance frequency and replacement costs in washdown and outdoor environments. Application: Suitable for hazardous locations and rugged manufacturing floors where environmental exposure is a concern. Feature: Copper-free aluminum housing and pendant mounting with 3/4" trade size. Business Impact: Lightweight, corrosion-resistant construction improves installation ease and longevity, decreasing lifecycle costs. Application: Frees installation time in cramped or elevated mounting points while maintaining robust protection. Feature: Hazardous-location certifications and NEC/CEC compliance (Class I, Division 1; Zone 1; Zone 2; Class II, Division 1). Business Impact: Regulatory alignment minimizes risk of non-compliance penalties and accelerates project approvals. Application: Industrial plants, chemical facilities, and offshore operations needing recognized hazardous-location lighting. Feature: 100-277 VAC operation with AC drive and 1500 lumens output at 15W. Business Impact: Energy efficiency combined with strong illumination supports safe operations and task performance, reducing cooling load. Application: General-purpose hazardous-location task lighting across varied power distributions.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDA2C201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDA2C201?
Enquire Now
FAQs
EVLEDA2C201 is designed for pendant mounting with a 3/4" trade size and 100-277 VAC power. During installation, ensure proper clearance for heat dissipation, use appropriate explosion-rated conduit fittings, and verify that the mounting surface supports the fixture’s 11 lb weight. The included guard protects the glass globe, and the fixture’s IP66/NEMA 4X enclosure maintains performance in washdown and dusty environments.
The unit consumes 15W and delivers approximately 1500 lumens with an efficiency around 100 lm/W. It operates at 100-277 VAC, 50/60 Hz, and offers a power factor greater than 0.90. These specs support reliable operation and reduced electrical losses in industrial hazardous locations.
Yes. EVLEDA2C201 is rated for Hazardous/Classified Locations with NEC/CEC compliance, including Class I Division 1 and Zone 1. It features a rugged NEMA 4X enclosure and IP66 ingress protection, ensuring safe operation in demanding chemical, petrochemical, and oil&gas settings.
Key certifications include NEC/CEC hazardous-location standards, Class I Division 1/Zone 1 (and related zones) ratings, and a NEMA 4X/IP66 enclosure. Canadian certification references are available, and the unit is designed for hazardous-location lighting applications with a robust protection profile for industrial use.
With a 15W LED that replaces higher-wattage incandescent equivalents, the fixture reduces energy costs and cooling load. Its long life, rugged enclosure, and minimal maintenance requirements in hazardous environments translate to lower maintenance visits and extended intervals between replacements, improving overall ROI for plant lighting upgrades.
