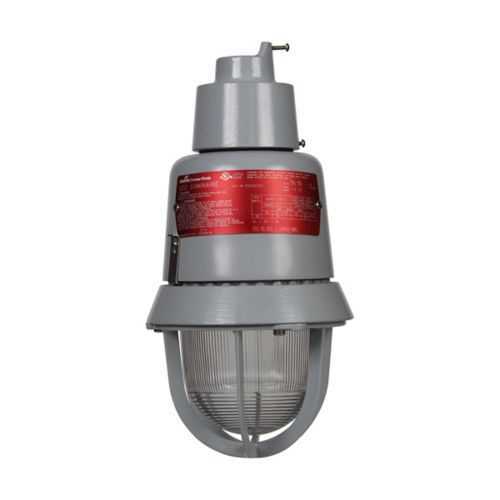

EVLEDA3A201 Eaton Crouse-Hinds LED Light Fixture - IP66
Part Number: EVLEDA3A201
Quick Summary
EVLEDA3A201 is a LED light fixture designed for hazardous-location lighting in industrial facilities such as chemical plants and offshore sites. Maintenance downtime and installation challenges in hazardous locations can drive up costs and safety risk. It complies with NEC/CEC standards, is rated IP66 and NEMA 4X, and carries hazardous-location approvals (Class I, Zone 1/Division 1 and Class II, Division 1) to support safe, compliant installations across harsh environments. Offering 1600 lumens at 14W with a 118 lm/W efficiency and a PF >0.95, this fixture delivers dependable illumination while reducing energy use. The pendant mounting and universal AC input simplify integration, supporting reliable uptime and long-term total cost of ownership for industrial operations.
Product Information
Extended Description
EVLEDA3A201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.05 - 0.14A, Wildlife friendly, AC drive, Heat and impact resistant glass globe, With guard, 1600 lumens, 118 lm/W, Copper-free aluminum, Pendant mt, >0.95 power factor, 1", 100-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDA3A201
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276636248
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 1 Class I, Division 1 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Wildlife friendly
Mounting Method
Pendant
Trade size
1"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
14W
Amperage Rating
0.05 - 0.14A
Power factor
>0.95
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDA3A201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDA3A201
Hazardous-location rating (Feature) enables full regulatory compliance and safer operations, reducing risk for personnel and equipment. This supports installation in Class I, Zone 1 locations and helps meet NEC/CEC requirements, making it ideal for chemical plants, refineries, and offshore facilities. Energy-efficient LED performance (Feature) delivering 1600 lumens at 14W with 118 lm/W and PF >0.95 translates to lower electricity costs and cooler operation, which extends component life and lowers cooling demands in plant environments. IP66 and NEMA 4X enclosure protections (Feature) defend against dust, water jets, and corrosive atmospheres, reducing maintenance frequency and service interruptions in wash-down areas and outdoor exposures. Copper-free aluminum housing with heat and impact resistant glass globe (Feature) provides rugged durability, minimizing replacement cycles and safeguarding operations in high-traffic workspaces. Universal AC input (100–277 VAC) and pendant mounting (Feature) enable quick installs, compatibility with existing electrical gear, and flexible positioning for optimal illumination in cramped or hazardous environments. Comprehensive documentation and available accessories (Fixture feature) streamline procurement and installation, cutting project risk and accelerating commissioning across new builds and retrofit projects.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDA3A201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDA3A201?
Enquire Now
FAQs
EVLEDA3A201 is designed for Class I, Zone 1 environments with 100–277 VAC input and 50/60 Hz operation. It features pendant mounting with a 1" trade size and comes with guard options for added protection. For compliant installation, reference IF 1562 and the Eaton specification sheet, and ensure proper enclosure sealing and grounding during mounting.
Key specs include 14W consumption producing 1600 lumens with an efficacy of 118 lm/W, a power factor greater than 0.95, and a voltage range of 100–277 VAC at 50/60 Hz. The luminaire is designed to operate reliably in harsh environments while maintaining stable light output and efficiency over its service life.
Yes. It carries hazardous-location approvals (Class I Zone 1/Division 1, and Class II Division 1, with Zone 2) and IP66/NEMA 4X ratings, making it appropriate for chemical processing, oil and gas, and offshore platforms where safety, durability, and reliability are critical.
The fixture adheres to NEC/CEC standards, offers IP66 ingress protection, and has NEMA 4X ruggedness. It is certified for hazardous locations (Class I, Zone 1/Division 1; Class II, Division 1; Zone 2) and supported by UL-related certification reports and installation sheets to ensure regulatory alignment.
The 14W LED design reduces energy consumption compared with incandescent equivalents (100–200W incandescent equivalent), while the rugged copper-free aluminum housing and heat-resistant globe extend service life in harsh environments. Lower maintenance, fewer replacements, and energy savings translate to a favorable total cost of ownership over the fixture’s lifetime.
