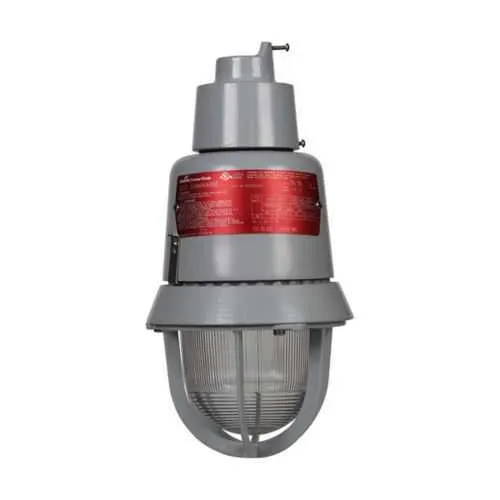

Eaton EVLEDA3C201 LED Light Fixture - IP66, 4X

Part Number: EVLEDA3C201
EVLEDA3C201
Manufacturer
Eaton Crouse-Hinds
Part number
EVLEDA3C201
Category

Quick Summary

EVLEDA3C201 LED Light Fixture is designed to illuminate hazardous industrial spaces with reliable, energy-efficient performance. This lighting solution from Eaton Crouse-Hinds delivers robust operation in harsh environments, reducing maintenance and downtime in critical areas. Contractors and maintenance teams often struggle with fittings that fail under dust, vibration, or water exposure; this unit’s IP66 and NEMA 4X ratings address those risks head-on. Certified for Hazardous/Classified Locations, Class I Division 1/Zone 1, and NEC/CEC standards, it helps you meet strict safety regulations while maximizing uptime. The Cool White output, 1500 lumens at 15W, and strong power factor support safer, more productive facilities and lower operating costs.

Product Information

Extended Description

EVLEDA3C201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free aluminum, Pendant mount, >0.90 power factor, 1", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDA3C201
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276272965
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Pendant
Trade size
1"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDA3C201 3D drawing Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EV LED catalog page EV LED Explosionproof LED Light Fixtures UL certification EV LED Explosionproof LED Light Fixtures UL certification EV LED Explosionproof LED Light Fixtures UL certification IF 1562 - Hazard-Gard EV LED Eaton Specification Sheet - EVLEDA3C201
Feature: 15W drive delivering 1500 lumens at up to 100 lm/W. Business Impact: lowers energy costs while maintaining bright task lighting in demanding environments. Application: factory floors, maintenance bays, and outdoor work zones where high efficiency is essential. Feature: Universal 100-277 Vac input with AC drive and PF >0.90. Business Impact: stable lighting performance across electrical disturbances and reduced electrical stress on wiring. Application: plants with mixed power conditions and retrofit projects. Feature: Copper-free aluminum housing with heat and impact resistant glass globe and guard. Business Impact: long service life in vibration-prone, dusty, and washdown environments; minimizes maintenance and replacement costs. Application: chemical plants, refineries, and mining facilities. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: reliable operation in wet, dusty, and corrosive environments; supports regulator compliance and safer operations. Application: hazardous locations requiring ruggedized enclosures. Feature: Pendant mounting with 1" trade size and guard. Business Impact: easy installation and compatibility with standard mounting hardware; reduces installation time and downtime. Application: retrofit or new-build pendant-lit fixtures on structural columns or ceilings. Feature: Cool white color temperature, compatibility with 100-277 Vac, and 1500 lumens. Business Impact: improved visibility for precise inspection tasks; energy-efficient alternative to 100-200W incandescent equivalents. Application: general industrial work areas needing crisp, accurate illumination.

Get a Quick Quote for a Eaton Crouse-Hinds EVLEDA3C201

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLEDA3C201? Enquire Now

FAQs

For hazardous locations, verify NEC/CEC compliance and the unit’s Class I Division 1/Zone 1 ratings. Use the pendant mounting with the 1" trade size and ensure proper clearance, gas- and dust-hazard precautions, and appropriate wiring methods for 100-277 Vac, 50/60 Hz service. The included guard also helps protect the globe in high-traffic areas.
The fixture is a 15W LED with a current draw of 0.06–0.17A, operating on 100–277 Vac at 50/60 Hz. It maintains a power factor greater than 0.90 and outputs about 1500 lumens with a cool white color temperature, suitable for industrial task lighting and safety-critical inspections.
Yes. The product is certified for Hazardous/Classified Locations and NEC/CEC standards, including Class I Division 1 and Zone 1, with an IP66/NEMA 4X enclosure that withstands dust, water jets, and corrosive atmospheres typical of hazardous industrial sites.
LED technology delivers longer life and lower replacement frequency than incandescent equivalents. The copper-free aluminum housing and robust globe guard resist environmental wear, while IP66/NEMA 4X protection reduces field maintenance needs in harsh environments. The result is fewer service calls and lower total cost of ownership over the fixture’s life.
Access UL certification reports, installation instructions IF1562, and the Eaton datasheet from the product downloads: 3D CAD drawings, LED lighting brochure, hazard-gard EV-LED catalog page, and the EVLEDA3C201 specification sheet.
