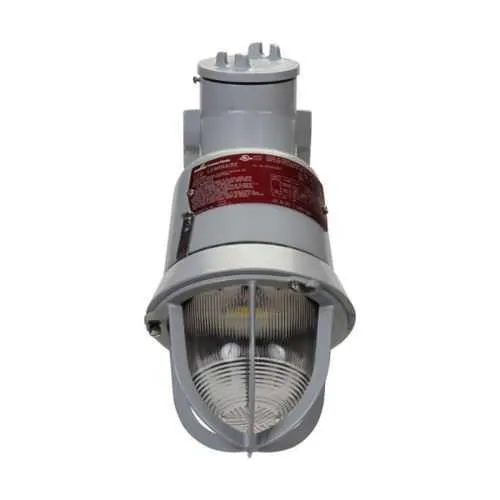

Eaton EVLEDBH2A201 LED Light Fixture - IP66 Hazardous
Part Number: EVLEDBH2A201
Quick Summary
EV LED light fixture is designed to deliver reliable illumination for hazardous industrial locations. Engineers often battle lights that fail in moisture, dust, or corrosive atmospheres, causing costly downtime. This unit meets NEC/CEC requirements and hazardous-location ratings such as Class I Division 1 and Zone 1, plus IP66 and NEMA 4X protection. With 14W and 1600 lumens, it pairs energy efficiency with rugged construction for long life in tough environments. Wildlife-friendly color temperature and a copper-free aluminum body support sustainability goals, while bulkhead mounting and a 3/4" trade size streamline installation in confined spaces.
Product Information
Extended Description
EVLEDBH2A201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.05 - 0.14A, Wildlife friendly, AC drive, Heat and impact resistant glass globe, With guard, 1600 lumens, 118 lm/W, Copper-free aluminum, Bulkhead mount, >0.95 PF, 3/4", 100-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBH2A201
Product Length/Depth
9.25 in
Product Height
15.38 in
Product Width
9.25 in
Product Weight
11.1 lb
UPC
662276578760
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Wildlife friendly
Mounting Method
Bulkhead
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
14W
Amperage Rating
0.05 - 0.14A
Power factor
>0.95
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDBH2A201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDBH2A201
High efficiency illumination yields 1600 lumens from 14W, delivering approximately 118 lm/W with PF > 0.95. This translates to meaningful energy savings and lower cooling loads in industrial facilities, while maintaining high-quality visibility for critical tasks in hazardous zones. The rugged enclosure features IP66 protection and a NEMA 4X rating, guarding against dust, water jets, and corrosion; combined with heat and impact resistant glass and copper-free aluminum, it offers exceptional durability in harsh environments such as offshore, chemical, and wastewater sites. Designed for Class I Division 1 and Zone 1/Zone 2 locations, the luminaire meets NEC/CEC standards and supports compliant electrical installations with a 100-277 VAC drive and AC operation, reducing wiring complexity across sites. The bulkhead mounting and 3/4" trade size simplify retrofits and new builds alike, while the included guard enhances safety in busy industrial spaces. The wildlife-friendly color temperature helps minimize ecological impact without compromising performance, and the equivalent 100-200W incandescent output provides a familiar reference point for specifiers during planning and budgeting. Overall, the EVLEDBH2A201 delivers reliable, maintenance-friendly lighting with a strong total cost of ownership advantage for hazardous-location projects.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBH2A201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDBH2A201?
Enquire Now
FAQs
The EVLEDBH2A201 is designed for bulkhead mounting with a 3/4" trade size. To install, ensure the power is de-energized, verify the mounting surface is clean and aligned, and secure the fixture using the gland or mounting hardware specified for bulkhead installations. Connect the 100-277 VAC supply per local electrical codes, then attach the guard if required. Verify ingress protection and seal integrity after mounting, and test operation. This approach minimizes corrosion exposure and ensures a robust installation in hazardous locations per NEC/CEC guidelines.
The luminaire runs on AC power at 100-277 VAC with a frequency rating of 50/60 Hz. It consumes 14W, draws 0.05 to 0.14 A, and delivers approximately 1600 lumens with an efficacy of about 118 lm/W. The unit has a power factor greater than 0.95, providing efficient power usage and reduced reactive power in industrial networks, which supports energy savings and stable operation in variable electrical environments.
Yes. The EVLEDBH2A201 is rated for Hazardous/Classified Locations with NEC hazardous ratings including Class I, Division 1, and Zone 1 (as well as Zone 2). It also meets NEMA 4X and IP66 protection, making it a robust choice for high-risk environments such as chemical plants, oil and gas facilities, and other areas with explosive atmospheres or severe dust and water exposure.
Compliance is established via NEC/CEC standards for hazardous locations, with Class I Division 1 and Zone 1/2 ratings. The enclosure material and seal provide IP66 protection and a NEMA 4X rating for rugged outdoor use. Local certifications and Canadian or UL listings are referenced in the associated documents, installation sheets, and catalog pages, ensuring reliable performance and regulatory alignment for industrial lighting projects.
Operating at 14W with 1600 lumens and a PF >0.95, the EVLEDBH2A201 reduces energy costs versus incandescent equivalents (100-200W range) while delivering durable performance in harsh environments. The copper-free aluminum construction and tempered glass globe resist corrosion and impact, lowering maintenance needs. The bulkhead design simplifies retrofits and replacements, enabling faster project turnover and predictable lifecycle budgeting, which translates to lower total cost of ownership in hazardous-location applications.
