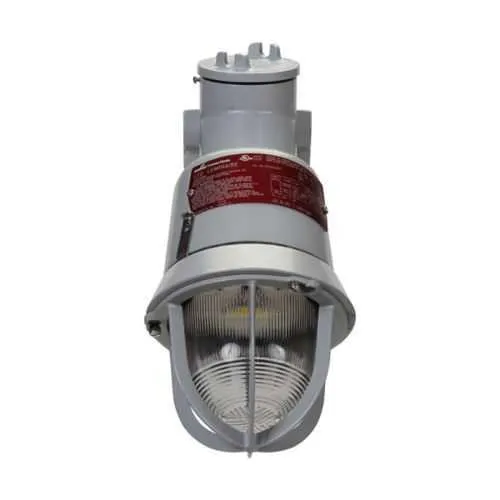

Eaton EVLEDBH2C201/DC LED Bulkhead Light - IP66/NEMA 4X
Part Number: EVLEDBH2C201/DC
Quick Summary
EV LED light fixture provides rugged, energy-efficient illumination for hazardous locations and industrial enclosures. Operators struggle with maintenance-heavy fixtures, corrosion, and ballast dependencies in harsh environments; this design minimizes downtime with a DC drive and a heat- and impact-resistant glass globe. It carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X rugged protection, ensuring safe operation in hazardous/classified locations (Class I Div 1, Zone 1). The 12-24 Vdc input, 15 W power draw, and 1500 lumens at 100 lm/W deliver reliable brightness from a compact bulkhead mount. A guard, copper-free aluminum housing, and a 3/4" trade size simplify installation and retrofit while improving long-term maintenance cycles and total cost of ownership.
Product Information
Extended Description
EVLEDBH2C201/DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.60 - 1.18A, Cool white, DC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free alum, Bulkhead mount, 3/4", 12-24 Vdc, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBH2C201/DC
Product Length/Depth
9.25 in
Product Height
15.38 in
Product Width
9.25 in
Product Weight
11.1 lb
UPC
662276488090
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Bulkhead
Trade size
3/4"
Guard
With guard
Drive type
DC
Voltage rating
12-24 Vdc
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.60 - 1.18A
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDBH2C201/DC 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDBH2C201/DC
DC drive and 12-24 Vdc input reduce ballast dependence, lowering maintenance costs and improving uptime in critical automation loops, especially in hazardous zones. This enables stable performance during voltage fluctuations and supports reliable operation in remote installations. The fixture delivers 1500 lumens at 100 lm/W with cool white light, providing crisp visibility for inspections, alignments, and safety checks in industrial plants. IP66 and NEMA 4X protection guard against dust, water ingress, and corrosion, reducing replacement cycles in chemical processing, mining, and offshore environments. Copper-free aluminum housing plus a heat- and impact-resistant glass globe extend service life in demanding settings, while the integrated guard enhances durability and operator safety. Bulkhead mounting at 3/4" trade size with a protective guard simplifies retrofits and new installations, enabling faster project timelines and lower installation costs. This combination supports lower total cost of ownership through longer service intervals and predictable energy usage, essential for plant-wide reliability programs.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBH2C201/DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDBH2C201/DC?
Enquire Now
FAQs
Installers should plan for bulkhead mounting using the 3/4 inch trade size and ensure appropriate clearance for the IP66 rated enclosure. Wiring should be routed to a 12-24 Vdc supply, with attention to secure connections and enclosure seals to maintain the NEMA 4X/corrosion resistance. The included guard reduces risk of glass impact during service and maintenance.
Yes. The luminaire is designed for Hazardous/Classified Locations with NEC/CEC compliance and supports Class I Division 1, Zone 1 (and Zone 2) ratings. It offers IP66 ingress protection and NEMA 4X housing to withstand harsh industrial conditions typical in petrochemical, refining, and mining operations.
The fixture operates from 12-24 Vdc with a DC drive, drawing 0.60-1.18 A and consuming 15 W. It delivers approximately 1500 lumens at 100 lm/W, emitting cool white light for high-contrast visibility. These specs support predictable energy use and stable performance across voltage variations common in industrial power systems.
Absolutely. The IP66 rating protects against dust and water ingress, while the NEMA 4X housing resists corrosion in aggressive environments. The copper-free aluminum body, combined with a heat and impact resistant glass globe and a protective guard, provides robust durability against mechanical shocks and chemical exposure.
A full set of technical resources is available, including specification sheets, installation instructions, UL certifications, and hazard-rated compliance documents. Access to 3D drawings, LED family literature, and hazard-location catalogs supports project documentation, QA audits, and long-term maintenance planning.
