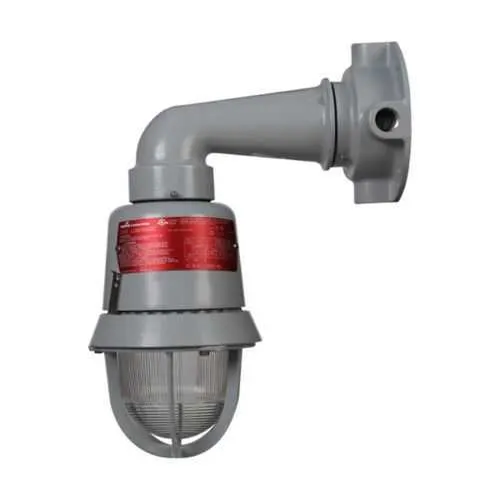

Eaton EVLEDBX2C201 LED Light Fixture - IP66 Hazardous
Part Number: EVLEDBX2C201
Quick Summary
EV LED light fixture from Eaton delivers rugged, reliable illumination for hazardous locations. Many industrial sites struggle with fixtures that fail under dust, moisture, or vibration, leading to costly downtime and safety concerns. This model meets NEC/CEC hazardous location requirements and IP66/NEMA 4X protection to keep lighting uptime high in demanding environments. With universal 100–277 VAC input, 15 W power draw, and 1500 lumens at a cool white color temperature, it combines efficiency with toughness. Ideal for plant-wide upgrades, it supports safer operation and lower maintenance cost while aligning with compliance goals and standard electrical practice.
Product Information
Extended Description
EVLEDBX2C201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free alum, Wall mount, >0.90 power factor, 3/4", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBX2C201
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
7.25 in
Product Weight
11 lb
UPC
662276273566
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Wall
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDBX2C201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDBX2C201
Feature: Hazardous location certification (NEC Class I Division 1, Zone 1, Zone 2; Class II Division 1) ensures regulatory compliance and safer operation. Business Impact: Reduces risk of non-compliance fines and incidents, enabling uninterrupted production in chemical plants and refineries. Application: Suitable for oil & gas facilities, petrochemical plants, and other hazardous environments. Feature: IP66 and NEMA 4X enclosure with heat and impact resistant glass globe and guard. Business Impact: Superior ingress protection and durability against washdowns and harsh weather, extending service life and reducing replacement cycles. Application: Outdoor yards, washdown areas, and harsh industrial zones. Feature: Universal drive and electrical compatibility (AC, 100–277 VAC, 50/60 Hz) with 15 W power consumption and 0.06–0.17 A draw. Business Impact: Simplifies wiring, lowers energy costs, and minimizes spare parts, delivering quick ROI on upgrades. Application: Retrofit projects and new installations in varied facilities. Feature: Copper-free aluminum housing and wall-mount design with 3/4" trade size. Business Impact: Lightweight yet robust construction offers easier installation and corrosion resistance for long-term reliability. Application: Wall-mounted uplights or low-profile hazardous area luminaires in constrained spaces. Feature: 1500 lumens, 100 lm/W, cool white color temperature, and >0.90 PF. Business Impact: High-clarity illumination improves worker safety and process visibility while reducing cooling and energy charges. Application: General area lighting, task lighting in hazardous locations. Feature: Equivalent luminaire rating of 100–200 W incandescent. Business Impact: Facilitates cost-effective upgrades by matching perceived brightness and lighting levels during conversion to LED. Application: Legacy systems replacing incandescent fixtures in hazardous zones.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBX2C201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDBX2C201?
Enquire Now
FAQs
Installers should follow NEC/CEC guidelines for Class I Division 1, Zone 1, and Zone 2 environments. Mount the unit on a wall using the 3/4 inch trade size, connect to 100–277 VAC supply, and verify IP66/NEMA 4X enclosure protection. Use the guard with the unit and ensure all wiring is properly sealed to maintain hazardous-location integrity.
The fixture runs at 15 W with a current draw of 0.06–0.17 A, input voltage 100–277 Vac, 50/60 Hz, color temperature Cool white, 1500 lumens, and a power factor greater than 0.90. These specs support energy efficiency, stable operation, and compatibility with a wide range of electrical systems.
Yes. The unit is certified for Hazardous/Classified Locations with NEC Class I Division 1, Zone 1 and Zone 2 ratings, plus IP66 and NEMA 4X protection. Its copper-free aluminum housing and guard enhance durability in wet, dusty, or corrosive industrial settings typical of oil, gas, and petrochemical operations.
The EVLEDBX2C201 carries NEC/CEC standards for hazardous locations, UL listings, and a hazardous rating that supports Class I Division 1, Zone 1, Zone 2, and Class II Division 1 usage. It also features IP66 ingress protection and NEMA 4X enclosure protection for rugged reliability in demanding environments.
LED technology delivers longer service life and lower maintenance compared with legacy incumbents, while consuming only 15 W versus higher-wattage incandescent fixtures. The universal input reduces wiring complexity and spare parts, lowering lifecycle costs. Upgrading to EVLEDBX2C201 also improves safety through higher-quality illumination in hazardous locations.
