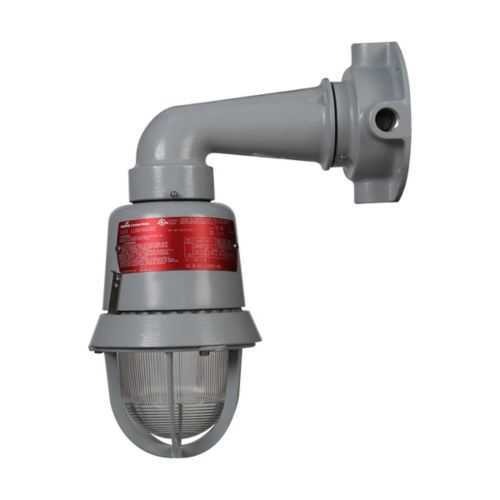

Eaton EVLEDBX2C201R LED light fixture - IP66 Hazardous
Part Number: EVLEDBX2C201R
Quick Summary
The Eaton EVLEDBX2C201R LED light fixture delivers reliable illumination for hazardous-location environments in industrial facilities. Facility downtime and safety concerns in explosive atmospheres demand rugged, maintenance-friendly lighting that won’t fail when it matters. With IP66 protection, NEMA 4X enclosure, and NEC/CEC hazardous-location approvals (Class I/Zone 1 and Class II/Division 1), it meets stringent industry standards. This wall-mounted solution runs on 100-277 VAC, consumes 15W, and delivers about 1500 lumens with a PF >0.90, balancing performance with long-term reliability. For plant managers, the result is safer work areas, fewer replacements, and reduced energy and maintenance costs in demanding environments.
Product Information
Extended Description
EVLEDBX2C201R Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, Red globe, 1500 lumens, 100 lm/W, Copper-free aluminum, Wall mount, >0.90 PF, 3/4", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBX2C201R
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276470460
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 1 Class I, Division 1 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Wall
Trade size
3/4"
Guard
With guard
Drive type
AC
Light/lens color
Red
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDBX2C201R
IP66 protection and a NEMA 4X enclosure give the EVLEDBX2C201R a rugged, washdown-ready profile that minimizes maintenance cycles in harsh environments. Business impact: lower replacement rates and fewer unplanned outages in chemical plants, oil rigs, and other hazardous locations. Application: hazard-gard lighting where reliability and ease of cleaning are critical. The luminaire delivers 1500 lumens at 15 watts with a power factor above 0.90 and a 50/60 Hz drive, translating to energy efficiency and stable light quality across shifts. This reduces utility costs while maintaining consistent illumination for worker safety and process control. The copper-free aluminum housing, heat- and impact-resistant glass globe, and built-in guard enhance durability, resisting corrosion and accidental damage during maintenance or equipment movement. Application: outdoor enclosures and high-traffic industrial spaces. With 100-277 VAC operation and a 3/4" trade size, installation is versatile, enabling quick retrofits and straightforward integration with existing electrical infrastructure. The red globe provides visibility cues in restricted zones without compromising protective performance. Overall, the EVLEDBX2C201R supports compliance and uptime while delivering a predictable lifecycle cost for facilities managers.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBX2C201R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDBX2C201R?
Enquire Now
FAQs
Install as a wall-mounted unit using a 3/4" trade size enclosure. Ensure proper power is supplied within 100-277 VAC, connect per NEC/CEC guidelines, and mount the fixture with the built-in guard for added protection. Follow installation sheets IF1562 for Hazard-Gard EV LED guidance.
The luminaire operates at 15W with an amperage range of 0.06–0.17 A, on a 50/60 Hz 100-277 VAC supply. It produces about 1500 lumens at a cool white color temperature, with a power factor greater than 0.90 for efficient power use.
Yes. It carries NEC/CEC compliance, IP66 protection, and a NEMA 4X enclosure suitable for Hazardous/Classified Locations including Class I, Zone 1 and Class II, Division 1 deployments, ensuring safe operation in volatile atmospheres.
Yes. The EVLEDBX2C201R ships with a guard and a red globe, with copper-free aluminum housing and heat- and impact-resistant glass. The red globe provides visual signaling while maintaining robust protection in hazardous areas.
The 15W LED delivers long life and low maintenance compared to incandescent equivalents, reducing replacement and energy costs over time. High PF and durable construction minimize downtime, making it a cost-effective choice for ongoing hazardous-location lighting investments.
