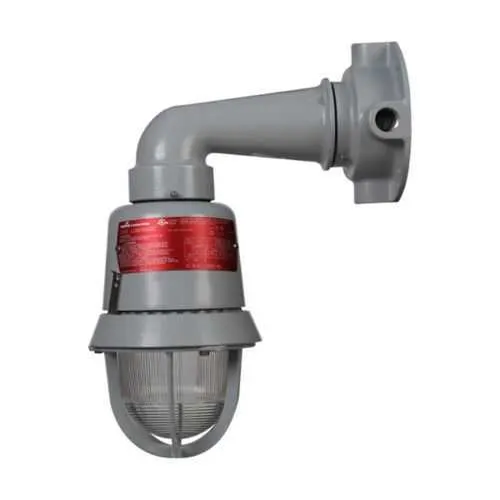

Eaton EVLEDBX2C701 LED Fixture - IP66 Hazardous Location

Part Number: EVLEDBX2C701
EVLEDBX2C701
Manufacturer
Eaton Crouse-Hinds
Part number
EVLEDBX2C701
Category

Quick Summary

EVLEDBX2C701 LED Fixture from Eaton Crouse-Hinds delivers reliable, high-visibility lighting for hazardous locations. Maintenance downtime and noncompliant illumination in these areas can trigger safety risks and costly outages. It provides IP66 sealing, a NEMA 4X enclosure, and NEC/CEC hazardous-location approvals (Class I Division 1, Zone 1, Zone 2; Class II Division 1) to simplify regulatory compliance. Wall-mounted and designed for 100–277 Vac operation with cool white light at up to 97 lumen per watt, it reduces energy use while delivering long service life. The unit's wall-mount design and 3/4" trade size simplify installation, while the guard-enabled glass globe adds extra safety in harsh environments. With its copper-free aluminum body and robust finish, asset uptime improves and maintenance cycles shrink. This combination supports safer, compliant, and cost-effective lighting for industrial facilities like chemical plants, refineries, and water treatment sites.

Product Information

Extended Description

EVLEDBX2C701 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.11 - 0.30A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 2900 lumens, 97 lm/W, Copper-free aluminum, Wall mount, >0.90 power factor, 3/4", 100-277 Vac, 30W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBX2C701
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
7.25 in
Product Weight
11 lb
UPC
662276289369
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Wall
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
30W
Amperage Rating
0.11 - 0.30A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
70-100W HID
Eaton Crouse-Hinds EVLEDBX2C701 3D drawing Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EV LED catalog page EV LED Explosionproof LED Light Fixtures Canadian certification EV LED Explosionproof LED Light Fixtures Canadian certification EV LED Explosionproof LED Light Fixtures Canadian certification IF 1562 - Hazard-Gard EV LED Eaton Specification Sheet - EVLEDBX2C701
Feature: LED performance and electrical specs include 30W, 2900 lumens, 97 lm/W, 100–277 Vac, 50/60 Hz with AC drive. Business Impact: High efficiency reduces energy costs and cooling load, improving total cost of ownership in continuous-operation facilities. Application: Ideal for hazard-prone areas in chemical plants and refineries seeking reliable LED replacement for HID systems. Feature: Robust housing and optics with copper-free aluminum, heat and impact resistant glass globe, and guard. Business Impact: Superior durability in washdown and harsh environments minimizes maintenance cycles and downtime. Application: Explosive-proof style lighting suitable for Class I/II environments. Feature: IP66 protection and NEMA 4X enclosure. Business Impact: Enhanced ingress protection against dust, water, and corrosion extends service life in outdoor or coastal facilities. Application: Outdoor switchgear rooms, loading docks, and outdoor process areas.Feature: Wall mounting with 3/4" trade size and 100–277 Vac compatibility. Business Impact: Simplified installation and cross-system compatibility reduce project lead times. Application: retrofit projects and new builds in industrial plants where space constraints exist.Feature: LED performance versus HID equivalence (70–100W HID). Business Impact: Energy savings, reduced ballast maintenance, and longer life contribute to lower operating costs. Application: Upgrading legacy HID sites to LED lighting while maintaining illumination levels.

Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBX2C701

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLEDBX2C701? Enquire Now

FAQs

The EVLEDBX2C701 is designed for wall mounting with a 3/4 inch trade size. It operates on 100–277 Vac and features an AC drive, making it straightforward to retrofit legacy HID sites or install in new hazardous-location projects while minimizing wiring changes and downtime.
Key specs include 30W power, 0.11–0.30 A current range, 50/60 Hz frequency, 100–277 Vac voltage, and a power factor greater than 0.90. It outputs approximately 2900 lumens at around 97 lm/W, suitable for replacing 70–100W HID luminaires.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance, including Class I Division 1, Zone 1 and Zone 2, plus Class II Division 1. It also carries a NEMA 4X rating and IP66 ingress protection for robust field conditions.
LED technology provides longer service life and lower maintenance compared to HID options. With durable copper-free aluminum, heat-resistant glass, and a guard, it reduces replacement frequency, minimizes ballast-related failures, and lowers total cost of ownership in demanding environments.
Absolutely. The unit meets NEC/CEC standards for hazardous locations and carries relevant hazardous-location ratings. Its IP66/NEMA 4X protection, plus robust enclosure and globe construction, supports compliant installation in Class I/II areas, aiding faster approvals and a safer, more traceable lighting solution.
