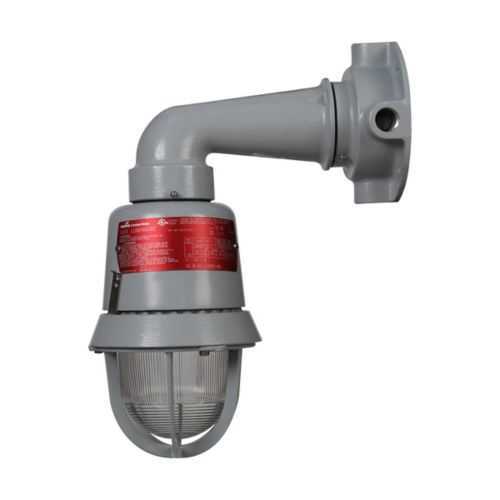

Eaton EVLEDBX2W701 LED Light Fixture - IP66
Part Number: EVLEDBX2W701
Quick Summary
EVLEDBX2W701 LED light fixture from Eaton Crouse-Hinds delivers reliable hazardous-location illumination for demanding industrial spaces. Its 30W LED, 0.25A draw, and 100–277VAC supply deliver efficient, low-maintenance lighting across 50/60 Hz systems, reducing energy and maintenance costs. In hazardous areas, downtime is often driven by bulb failures and brittle housings; this unit’s copper-free aluminum body, heat and impact resistant globe, and rugged guard minimize failure modes. It carries NEC/CEC compliance and protection ratings for Hazardous/Classified Locations, including Class I Division 1, Zone 1 and Zone 2, plus IP66 and NEMA 4X enclosures. Wall mounting with a 3/4" trade size and a warm-white output further improve site productivity while aligning with retrofit and upgrading initiatives.
Product Information
Extended Description
EVLEDBX2W701 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.25A, Warm white, AC drive, 70-100W HID equiv lumin, 50/60 Hz, Heat and impact resistant glass globe, With guard, Copper-free aluminum, Wall mount, 0.87 power factor, 3/4", 100-277 Vac, 30W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBX2W701
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
7.25 in
Product Weight
14.5 lb
UPC
662276327047
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Warm white
Mounting Method
Wall
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
30W
Amperage Rating
0.25A
Power factor
0.87
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
70-100W HID
Eaton Crouse-Hinds EVLEDBX2W701 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDBX2W701
AC drive and a 30W LED with a 0.25A current deliver efficient power use, enabling lower operating costs and reduced cooling load in compact industrial spaces. This translates to longer LED life and fewer replacements in demanding environments such as chemical processing and mining. The rugged copper-free aluminum housing, heat and impact resistant glass globe, and with-guard design protect against dust, moisture, and mechanical impact, lowering maintenance frequency and downtime. IP66, NEMA 4X protection, and hazardous-location ratings (Class I Division 1, Zone 1/2; Class II Division 1) ensure regulatory compliance and safer operation in harsh spaces, reducing risk and audit friction. The wall-mount configuration, 3/4" trade size, and 100–277VAC input simplify integration with existing electrical infrastructure and standardized conduit work. The warm-white output matches typical HID equivalents (70–100W) for familiar brightness, enabling smooth retrofits without compromising visibility. A PF of 0.87 supports efficient power performance and compatibility with upstream electrical systems in industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBX2W701
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDBX2W701?
Enquire Now
FAQs
The EVLEDBX2W701 is designed for wall mounting with a 3/4" trade size, enabling straightforward installation in restricted spaces common to chemical plants, oil & gas facilities, and mining sites. Its 100-277VAC input supports standard industrial power distributions, while the rugged enclosure protects wiring and components from dust, water, and impacts. For retrofit projects, this fixture aligns with existing conduit layouts and mounting footprints, simplifying replacement of HID fixtures without major electrical revisions.
EVLEDBX2W701 carries NEC/CEC compliance and Hazardous/Classified Locations ratings, including Class I Division 1, Zone 1, Zone 2, and Class II Division 1. It is IP66 and NEMA 4X rated, ensuring ingress protection against dust and water in harsh environments. These certifications help buyers meet stringent safety, environmental, and industry-specific standards, reducing compliance risk during audits and installations.
Yes. The EVLEDBX2W701 is explicitly rated for Class I, Division 1 locations and Zone 1/2, along with Class II Division 1, providing robust protection for explosive atmospheres. Its rugged, copper-free aluminum housing, heat-resistant globe, and guard are designed to withstand corrosive and demanding conditions typical of petrochemical and mining facilities, supporting compliant, continuous operation.
Replacing HID with the EVLEDBX2W701 yields notable energy savings due to its 30W LED draw and 0.25A current, along with a 0.87 power factor for efficient power use. Long-life LEDs reduce maintenance intervals and lamp replacements, cutting downtime and labor costs. The fixture’s durable construction also lowers replacement cycles in harsh environments, delivering lower total cost of ownership over its service life.
Plan for a wall-mounted installation with a 3/4" trade size and 100-277VAC supply to match the fixture’s input range. Ensure proper anchoring and junction box access for safe wiring in hazardous locations, accounting for required enclosure integrity (IP66/NEMA 4X) and any local permit requirements. Consider ambient temperature and enclosure cooling, since the 30W LED operates efficiently within standard industrial HVAC parameters.
