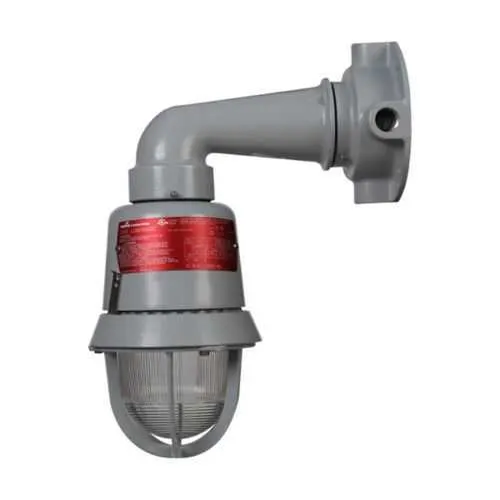

Eaton EVLEDBX3A201 EV LED Light Fixture - Hazardous Locations IP66

Part Number: EVLEDBX3A201
EVLEDBX3A201
Manufacturer
Eaton Crouse-Hinds
Part number
EVLEDBX3A201
Category

Quick Summary

EV LED light fixture by Eaton Crouse-Hinds delivers dependable illumination for hazardous locations. This rugged unit is designed to withstand harsh industrial environments while keeping maintenance to a minimum. Plant operators often struggle with frequent lamp changes, moisture ingress, and downtime; the EVLEDBX3A201 combats these issues with a robust copper-free aluminum body, heat and impact resistant glass, and a wall-mount design with guard. With IP66, NEMA 4X, and NEC/CEC compliance for Hazardous/Classified Locations, it meets critical safety standards while delivering bright, 1600-lumen output at 14 watts. The wildlife-friendly color temperature and high power factor exceed performance expectations, enabling energy-efficient operation in demanding facilities without compromising safety or reliability.

Product Information

Extended Description

EVLEDBX3A201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.05 - 0.14A, Wildlife friendly, AC drive, Heat and impact resistant glass globe, With guard, 1600 lumens, 118 lm/W, Copper-free aluminum, Wall mount, >0.95 power factor, 1", 100-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDBX3A201
Product Length/Depth
12.56 in
Product Height
16.81 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276627857
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 1 Class I, Division 1 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Wildlife friendly
Mounting Method
Wall
Trade size
1"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
14W
Amperage Rating
0.05 - 0.14A
Power factor
>0.95
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDBX3A201 3D drawing Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EV LED catalog page EV LED Explosionproof LED Light Fixtures Canadian certification EV LED Explosionproof LED Light Fixtures Canadian certification EV LED Explosionproof LED Light Fixtures Canadian certification IF 1562 - Hazard-Gard EV LED Eaton Specification Sheet - EVLEDBX3A201
Feature: 14W LED with 1600 lumens and 118 lm/W delivers bright, efficient illumination. Business Impact: Lower energy bills and reduced maintenance due to long-lived LED technology. Application: Wall-mounted lighting in hazardous areas such as chemical plants or refineries where reliability is essential. Feature: Wildlife-friendly color temperature paired with a 0.05–0.14 A draw and PF > 0.95. Business Impact: Consistent lighting quality with minimal harmonic impact and safe coexistence with local wildlife around outdoor facilities. Application: Outdoor platforms, walkways, and perimeters requiring compliant illumination. Feature: Copper-free aluminum housing and heat/impact-resistant glass globe. Business Impact: Superior durability in corrosive or high-impact environments, translating to lower replacement costs and reduced downtime. Application: Industrial yards, loading docks, and washdown zones. Feature: IP66 and NEMA 4X rating with guard. Business Impact: Extreme protection against dust, water ingress, and mechanical damage, enabling reliable operation in washdowns and dusty environments. Application: Hazardous/Classified Locations per NEC/CEC standards. Feature: 100–277 VAC, 50/60 Hz, 1" trade size, and wall mounting. Business Impact: Flexible retrofit and easy installation with broad electrical compatibility, reducing installation time and ballast requirements. Application: New builds and retrofits in facilities with mixed voltage systems. Feature: Equivalent luminaire range 100–200W incandescent. Business Impact: Immediate perceived brightness for operators and safety personnel without overhauling surrounding fixtures. Application: Areas transitioning from incandescent to energy-efficient LED lighting for cost and safety gains.

Get a Quick Quote for a Eaton Crouse-Hinds EVLEDBX3A201

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLEDBX3A201? Enquire Now

FAQs

When installing EVLEDBX3A201, mount it on a wall with the included guard to protect the globe, use a 1" conduit where applicable, and connect to a 100–277 VAC supply at 50/60 Hz. Confirm area classification (Hazardous/Classified Locations) and NEC/CEC compliance for Class I, Zone 1 and related ratings. Ensure appropriate weatherproof sealing and strain-relief for the conduit entry to maintain IP66 protection.
Yes. EVLEDBX3A201 is designed for Hazardous/Classified Locations with NEC/CEC standards, including Class I, Zone 1 and Class I, Zone 2 ratings, as well as Class II, Division 1. It is built to NFPA and UL-based safety criteria, providing reliable operation in hazardous environments while maintaining UL-certified documentation and compliance.
The fixture delivers 1600 lumens at 14 watts with a high efficacy of 118 lm/W and a power factor >0.95, reducing energy consumption and improving power quality. Its long-life LED reduces maintenance intervals, lowering total cost of ownership in demanding facilities such as refineries or chemical plants, while maintaining consistent illumination for safety-critical tasks.
EVLEDBX3A201 is ideal for hazardous-location applications such as oil and gas facilities, chemical plants, mining operations, and other environments requiring IP66 protection and NEMA 4X ruggedness. The wall-mount design with a guard suits walkways, platforms, and outdoor Perimeter areas where durable lighting and wildlife-friendly color temperature are beneficial.
A suite of assets is available, including a 3D CAD drawing package, installation sheets (IF 1562), an Eaton specification sheet, and certification reports. Access catalog pages, the global LED portfolio brochure, and UL/Canadian certifications to support design validation, procurement, and regulatory compliance during project planning and installation.
