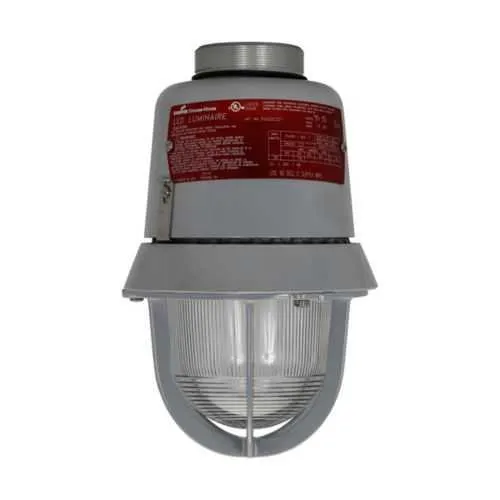

Eaton EVLEDC201/DC EV LED Light Fixture - IP66
Part Number: EVLEDC201/DC
Quick Summary
EVLEDC201/DC is an EV LED light fixture designed for hazardous-location illumination in industrial facilities. It delivers robust, long-lasting lighting in challenging environments, helping reduce maintenance cycles and downtime. The design is built to meet stringent certifications, including NEC/CEC compliance, IP66 ingress protection, and NEMA 4X corrosion resistance, with Class I, Zone 1 and Zone 2 ratings. This combination enables reliable operation where flammable atmospheres or rugged conditions exist. By using a DC drive and compact 12-24 Vdc input, it simplifies power distribution, lowers energy costs, and supports retrofit projects that demand compact form factors, rugged construction, and minimal mounting complexity. Overall, it offers a durable, efficient solution for hazardous-area facilities and process industries.
Product Information
Extended Description
EVLEDC201/DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.60 - 1.18A, Cool white, DC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free alum, No mounting module, 12-24 Vdc, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDC201/DC
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11 lb
UPC
662276283077
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class II, Division 1 Class I, Zone 1 Class I, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
No mounting module
Guard
With guard
Drive type
DC
Voltage rating
12-24 Vdc
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.60 - 1.18A
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDC201/DC
Feature: DC drive and 12-24 Vdc input. Benefit: Simplified power distribution and reduced wiring complexity, enabling seamless integration with existing industrial DC networks. Application: Retrofit projects in chemical plants and mining operations where space is at a premium and reliability is critical. Feature: 15W power, 1500 lumens, 100 lm/W efficiency. Benefit: High efficacy with low energy consumption, driving lower operating costs and cooler operation in demanding environments. Application: Plant floor lighting where long runtimes and minimal heat are essential. Feature: IP66 ingress protection and NEMA 4X enclosure. Benefit: Superior dust, water, and corrosion resistance, delivering longer service life in harsh environments. Application: Outdoor/exposed hazardous locations like oil and gas facilities and washdown areas. Feature: Hazardous location ratings Class I Zone 1/2, Class II Division 1. Benefit: Compliance with rigorous safety standards, reducing regulatory risk and enabling installation in flammable atmospheres. Application: Process industries and chemical plants requiring certified luminaires. Feature: Guard and heat/impact resistant glass globe. Benefit: Enhanced physical protection against impacts and vandalism, minimizing maintenance and replacement costs. Application: Remote or high-traffic installations where accidental impacts are likely. Feature: Copper-free aluminum housing. Benefit: Lightweight yet rugged construction with improved corrosion resistance, lowering lifecycle costs in aggressive environments. Application: Marine facilities and chemical processing environments where corrosion resistance matters.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDC201/DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDC201/DC?
Enquire Now
FAQs
EVLEDC201/DC is designed around a 12-24 Vdc input with a DC drive, supporting typical industrial DC networks. The 0.60–1.18 A range accommodates standard control power budgets, enabling straightforward wiring to centralized DC rails or local drivers without extensive reconfiguration.
The luminaire carries NEC/CEC compliance with Hazardous/Classified Locations approvals, including Class I Zone 1/2 and Class II Division 1, plus IP66 ingress protection and a NEMA 4X enclosure. These ratings validate safe operation in flammable atmospheres and corrosive industrial environments.
Yes. With an equivalent brightness of 100-200W incandescent and 1500 lumens at just 15W, it delivers similar illumination at markedly lower energy use. Its compact size, 12-24 Vdc drive, and guard option ease retrofit in confined spaces while meeting harsh-location standards.
Without a mounting module, installation is simplified but still requires proper mechanical support and compliance with enclosure ratings. The guard option provides added protection in hazardous spaces, and the copper-free aluminum housing supports durable, corrosion-resistant installations in demanding environments.
Expect lower operating costs from 15W energy use and reduced maintenance due to a long service life and rugged build. The IP66/NEMA 4X protections, heat-resistant globe, and guard design minimize outages and replacement needs, delivering favorable total cost of ownership in hazardous-location facilities.
