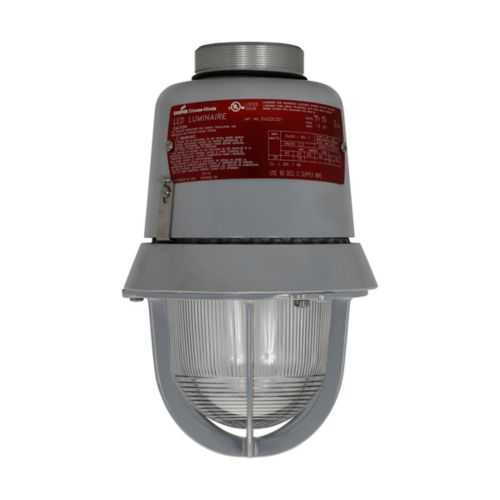

Eaton EVLEDC201R LED Light Fixture - IP66 Hazardous
Part Number: EVLEDC201R
Quick Summary
EV LED light fixture is a rugged illumination solution for hazardous locations in industrial environments. Maintenance downtime and non-compliant lighting in harsh zones drive costs; this model delivers long life, robust housing, and straightforward installation to minimize outages. Certified for Hazardous/Classified Locations with NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X rating, it supports safe operation in demanding conditions. With 100-277 VAC operation, 15W consumption, 1500 lumens, and a power factor above 0.90, it combines efficiency with reliable visibility. Industrial engineers benefit from cool white light, copper-free aluminum housing, and a glass globe engineered for heat and impact resistance. Designed for retrofit and new installations, it eliminates mounting modules and offers dependable Hazard-Gard LED illumination across the plant.
Product Information
Extended Description
EVLEDC201R Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, Guard, Red globe, 1500 lumens, 100 lm/W, Copper-free alum, No mounting module, >0.90 PF, 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDC201R
Product Length/Depth
7.25 in
Product Height
12.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276625907
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class I, Zone 2 Class I, Zone 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
No mounting module
Guard
With guard
Drive type
AC
Light/lens color
Red
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDC201R
Feature: Copper-free aluminum housing with a heat and impact resistant glass globe. Business impact: Extends fixture life in corrosive environments, reducing replacement cycles and maintenance costs for chemical plants and mining operations. Application: Outdoor yards and wet production areas where rugged protection matters. Feature: AC drive with 50/60 Hz compatibility and a wide 100-277 VAC range. Business impact: Simplifies inventory, accelerates commissioning, and lowers electrical retrofit complexity across facilities. Application: Retrofit projects and new installations spanning multiple lineups and zones. Feature: Guard included and red lens option for quick visibility in busy plant spaces. Business impact: Enhanced safety signaling reduces misreads during shift changes and improves emergency readiness. Application: Industrial processing floors and hazardous zones with high traffic. Feature: 15W power, 1500 lumens, and PF > 0.90. Business impact: Low energy consumption delivers measurable energy-cost savings while maintaining bright, consistent illumination. Application: Long-running hazard zones where dependable light quality is critical. Feature: No mounting module required and copper-free aluminum construction. Business impact: Faster installation, fewer parts to manage, and robust performance in corrosive environments. Application: New builds and retrofit projects in chemical, oil & gas, and mining facilities. Feature: IP66 and NEMA 4X ratings with NEC/CEC compliance. Business impact: Ensures regulatory alignment and protection against dust, water, and corrosion, reducing compliance risk. Application: Hazardous classifications and industrial environments demanding durable protection.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDC201R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDC201R?
Enquire Now
FAQs
EVLEDC201R is designed for hazardous locations with NEC/CEC compliance and IP66/NEMA 4X protection. It uses a copper-free aluminum housing and a guard, with no mounting module required, simplifying retrofits and new installations in Class I/Division 1, Zone 1/2 and equivalent locations.
The fixture operates at 100–277 VAC, 50/60 Hz, draws 0.06–0.17 A, consumes 15 W, provides ~1500 lumens, and achieves a PF > 0.90. This combination supports efficient operation and stable lighting in demanding environments.
Yes. The EVLEDC201R is designed for universal AC input from 100 to 277 VAC and supports both 50 Hz and 60 Hz systems, enabling wide compatibility across facilities and reducing stock variety for maintenance teams.
It carries NEC/CEC standards, IP66 ingress protection, and NEMA 4X enclosure ratings, with Hazardous/Classified Locations area classifications (Class I, II; Zone 1, 2). These certifications support safe operation in Explosion-Proof and hazardous environments.
The 15 W LED with long-lifecycle performance reduces replacement frequency and maintenance visits. Copper-free housing, robust glass globe, and high PF contribute to energy savings and lower total cost of ownership in hazardous-area facilities.
